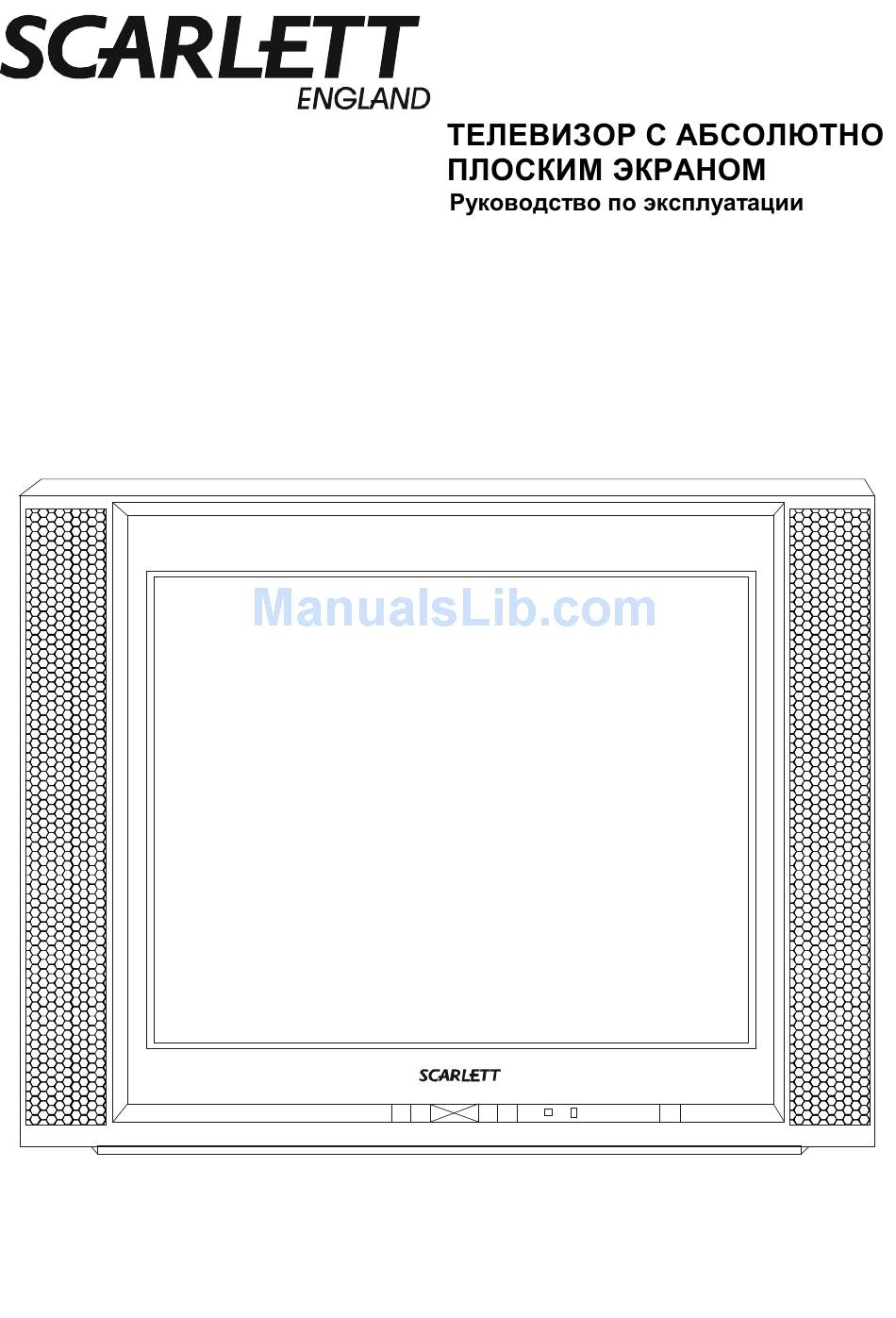

- Page 1 COLOR TELEVISION WITH PURE FLAT SCREEN Instruction manual SC- TV2108PF...
-
Page 2: Table Of Contents
Dear customer! Thank you for buying a Scarlett television. Before operating the unit, please read this manual thoroughly, and retain it for future reference. TABLE OF CONTENTS TABLE OF CONTENTS .........................2 IMPORTANT SAFEGUARDS......................3 PREPARATION..........................4 REMOTE CONTROL ........................5 FRONT PANEL CONTROLS (depending on the model)..............6 PRESET MENU ..........................7... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS · Before the first connecting of the appliance check that voltage indicated on the rating label corresponds to the mains voltage in your home. · Do not use the color television for any other purposes than those described in this instruction manual. -
Page 4: Preparation
PREPARATION CONNECTING TO AN AERIAL OR CABLE TELEVISION NETWORK To view television channels correctly, a signal must be received by the set from one of the following sources: - an outdoor aerial; - a cable television network. 1. Connect the aerial or network input cable to the coaxial socket on the rear of the television. -
Page 5: Remote Control
REMOTE CONTROL POWER Power (Stand By) button Press this button to tern the TV on/off. Press any Number Button or PROG-, PROG+ Button, picture and sound will come on within a few seconds. MUTE Mute button Press once to mute the sound, press again to return to previously set sound level. -
Page 6: Front Panel Controls (Depending On The Model)
AV button Press this button to display external video signal such as VCR or CD video player. AV will be displayed on the screen. Press this button again to switch back to TV signal from AV. MENU Menu button Use MENU button for tuning procedure. REVEAL* Display hidden characters. -
Page 7: Preset Menu
MENU 1. Press this button to select menu. PRESET, PICTURE, SYSTEM and TIME menu can be selected cyclically. Preset menu Picture menu System menu Time menu Exit Menu 2. After enters each menu, you can select the item which you will adjust by PROG+ or PROG- buttons, and adjust this item by VOL+ or VOL- buttons. -
Page 8: Time Menu
TIME MENU 1. CLOCK You can adjust the currently time by this item. Press the VOL+ button set hour, and the VOL- button set minute. 2. TIMING If you set the item is TIMING ON, you can set the time of TV ON and TV OFF. 3. -
Page 9: Troubleshooting Guide
To activate the Teletext mode and display the contents page, follow the instructions below: 1. Select the channel providing the Teletext service. 2. Press the ON/MIX button to activate the Teletext mode. The contents page is displayed. 3. Enter the page number you want on the remote control. Your TV searches for the page. 4. - Page 10 Check aerial for broken wires. Re-orient aerial (if indoor type). Adjust fine tuning control. Lines in picture Try different channel, if OK probably station trouble. Check aerial for broken wires. Re-orient aerial (if indoor type). Probably local interference, such as an appliance. Adjust fine tuning control.
-
Page 11: Cleaning
CLEANING 1. Switch off the appliance and unplug from the power supply. 2. Wipe over the cabinet of the appliance using a soft damp cloth. 3. Do not use liquid cleaners or aerosol cleaners. SPECIFICATION Tuner system Voltage synthesized tuner Color picture tube 21²... - Page 12 SCARLETT..........................12 ......................13 ..........................14 ................15 ) .................17 .........................17 ......................18 ........................18 ..........................18 ........................19 ........................19 ) ..........19 .............20 ........................22 ..................22...
- Page 13 · · · · · · · · 5º 40º . · · · · · · · · · · · · · ·...
- Page 14 PROG-, PROG+ PROG-, PROG+, 0,1,..., 9 · · · VCR ( 1,5 ,...
- Page 15 POWER MUTE 5.5M 6.0M 4.5M 6.5M -/-- 99 - PROG +/- PROG+ PROG- VOL+/- P.P.
- Page 16 SLEEP « » LOCK Q.VIEW VCR ( MENU REAVEAL* CONCEAL MODE REAVEAL MODE . REVEAL MODE CONCEAL MODE CONCEAL REAVEAL . SIZE* STOP* CLOCK* INDEX* OFF* ON/MIX* TELETEXT ON MIX MODE TELETEXT OFF SUBPAGE* «0001», «****». SUBPAGE...
- Page 17 : * - · · · · SLEEP) · MENU) · TV/AV) · MUTE) PROG- PROG+. VOL+ VOL-. VOL+ VOL- ( VOL+ VOL- 6,0 , 4,5 , 6,5 5,5 .
- Page 18 VOL+ VOL-. VOL- VOL+ VOL- · PROG+ PROG- VOL+ VOL-. · NTSC SECAM. VOL+ VOL- 4. C VOL+ VOL-. 12:00, 11:58:00. 12:00:00.
- Page 19 · 0-9. -/-- , · PROG+ PROG-. PROG + PROG- · LOCK LOCK · · · · · ON/MIX 100). 1...9 OFF.
- Page 20 · ON/MIX · REVEAL · · STOP · SIZE ·...
- Page 22 21² (54 c ) PAL/SECAM BG/DK NTSC 3,58, NTSC 4,43 RCA ( SCART ( 5º 40º 35% - 80% 150-260 , 50/60...
