Summary of Contents for SPUTNIK MODULAR QUAD VCF/VCA

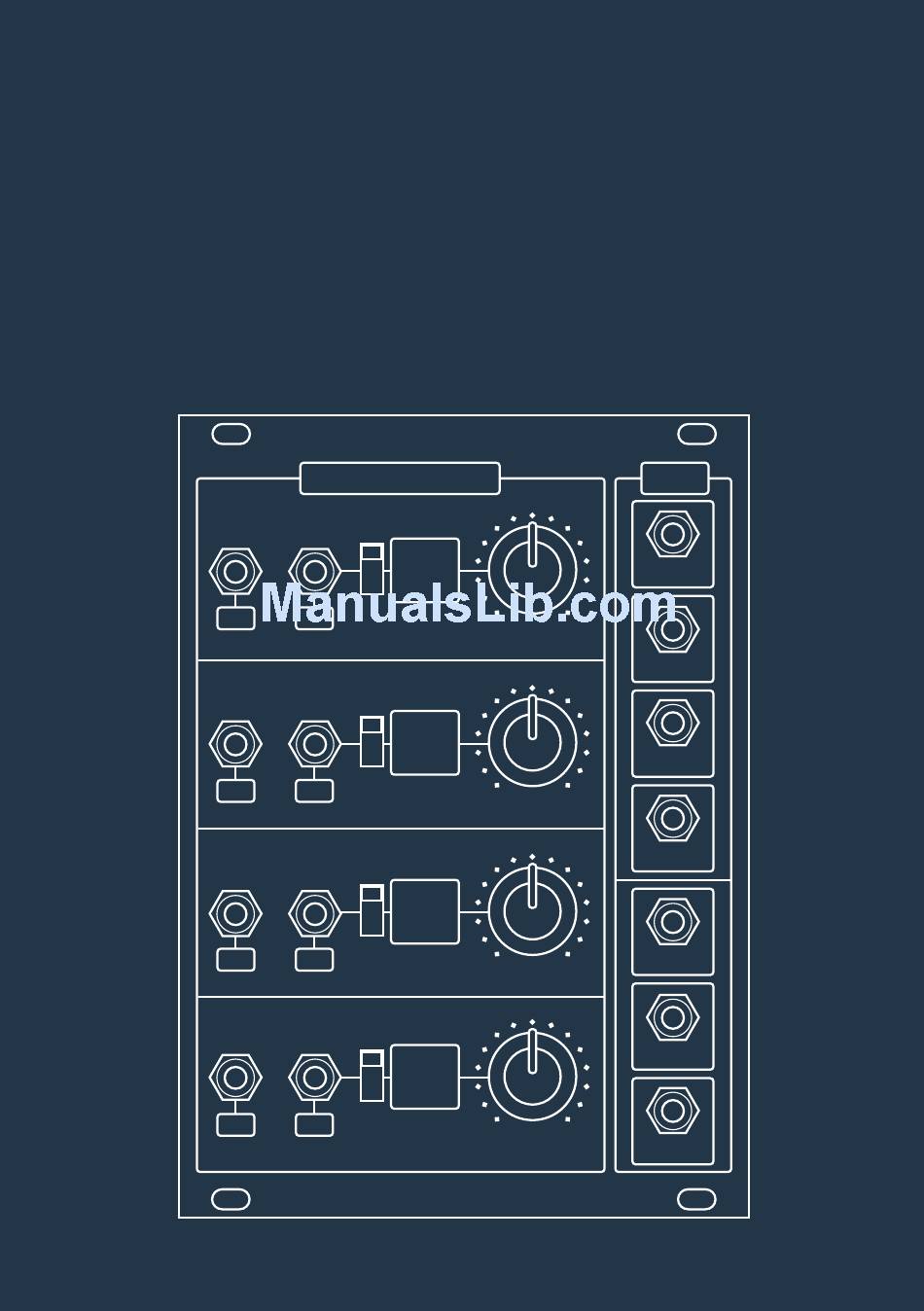

- Page 1 SPUTNIK MODULAR QUAD VCF/VCA MANUAL V.1 QUAD VCF/VCA SIGNAL INPUTS COMBO OUT 1 IN 1 FULL OUT 2 COMBO OUT 3 IN 2 FULL OUT 4 COMBO IN 3 FULL EVEN COMBO IN 4 FULL SPUTNIK MODULAR SPUTNIK-MODULAR.COM...
-
Page 2: Table Of Contents
SPUTNIK MODULAR QUAD VCF/VCA TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION DIAGRAM WARRANTY SPUTNIK-MODULAR.COM... -
Page 3: Specifications
SPUTNIK MODULAR QUAD VCF/VCA SPECIFICATIONS FORMAT: Eurorack DIMENSIONS: 18HP, 28mm deep INTERNAL AND EXTERNAL SIGNALS (3.5mm Jacks): CV: 0-5V, AUDIO: +/-5V MAX CURRENT: +12V: 50mA -12V: 70mA SPUTNIK-MODULAR.COM... -
Page 4: Installation
SPUTNIK MODULAR QUAD VCF/VCA INSTALLATION Remove module from packaging. Power down your modular synthesizer and disconnect the power cable from the wall outlet. Attach the included power cable to the module’s power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case. -
Page 5: Description
SPUTNIK MODULAR QUAD VCF/VCA DESCRIPTION The SPUTNIK QUAD VCF/VCA is a four channel, vactrol-based “lopass” gate with four independent outputs, a mix output, and two sub-mix outputs. Each of the four channels has a selectable switch for VCF, COMBO, and VCA modes. In VCF mode that channel will act as a non-resonant -6db low pass filter with the cutoff frequency controlled by the control knob and... -
Page 6: Diagram
SPUTNIK MODULAR QUAD VCF/VCA SIGNAL INPUTS CV INPUTS 3-WAY MODE SWITCH Accepts any AC-coupled Input for DC-coupled audio signal for processing control voltage (0V to 5V). Switches channel between (line level or 10V CV will control the VCF (low pass filter),... -
Page 7: Warranty
SPUTNIK MODULAR QUAD VCF/VCA WARRANTY This product is covered by the Sputnik Modular warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use –...
