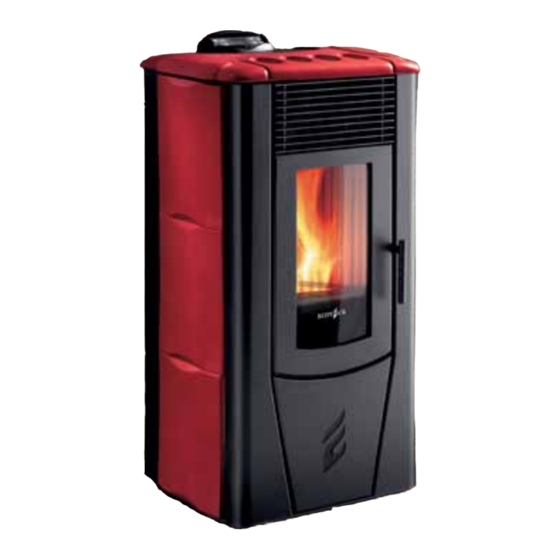

Monica Plus Wood Pellet Burning Heater
Owner's & Installation Manual
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET BURNING ROOM
HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY
INJURY, OR EVEN DEATH.
Contact your local building or fire official about restrictions and installation inspection requirements in your area.
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ecotec Monica Plus
Summary of Contents for Ecotec Monica Plus
- Page 1 Monica Plus Wood Pellet Burning Heater Owner’s & Installation Manual PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.
-
Page 2: Table Of Contents
Owner’s Section Table of Contents Introduction ..................4 Specifications .......................4 Safety Warnings & Recommendations ...............5 Deciding where to locate your wood pellet burning heater ......5 Ash .........................5 Clinkering .......................5 Filling Fuel Hopper ....................5 Flammable Liquids ....................6 Installation ......................6 Operating Instructions ..................7 1.10 Safety Devices .......................7 1.11... - Page 3 Cleaning the fire pot before and after each lighting ........18 Cleaning the FIREX 600 ..................19 Cleaning the combustion chamber ..............20 Cleaning the Flu ....................20 Access to the inspection hatches for cleaning the smoke ......21 Frequency of Component Cleaning ..............21 Cleaning the Ashes Draw ...................22 Guarantee ..................23 Certificate of Guarantee ..................23 Conditions of Guarantee ..................23...
-
Page 4: Introduction
Due to the operating nature of the Monica Plus pellet heater where opening the door causes a loss of vacuum and the fire will shut down completely, meaning the likelihood of any hot embers or burning fuel escaping from the combustion... -
Page 5: Safety Warnings & Recommendations
Safety Warnings & Recommendations Pellet quality is important, please read the following: Your pellet heater has been designed to burn ¼” (6mm) diameter wood pellets, manufactured to the AS/NZS 4014.6 only. DO NOT use this appliance as an incinerator. DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any warranties stated in the manual. -
Page 6: Flammable Liquids
Monica Plus requires a power source to function. This is standard mains feed 240v plug - if this is unavailable in close proximity a grounded extension lead may be used. -
Page 7: Operating Instructions
Operating Instructions The heater is completely automated and will self-regulate the ignition phase, five levels of power and the switching off phase, guaranteeing safe functioning. The burn pot used for combustion allows most of the ashes produced by the combustion of the pellets to fall into the collection drawer. However, it is recommended that you check the burn pot every day, as not all pellets have high standards of quality and could leave residue that is difficult to remove. -
Page 8: Operating Your Pellet Fire
Operating your Pellet Fire Description of the Controls P1 : Turns heat level down P2 : Turns heat level up 20°C P3 : Turns fiire on-off 10:00 20°C P4 : Turns thermostat down P5 : Turns thermostat up P6 : Menu button P7 : Menu button Description of Remote control IR receiver for remote control (12 volts batteries code LRV08 not included). -
Page 9: Description Of Menus
screw/auger is empty), proceed as follows: Turn the stove off completely, using the general switch on the back The display will show FINAL CLEANING and then OFF. Turn the the power back on, using the general switch on the back. Keep button P4 pressed for 2 seconds. -
Page 10: Setting The Clock (Clock Set Menu)
Setting the Clock (Clock Set Menu) To set the clock, proceed as follows: Remove and reset the electric supply of the stove using the general switch on the back. The display will show FINAL CLEANING and then OFF. Keep the P4 button pressed for 2 seconds, CLOCK SET MENU will appear and confirm with the button P6. - Page 11 3.8.1 Description Of The Strings Description Values that can be set START PROG -1 From OFF to 23.50 with step of 10’ STOP PROG -1 From OFF to 23.50 with step of 10’ DAY PROG -1 Between on/off for days 1 to 7 POWER PROG -1 From 1 to 5 SET TAMB PROG -1...
- Page 12 Example If you want the stove to switch ON at 6:00am and switch OFF at 8:30am (Program 1) and you want to set a room temperature of 21°C and to reach such a temperature with Power 3, the steps to follow are: Display this screen as described in the instructions above.
- Page 13 OFF 5 ON FRIDAY THE STOVE WILL NOT BE FRIDAY SWITCHED ON PROG - 1 OFF 6 ON SATURDAY THE STOVE WILL NOT BE SATURDAY SWITCHED ON PROG - 1 OFF 7 ON SUNDAY THE STOVE WILL NOT BE SUNDAY SWITCHED ON PROG - 1 Confirm with button P6 to get into next program.
-
Page 14: Setting The Language (Language Menu)
Setting the Language (Language Menu) To set the language, proceed as follows: Remove and reset the electricity supply of the stove using the general switch on the back. The display will show FINAL CLEANING and then OFF. Keep button P4 pressed for 2 seconds, CLOCK SETTING MENU will appear. Press button P4 twice;... -
Page 15: Stove Status Menu
REMARK: TO ACTIVATE THE OUTER THERMOSTAT, PRESS BUTTON P4 AND THEN REPEATEDLY ON P1 TILL YOU REACH THE SETTING “EST“ ON THE DISPLAY. CONFIRM WITH BUTTON P7. The room temperature will be regulated directly by the wall-mounted thermostat. When the temperature set is reached, the display will show MODULATION WORK: the stove will work then at lower power to reduce the consumptionof the pellet. -
Page 16: Description Of Screen Displays
3.16 Description of Screen Displays SCREEN DISPLAY DESCRIPTION FINAL CLEANING The stove is switching off, the cooling phase is not yet completed The ignition phase has started,the pellets are loaded into fire pot WAITING FOR FLAME The pellet’s are ignited by the hot air passing through the ignition candle FLAME PRESENT The flame is visibile in the fire pot WORKING... - Page 17 • Smoke extractor encoder is not functioning or not correctly • Contact local Service Technician connected FAN BROKEN ALARM • No electricity supply to smoke • Contact local Service Technician extractor • The smoke extractor is blocked • Contact local Service Technician •...
-
Page 18: Maintenance And Cleaning
Maintenance and Cleaning Before carrying out any maintenance take the following precautions: • Make sure that the fire has been turned off, and that the general power supply has been disconnected (Ensure that the plug is disconnected from the socket, thus avoiding accidental electric shocks). •... -
Page 19: Cleaning The Firex 600
Scraper Combustion chamber Fire pot Fire pot grill Ashes drawer Cleaning the FIREX 600 All Ecoteck products have a combustion chamber made with FIREX 600, a material based on vermiculite, the result of research and development by Ecoteck. The main features of FIREX 600 is its resistant to heat, its lightness and its excellent insulating capacities, which improve the combustion and performance of the stove. -
Page 20: Cleaning The Combustion Chamber
Firex 600 does not require special maintenance, it only has to be dusted with a brush to remove the ash that is deposited during combustion. Abrasive sponges to clean the most resistant waste should not be used as they could compromise the thickness of the FIREX600 panel, creating critical points of breakage. -
Page 21: Access To The Inspection Hatches For Cleaning The Smoke
Access to the inspection hatches for cleaning the smoke Remove the pellet heater and release the two screws that secure the hatches to the body of the pellet heater. Clean the inside using a drum type vacuum cleaner. GASKET SCRAPER INSPECTION HATCH (2 ON THE RIGHT SIDE) GASKET... -
Page 22: Cleaning The Ashes Draw
Cleaning the Ashes Draw The ashes drawer must be cleaned every 2 days, depending on the length of time the stove is used and the type of pellet used. To access the drawer, open the door (see figure 1) and extract the ashes drawer (see figure 2). -
Page 23: Guarantee
Guarantee Certificate of Guarantee Ecoteck thanks you for the confidence you have placed in it with the purchase of one of our pellet stoves and invites the purchaser to: - examine the instructions for the installation, use and maintenance of the stove. - examine the conditions of guarantee shown below. -
Page 24: What Are Wood Pellets
What are Wood Pellets? Wood pellets are made from sawdust and wood shavings. The material used cannot contain any foreign substance such as glue, varnish or synthetic substances. Subjecting it to high pressure, the wood is pressed through a plate with holes and due to the high pressure the sawdust is heated activating the natural binders of the wood. - Page 25 Installation Section Table of Contents Dimensions (Ecoteck Monica Plus) ..........26 Deciding where to locate your wood pellet burning heater: ......27 Clearances to Combustibles – Ecoteck Monica Plus Freestanding ....27 Exhaust and Fresh Air Intake Locations ............28 ................29 Installation Dimensions – Monica Plus Freestanding ............29 Clearances &...
-
Page 26: Dimensions (Ecoteck Monica Plus)
Dimensions (Ecoteck Monica Plus) Unit of Measurement Height 1037 Width Depth Weight Diameter of smoke exhaust duct Min.-max. calorific power 5.0 - 6.5 Min.-max. hourly consump- Kg/h 0.99 – 1.43 tion of pellets Electrical power absorbed during operation Supply V - Hz 220 –... -
Page 27: Deciding Where To Locate Your Wood Pellet Burning Heater
Due to the operating nature of the Monica Plus pellet heater where opening the door causes a loss of vacuum and the fire will shut down completely, meaning the likelihood of any hot embers or burning fuel escaping from the combustion chamber is extremely minimal. -
Page 28: Exhaust And Fresh Air Intake Locations
Exhaust and Fresh Air Intake Locations Exhaust Insert Hearth to centre of flue 326mm Side of unit to centre of flue 115mm Centre of unit to centre of flue 137mm Fresh Air Intake Hearth to centre of intake 356mm Side of unit to centre of intake 169mm Centre of unit to center of intake 83mm... -
Page 29: Installation
Installation Dimensions – Monica Plus Freestanding 7,48in 190mm 20,01in 508mm 18,07in 1,69in 459mm 43mm Refer to Safety Test 09/1910 for all clearances to combustible. Clearances & Specifications Minimum clearances shown are in millimetres. All Ecoteck fires are tested to AS/NZS2918:2001. -
Page 30: Minimum Clearance To Combustibles
Positioning the fire: Generally Monica Plus should be installed in a centrally located position within the home. When deciding where to position the appliance in your room you need to consider the following: Location of a power source •... -
Page 31: Internal Standard Flue Kit (50)
Internal Standard Flue Kit (50) Internal Standard Flue Kit This ue kit may be used in new and replacement This flue kit may be used in new and replacement applications in rooms with stud height of 2.4m. The applications in rooms with stud height of 2.4m. overall height of the ue is 3.6m. -
Page 32: External Standard Flue Kit (51)
External Standard Flue Kit (51) External Standard Flue Kit This ue kit may be used in new and replacement This flue kit may be used in new and replacement applications with the ue penetrating the wall behind applications with the flue penetrating the wall the re, running vertically up an outside wall and behind the fire, running vertically up an outside penetrating the so t. -
Page 33: Seismic Restraint
Monica Plus requires a power source to function. This is standard mains feed 240v plug-if this is unavailable in close proximity a grounded extension lead may be used. Monica Plus is to be installed on a non-combustible surface which must have a forward projection of a minimum of 150mm from the glass door. -
Page 34: How To Remove The Side Panels
2.12 How to mount the ceramic side panels. Remove the 2 screws on the top of the back of the stove and remove the pellet lid . Insert the ceramic tiles in the side guide, inserting the rubber spacers as illustrated in the figure. Mount the ceramic top on the top of the stove;... -
Page 35: Seismic Restraint Locations
2.13 Seismic Restraint Locations GASKET INSPECTION HATCH (1 ON THE LEFT SIDE) SEISMIC RESTRAINT LOCATION GASKET INSPECTION HATCH (2 ON THE RIGHT SIDE) SEISMIC RESTRAINT LOCATION... -
Page 36: Installation Data Sheet
Installation Data Sheet Name of Owner: Name of Dealer: ________________________________ ________________________________ Address: Address: ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ ________________________________ Phone: Phone: ________________________________ ________________________________ Model: __________________________ Name of Installer: ________________________________ Serial Number: ____________________ Address: Date of Purchase: __________ (dd/mm/yy) ________________________________ Date of Installation: _________ ________________________________... -
Page 37: Maintenance Record
Maintenance Record DATE WORK CARRIED OUT SIGNATURE...
