Summary of Contents for ecoteck Monica Plus

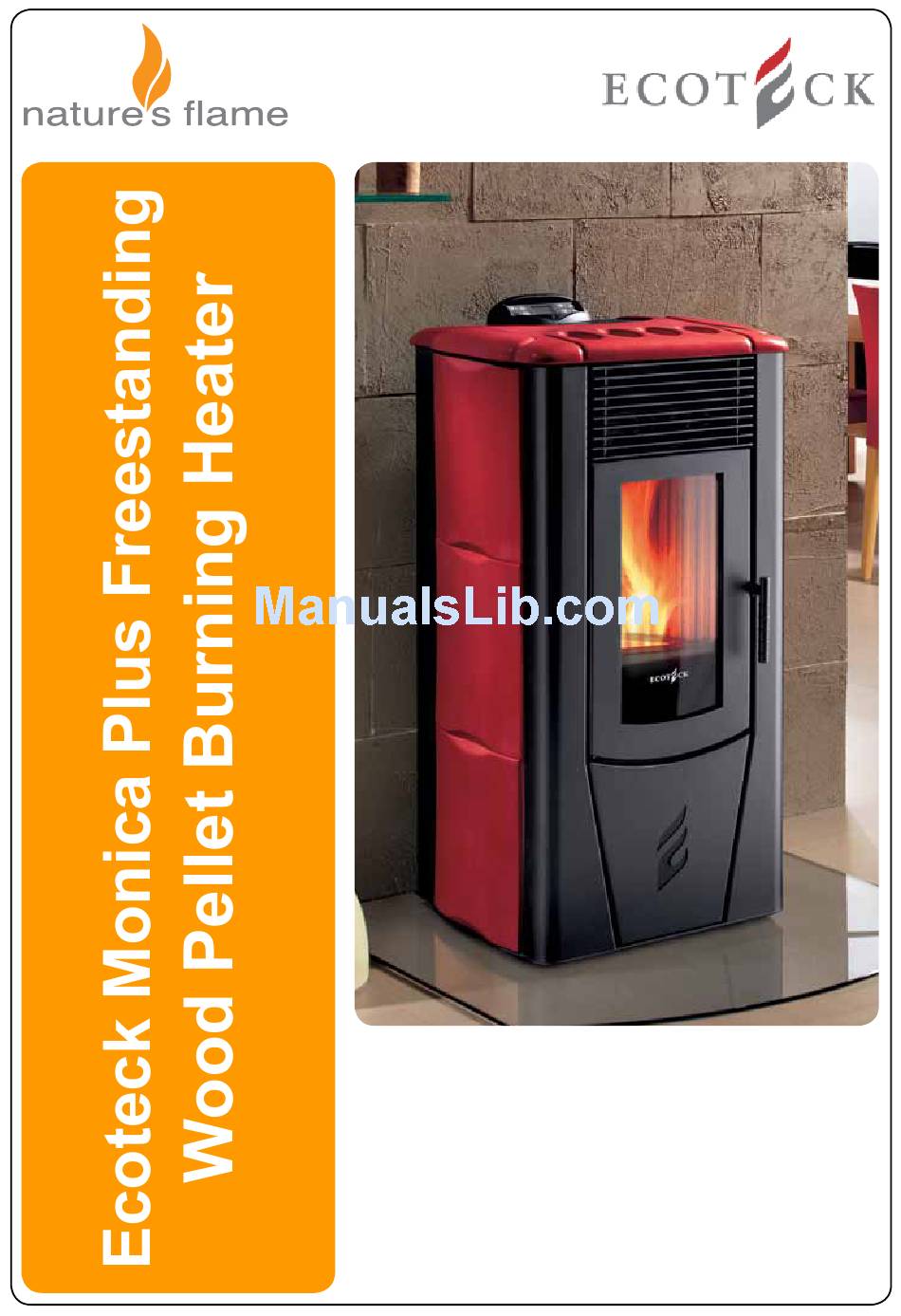

- Page 1 Ecoteck Monica Plus Freestanding Wood Pellet Burning Heater Installation Specifications Safety testing of the EcoTeck Monica Plus Freestanding Wood Pellet Burning Heater to AS/NZS 2918:2001 Report 09/1910...
-
Page 2: Installation
Specifications were correct at time of printing but may alter and those detailed below should be used as a guide only. Refer to the Installation and Operation Manual supplied with every Ecoteck Pellet Fire or if in doubt, consult your Nature’s Flame Retailer. -
Page 3: Minimum Clearance To Combustibles
Positioning the fire: Generally Monica Plus should be installed in a centrally located position within the home. When deciding where to position the appliance in your room you need to consider the following: Location of a power source •... -
Page 4: Internal Standard Flue Kit
Internal Standard Flue Kit (50) Internal Standard Flue Kit This flue kit may be used in new and replacement This ue kit may be used in new and replacement applications in rooms with stud height of 2.4m. applications in rooms with stud height of 2.4m. The The overall height of the flue is 3.6m. -
Page 5: External Standard Flue Kit
External Standard Flue Kit (51) External Standard Flue Kit This ue kit may be used in new and replacement This flue kit may be used in new and replacement applications with the ue penetrating the wall behind applications with the flue penetrating the wall the re, running vertically up an outside wall and behind the fire, running vertically up an outside penetrating the so t. -
Page 6: Flashing Options
Please circle the flashing option to be used. When considering an alternative method please consult your local council. SEISMIC RESTRAINT: All installation scenarios for Monica Plus require the use of hold-down anchors (one on each side) Fixing to Concrete Floor: Minimum M8 expansion anchors (M10 recommended) or min M8 epoxy- set anchors.
