Parts List; Assembly Instructions; To Open And Unfold The Frame; To Attach The Rear Wheels - Redkite push me fusion Instruction Leaflet

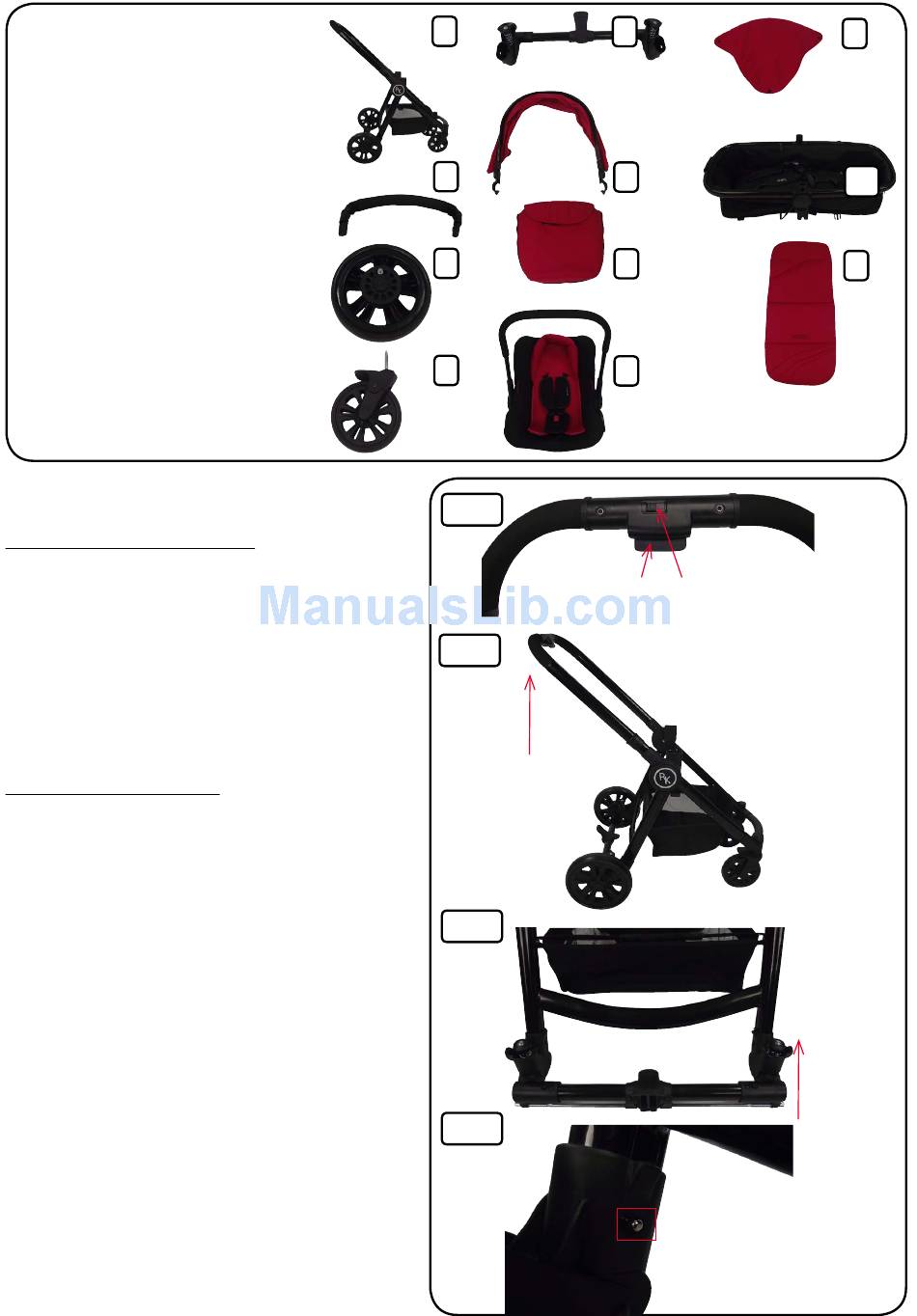

Parts list

1 Frame and basket x 1
2 Bumper bar x 1
3 Rear wheels x 2
4 Front wheels x 2
5 Axle unit x 1
6 Stroller hood x 1
7 Stroller apron x 1
8 Car seat including head hugger
and harness pads
9 Car seat hood x 1
10 Combined seat/cot unit including
harness pads x 1
11 Reversible liner x 1
12 Raincover x 1 (not shown)

Assembly instructions

To open and unfold the frame

Slide the primary lock button to the side,
squeeze the secondary lock trigger (Fig.1) and
lift the handle upwards until the frame locks in
place (Fig.2)
WARNING Ensure that all the locking devices
are engaged before use.

To attach the rear wheels

Push the axle unit onto the back legs (Fig.3)
ensuring the spring buttons have popped
through the holes (Fig.4).
1
2
3
4
Fig 1
2 Secondary lock
Fig 2
Fig 3
Fig 4
5
6
7
8
1 Primary lock
Spring
buttons
9
10
11
Stroller
handle
Back legs
Axle unit
