Summary of Contents for Ubiquiti CRM Point CRM-P

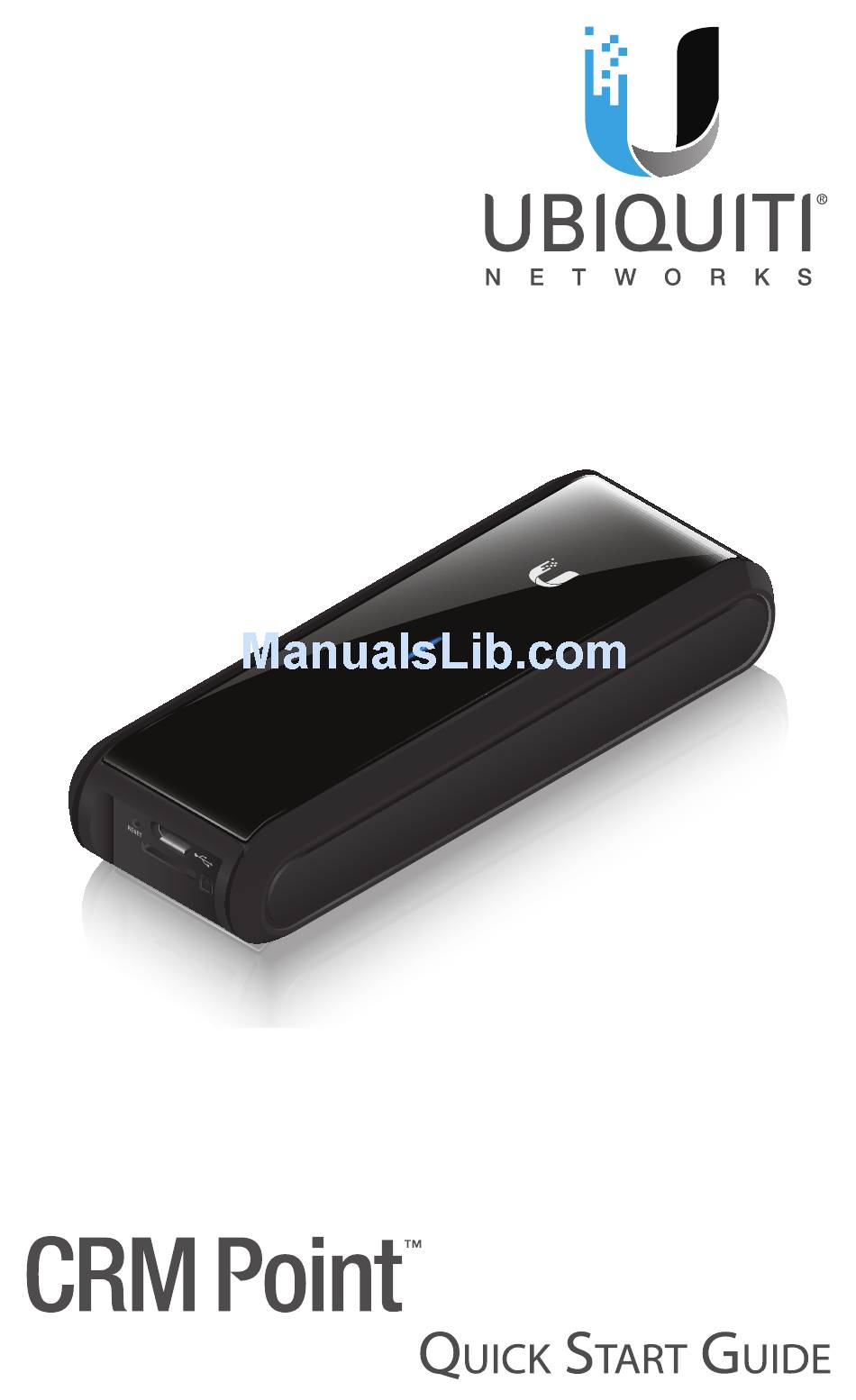

- Page 1 Model: CRM-P...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® CRM Point . This Quick Start Guide is designed to ™ guide you through installation and also includes warranty terms. Package Contents CRM Point Ethernet Cable Model: CRM-P microSD Card Quick Start (8 GB) -
Page 3: Hardware Overview
Hardware Overview Front Panel LED LED Color Status White Factory defaults. Device is busy; do not touch or Alternating unplug it. This usually indicates White/Blue that a process such as a firmware upgrade is taking place. Blue Device is working properly. -
Page 4: Bottom Panel
Ethernet This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by an 802.3af PoE switch, such as the Ubiquiti Networks EdgeSwitch ™ Bottom Panel Reset Button... -
Page 5: Hardware Installation
Hardware Installation 1. Connect the Ethernet Cable to the Ethernet port. 2. Insert the included microSD Card into the microSD Slot. 3. Connect the other end of the cable to a port on a network switch, such as an EdgeSwitch. 24 V... - Page 6 Powering the CRM Point Use an 802.3af switch, such as an EdgeSwitch, or a USB power source (not included). EdgeSwitch The CRM Point can be powered by an EdgeSwitch or other 802.3af-compliant switch. 24 V EdgeSwitch Power Connection Diagram USB Power Source Connect a USB cable (not included) from the CRM Point directly to a USB power source (minimum 5V, 1A).
-
Page 7: Software Installation
DHCP server to see which IP address was assigned to it. You can also discover the CRM Point using the Ubiquiti® Device Discovery Tool, available at https://www.ubnt.com/download/utilities 3. Launch a web browser. In the address field, type http: followed by the IP address of the CRM Point. - Page 8 6. When the upgrade is complete, create a new user account: a. Enter a Username and Password. b. Confirm your password in the Confirm Password field. c. Click Create Account. 7. Enter your Username and Password, and click Sign In to log into the CRM Point.
- Page 9 8. The Discovery page will appear. This page lets you connect devices to the CRM Point. There are two ways to connect to devices: • By IP address • By discovery (scan your network for devices) Note: To connect a device to the CRM Point, both must be on the same Layer-2 network.
- Page 10 To connect by discovery: a. Click Discover to display a list of devices the CRM Point has discovered on your network. b. Select one or more devices that share the same credentials. c. Click Connect. d. Repeat steps a to c to connect additional devices with different login credentials.
-
Page 11: Specifications
Specifications CRM-P Dimensions 21.7 x 43.4 x 121.9 mm (0.85 x 1.71 x 4.80") Weight 110 g (3.88 oz) Networking Interface (1) 10/100/1000 Ethernet Port Buttons (1) Reset to Defaults Power Method 48V 802.3af or Passive PoE (Pairs 4, 5+; 7, 8 Return) Micro-USB Power Supply 802.3af PoE or... -
Page 12: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. -
Page 13: Limited Warranty
(the “Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under... - Page 14 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal.
-
Page 15: Limitation Of Liability
CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be error-free or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s... - Page 16 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province.
-
Page 17: Industry Canada
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to... -
Page 18: Rohs/Weee Compliance Statement
RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. - Page 19 Deutsch Die Europäische Richtlinie 2002/96/EC verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte.
- Page 20 Français La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages.
-
Page 21: Declaration Of Conformity
Declaration of Conformity Česky UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI NETWORKS zařízení, je ve shod se [Czech] základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI NETWORKS enhed, er i overensstemmelse [Danish] med de væsentlige krav og øvrige relevante krav i... - Page 22 UBIQUITI NETWORKS készülék megfelel az alapvető [Hungarian] követelményeknek és más vonatkozó 1999/5/EK irányelv rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og [Icelandic] önnur viðeigandi ákvæði tilskipun 1999/5/EC. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è...
-
Page 23: Online Resources
UBIQUITI NETWORKS, está conforme com os [Portuguese] requisitos essenciais e outras disposições da Directiva 1999/5/CE. Română Prin prezenta, UBIQUITI NETWORKS declară că acest [Romanian] dispozitiv UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivei 1999/5/CE. - Page 24 . u b n t . c o m ©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, CRM Point, and EdgeSwitch are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
