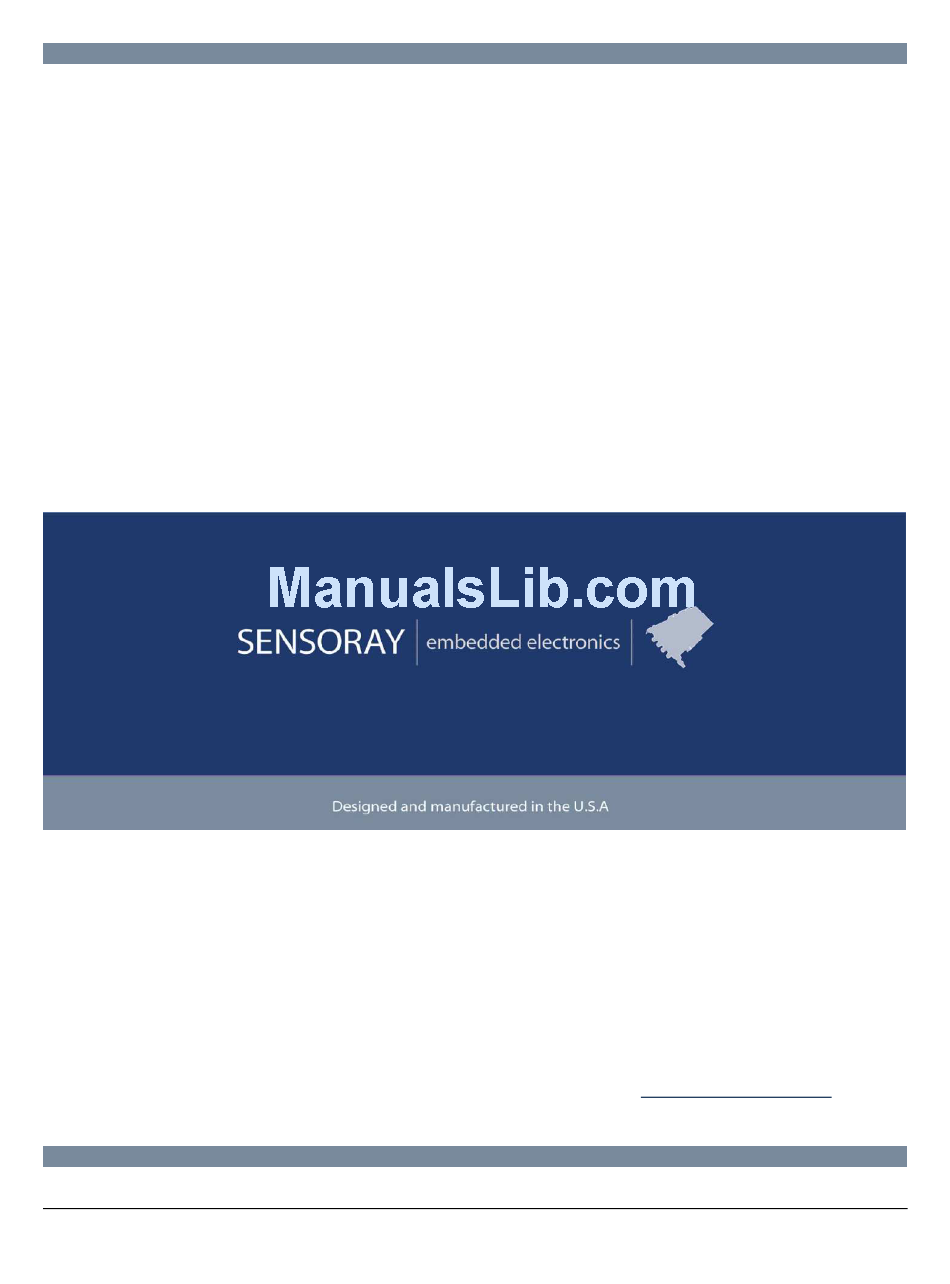

- Page 1 Embeddable Digital Video Recorder Hardware Manual Model 4011 | Ver. 1.1.0 | May 2016 SENSORAY | p. 503.684.8005 | email:info@SENSORAY.com | www.SENSORAY.com 7313 SW Tech Center Drive | Portland, OR 97203...
-
Page 2: Table Of Contents
Table of Contents LIMITED WARRANTY.......................3 INTRODUCTION........................4 CONNECTORS........................5 Video in (J10), video out (J2)...................5 Power (J11)........................5 Audio out (J13).........................5 Keypad (J1/P3).........................5 MENU SYSTEM........................7 Top menu..........................7 Play video........................7 View snapshots......................7 File management......................7 Setup..........................8 SPECIFICATIONS......................10 REVISION HISTORY......................11... -
Page 3: Limited Warranty
Sensoray specifications for two years from the date of shipment to purchaser. Sensoray will, at its option, repair or replace equipment that proves to be defective during the warranty period. This warranty includes parts and labor. -
Page 4: Introduction
An external USB storage device is required for DVR operation. If desired, a second USB storage device may also be connected and the 4011 will simultaneously record to both devices. A common application for this is recording to a removable device while creating an archival copy on a non-removable device. -
Page 5: Connectors
Connectors Video in (J10), video out (J2) Molex 0705530001. Mating part: Molex 0050579402. Signal video ground Power (J11) Molex 0705530002. Mating part: Molex 0050579403. Signal +12 V DC not connected ground Audio out (J13) Molex 0705530003. Mating part: Molex 0050579404. Signal left channel ground... - Page 6 Signal Record/Pause Stop/Back Snapshot Down Menu/OK Common (ground) Context-dependent keyboard functions mapping: Functions Outside of the menu Inside the menu Enter (or Space) Menu Up arrow Rewind by set amount Move 1 line up Down arrow Fast forward by set amount Move 1 line down Escape Stop Back...
-
Page 7: Menu System
Menu system The 4011 is controlled using a keypad or a standard keyboard and the on-screen menu system. Top menu Play video View snapshots File management Setup Play video Selecting “Play video” brings the next menu level: Play from internal Play from external in case both internal and external storage devices are present. -
Page 8: Setup
This selection is available if a firmware file is detected in the root directory of one of the connected storage devices. Please obtain the firmware file s4011.fw from Sensoray and copy it to a USB drive. Update process usually takes about 30 s, after which the... - Page 9 Update custom.zip (*) This selection is available if custom.zip file is detected in the root directory on one of the connected storage devices. Selecting it installs a custom splash screen. The splash screen has to be created as a JPEG file with the name splash.jpg with one of the following resolutions: 720x480 for NTSC systems, or 720x576 for PAL systems.
-
Page 10: Specifications
Specifications Input video Composite, NTSC or PAL, 75 Ohm Output video Composite, NTSC or PAL, 75 Ohm Video compression H.264 High Profile at Level 3 Snapshots compression JPEG Recorded file format Audio Built-in microphone USB ports 3, high speed Power 12 V DC (±... -
Page 11: Revision History
Revision history Version Notes 1.1.0, May 2016 Full form release. 1.0.0, April 2016 Initial short form release.
