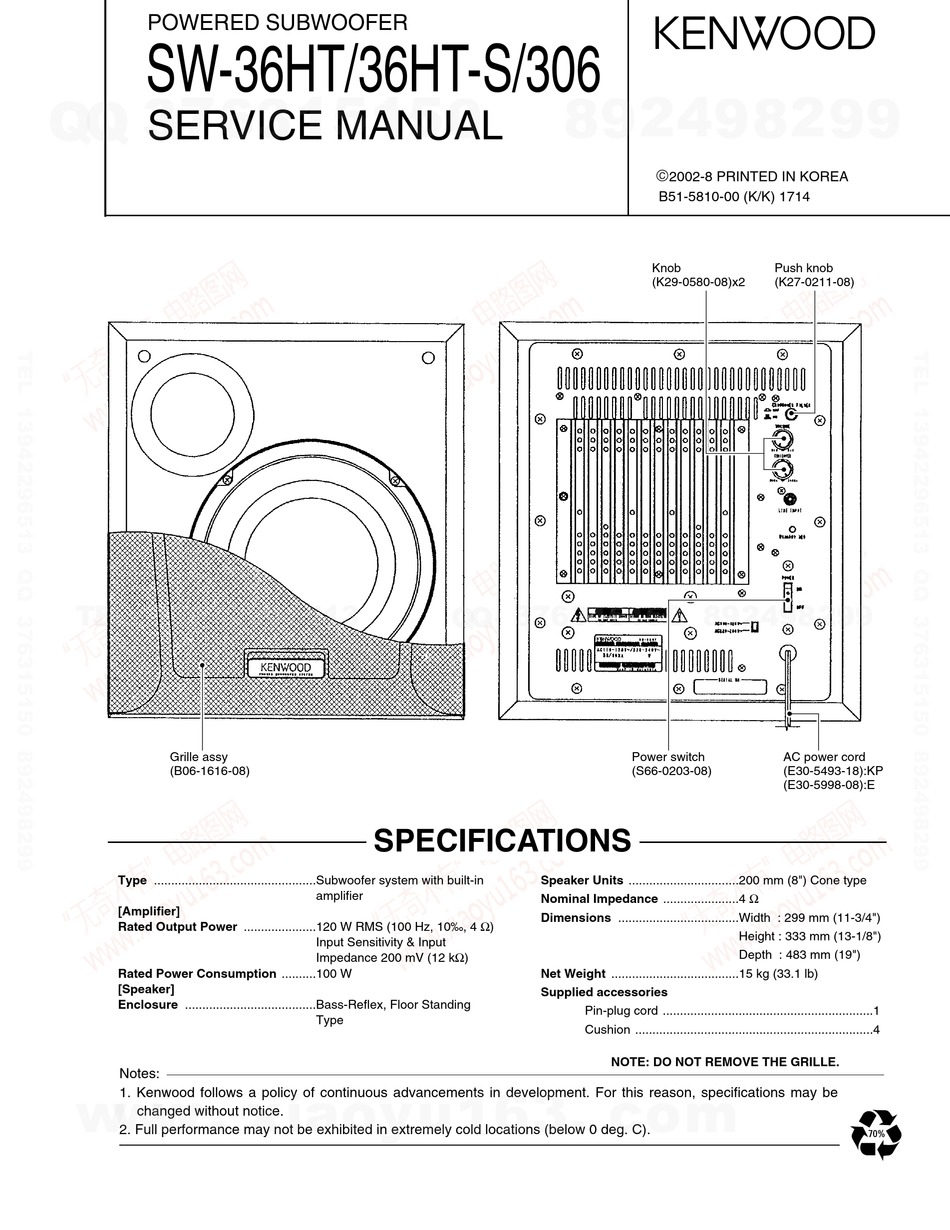

POWERED SUBWOOFER
SW-36HT/36HT-S/306
QQ
3 7 63 1515 0
SERVICE MANUAL
TE
L 13942296513
Grille assy
(B06-1616-08)
Type ...............................................Subwoofer system with built-in
[Amplifier]
Rated Output Power .....................120 W RMS (100 Hz, 10‰, 4 Ω)
Rated Power Consumption ..........100 W
[Speaker]
Enclosure ......................................Bass-Reflex, Floor Standing
www
Notes:
1. Kenwood follows a policy of continuous advancements in development. For this reason, specifications may be
.
changed without notice.
2. Full performance may not be exhibited in extremely cold locations (below 0 deg. C).
SPECIFICATIONS
amplifier
Input Sensitivity & Input
Impedance 200 mV (12 kΩ)
Type
x
ao
u163
y
i
2 9
8
Q Q
3
6 7
1 3
1 5
Speaker Units ................................200 mm (8") Cone type
Nominal Impedance ......................4 Ω
Dimensions ...................................Width : 299 mm (11-3/4")
Net Weight .....................................15 kg (33.1 lb)
Supplied accessories
Pin-plug cord .............................................................1
Cushion .....................................................................4
NOTE: DO NOT REMOVE THE GRILLE.
co
.
9 4
2 8
2002-8 PRINTED IN KOREA
B51-5810-00 (K/K) 1714
Knob
Push knob
(K29-0580-08)x2
(K27-0211-08)
0 5
8
2 9
9 4
2 8
Power switch
AC power cord
(S66-0203-08)
(E30-5493-18):KP
(E30-5998-08):E
Height : 333 mm (13-1/8")
Depth : 483 mm (19")
m
9 9
9 9
70%
Advertisement
Related Manuals for Kenwood SW-36HT
Summary of Contents for Kenwood SW-36HT
-
Page 1: Specifications
NOTE: DO NOT REMOVE THE GRILLE. u163 Notes: 1. Kenwood follows a policy of continuous advancements in development. For this reason, specifications may be changed without notice. 2. Full performance may not be exhibited in extremely cold locations (below 0 deg. C). - Page 2 SW-36HT/36HT-S/306 3 7 63 1515 0 ADJUSTMENT INPUT OUTPUT AMPLIFIER ALIGNMENT ITEM ALIGN FOR FIG. SETTINGS SETTINGS SETTINGS POINTS Unless otherwise specified, the individual switches should be set as following : POWER : ON NO SIGNAL INPUT Connect a DC 2.2 mV ±...
-
Page 3: Pc Board(Component Side View)
PC BOARD(Component side view) 3 7 63 1515 0 RJ902 C907 C908 IC901 CN904 P501 I G O C913 J534 CN901 IC902 SW902 D904 RJ903 J533 D901 C916 D902 F902 Q901 T1A/250V D903 R906 R905 F904 D905 F903 C922 T1A/250V C920 C921 C919... - Page 4 1/4W D702 Q701 Q501A IC101 Q501B R517 R706 C505 C507 C513 1/4W 14.9V 100P 100P SW101 CROSSOVER FILTER SW SW-36HT RELAY DESTINATION CROSSOVER DRIVE DRIVER F901 T901 IC701 R104 COUNTRY ABB. U.S.A. F06-3027-05 L07-3023-05 OVER LOAD VCC ON CANADA SW101...
-
Page 5: Exploded View
SW-36HT/36HT-S/306 3 7 63 1515 0 EXPLODED VIEW 4x20 (BLK) : N45-4020-45 3x6 (BLK) : N89-3006-45 M4x12 (BLK) : N09-3688-08 3x10 (BLK) : N89-3010-45 M3x10 (BLK) : N30-3010-45 M3x8 : N90-3008-46 3x10 (BLK) : N09-3803-08 M3x6 (BLK) : N30-3006-45 L 13942296513... -
