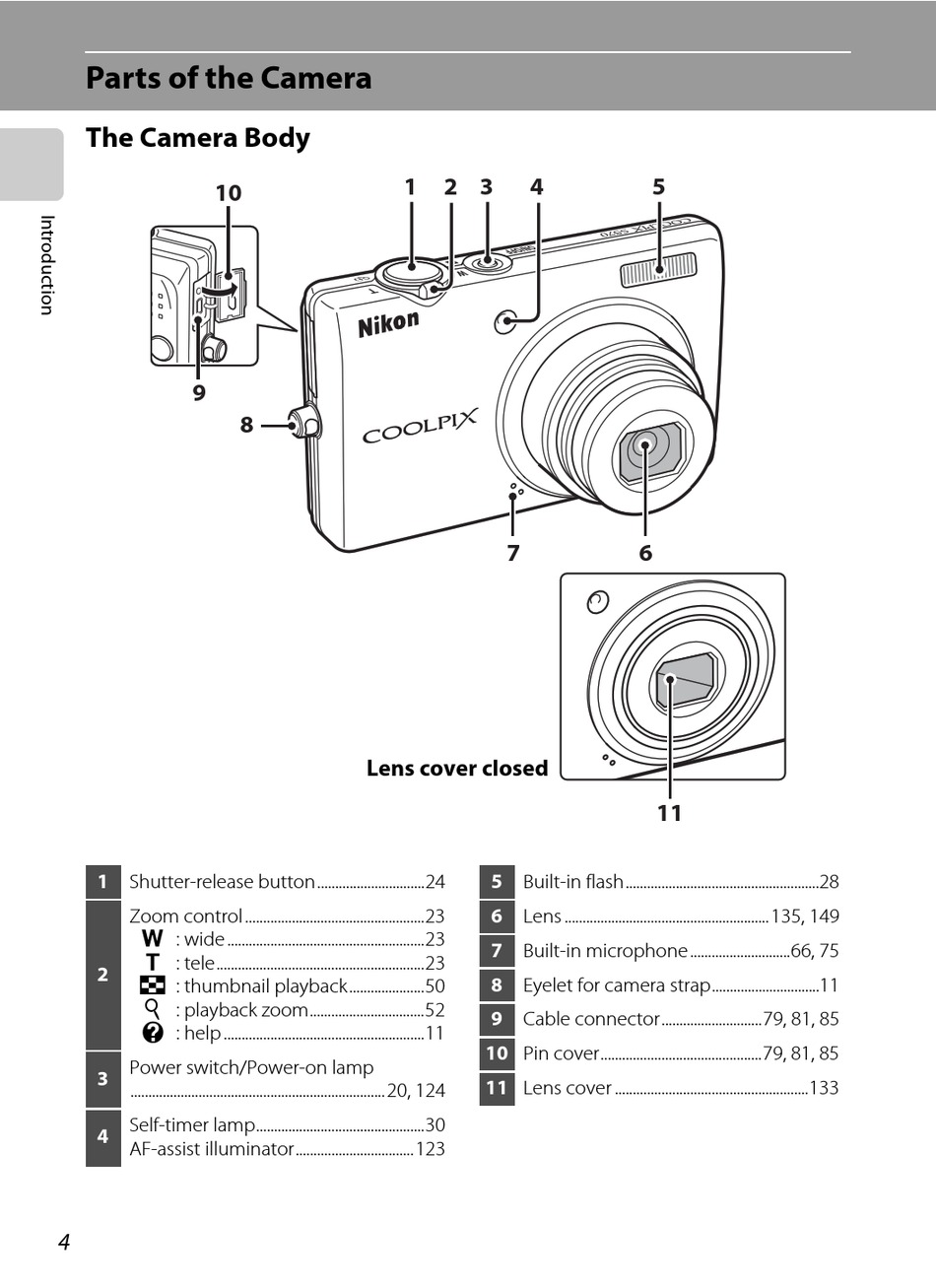

Parts of the Camera

The Camera Body

10
9
1 Shutter-release button..............................24
Zoom control..................................................23
f : wide .......................................................23
g : tele..........................................................23
2
h : thumbnail playback.....................50
i : playback zoom................................52
j : help ........................................................11
Power switch/Power-on lamp
3
.......................................................................20, 124
Self-timer lamp...............................................30
4
AF-assist illuminator.................................123
4
1
8
Lens cover closed
2 3 4
7
5 Built-in flash......................................................28
6 Lens .........................................................135, 149
7 Built-in microphone............................66, 75
8 Eyelet for camera strap..............................11
9 Cable connector............................79, 81, 85
10 Pin cover.............................................79, 81, 85
11 Lens cover ......................................................133
5
6
11
