- Page 1 teleloop amplifier GB u s e r g u i d e o t h e r r e s o u r c e s o n l i n e a t w w w. p h o n i c e a r. d k...
-
Page 2: Table Of Contents
table of contents function ..........1 IELD features . -
Page 3: Field Function

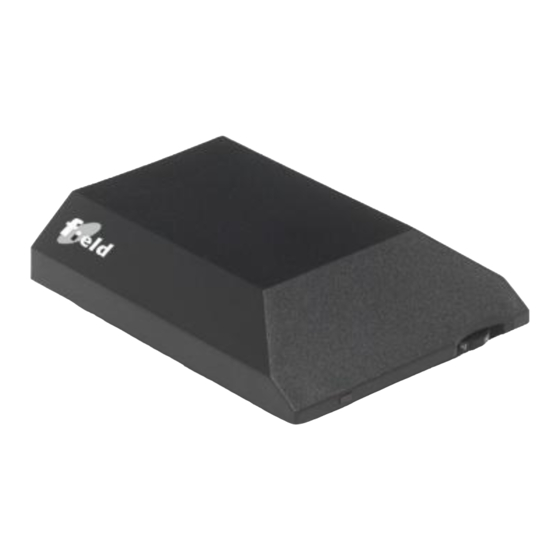

function IELD is a teleloop amplifier. F transfers the sound from TV and radio directly to your hearing IELD IELD aid (or telemagnetic receiver) and you receive the sound loud and clear. -
Page 4: Field Features
features IELD loop connection To connect teleloop cable 12V AC connection To connect 12 volt power transformer radio/TV connections back To connect radio, television, etc. microphone connection To connect external microphone indicator light Shows that power is on front volume control To adjust volume level bass control To adjust bass levels... -
Page 5: Field Accessories
accessories IELD (included with F system) IELD teleloop cable Installed in rooms where will be used IELD teleloop cable clips To secure teleloop cable screwdriver To adjust bass and treble connector set (optional in some countries) Includes: • Adaptor, SCART/phono •... - Page 6 accessories IELD (not included, sold separately) clip microphone Placed in front of source loud- speaker if sound source cannot be attached to teleloop amplifier by an output connection. Can also be used to amplify conversations. boundary microphone cushion loop...
-
Page 7: Field Instructions
instructions IELD teleloop installation Place teleloop cable top view of room along wall, floor, or ceiling of room where will be used and IELD secure with cable clips. To avoid cable damage, run cable under carpet, behind baseboard or around doorframe. ATTENTION: Make sure that teleloop cable is fully stretched out. -
Page 8: Connect To Tv
Radio/TV connections on back of F IELD Then plug other end of the cable into Line Out or SCART connection on TV. NOTE: Use only cables and jack plugs supplied by an authorized Phonic Ear representative/installer or may be damaged. IELD... - Page 9 NOTE: Sound sources other than TV and radio can be connected to . Contact an authorized IELD Phonic Ear representative/installer for more information. Use only cables and jack plugs supplied by an authorized Phonic Ear representative/installer or F may be damaged.
-
Page 10: Adjusting Volume
instructions IELD connecting transformer Plug transformer cord into 12V AC connection on back of F IELD Plug transformer into wall socket. Red light on front of F should go on. IELD adjusting volume Use volume control on front of to adjust volume level: IELD Min = Lowest volume Max = Highest volume... - Page 11 instructions IELD adjusting bass and treble Turn left control on bottom of F clockwise IELD to increase bass level and counterclockwise to reduce bass level. Turn right control on bottom of F clockwise IELD to increase treble level and counterclockwise to reduce treble level.
-
Page 12: Troubleshooting
• Check that the volume is not too high. See 7 . If you still have trouble after trying the ideas above please contact your local authorized Phonic Ear representative/installer (see information on back cover). test and approval is approved and CE marked in accordance with the relevant directives. -
Page 13: Warranty
6 Products damaged in transit unless investigated by the shipper and returned to the warrantor with the investigation report. Phonic Ear reserves the right to make changes in the design or construction of any of its instruments at any time without incurring any obligation to make any changes whatsoever on units previously purchased. - Page 14 Your local representative: international: + 45 3917 7101 u.s.: 800.227.0735, then press 7 • canada: 800.263.8700 website: www.phonicear.dk © 2004 Phonic Ear A/S 921-06-010-00/Rev. A 0105...
