Appendix 2

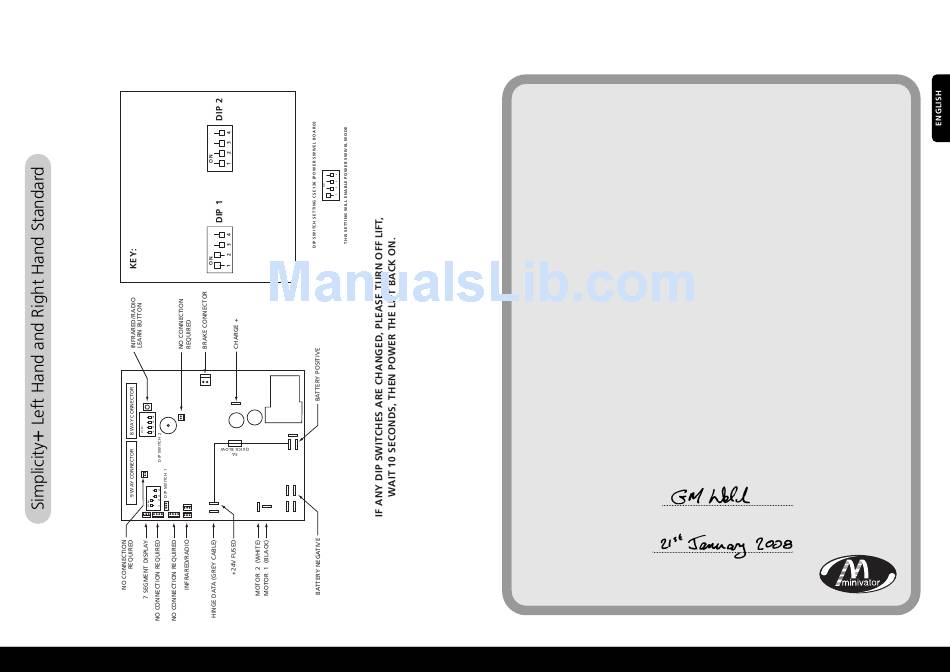

Wiring diagrams

UNUSED UNUSED
FAST RAMP SLOW RAMP
RIGHT HAND LIFT LEFT HAND LIFT
HINGE ENABLE HINGE DISBLE
PLATFORM ENABLE PLATFORM DISABLE
PING ENABLE PING DISABLE
FULL SPEED DOWN
HALF SPEED DOWN
FULL SPEED UP HALF SPEED UP
15 15
x x
Appendix 3 –
To which this declaration relates is in conformity with the following

Certificate of Conformity

We
Minivator Ltd
of
82 First Avenue
Pensnett Estate
Kingswinford
West Midlands
DY6 7FJ, England.
Declare under our sole responsibility that the product
+
Minivator Simplicity
has been manufactured in conformity with the following
standards and specification:
BS5776:1996 Powered Stairlifts
ISO 9386-2 2000-11-01
national standards:
Electro Magnetic Compatibility Directive 89/336/EEC
Low Voltage Directive – 73/23/EEC
Machinery Directive – 98/37/EEC
Signed:
Name: G. Welch
Date:
Position: Engineering Manager
