Features:
Water-proof IP65 rated reader for outdoor installation
Standard Weigand Input and Output interfaces are compatible with most 3
bit Weigand readers and access control panels.
USB HOST port makes offline data backup/management fast & easy.
Relay contacts for alarm, electric lock, exit button, and wired door bell.
Reads fingerprint, RFID card and Password.
Specifications:
Fingerprint capacity
Transaction capacity
Hardware Platform
Fingerprint Sensor
Identification speed
Operating Temperature
Operating Humidity
Access control interfaces
TF1700 Quick Start Guide
Card capacity
CPU
Memory
Display
LED Indicator
Communication
Weigand signal
FAR
FRR
Language
Power Supply
Dimension
201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008
ZK 6001, 400Mhz
8M Flash, 32MSDRAM
ZK optical sensor
16 CHAR x 4 Lines Black & White
Ethernet（10/100M）and RS485,
Weigand Input and Weigand Output
32-113
English/Spanish,
Electric lock, alarm, exit button, wired
5.8 * 2 * 1.3 inches
62.5*185*41.5mm (L*W*D)
www.zkaccess.com
3000
30,000
100,000
ZEM700
OLED Display
Red, Green
≤2 sec
≤0.0001%
≤1%
F 0-45℃
o
20%-80%
12V DC, 3A
door bell
rd
party 26-
Advertisement
Table of Contents
Related Manuals for ZKaccess TF1700
Summary of Contents for ZKaccess TF1700
-
Page 1: Specifications

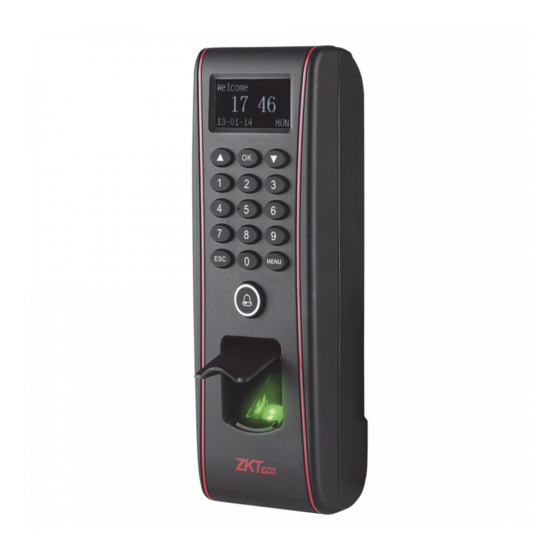

TF1700 Quick Start Guide Features: Water-proof IP65 rated reader for outdoor installation Standard Weigand Input and Output interfaces are compatible with most 3 party 26- bit Weigand readers and access control panels. USB HOST port makes offline data backup/management fast & easy. -
Page 2: Basic Contents
Basic Contents: Wall Mounting Screws and TF1700 Fingerprint Holders Metallic Mounting Plate Terminal Star-shape Screw Driver Star-shape Screw for Mini-USB Cable Mounting Plate Installation Guide Software CD Mounting Paper 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008... -
Page 3: Optional Accessories
Optional Accessories 12V3A Power FR1200 Fingerprint Slave K1 Exit Button Adaptor Reader Mifare Integrated Module and Card 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com... - Page 4 Front Side 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com...
-
Page 5: Installation Diagram
Rear Installation Diagram 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com... -
Page 6: Product Dimensions (Mm)
Product Dimensions (mm) 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com... -
Page 7: Cable Specification
WHITE BLACK EXIT BUTTON GREY Description Wire +12V DC BLACK Weigand input D0 WHITE Weigand input D1 GREEN Red LED BLUE Green LED GREY Beep PURPLE 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008 www.zkaccess.com... -
Page 8: Important Notes
Use regulated 12V DC 3A power source (supplied from control panel or separately purchased power supply). Please make sure to protect TF1700 against vandalism. Mounting the Unit Place the unit approximately 5 ½ feet above the ground level if permissible so that the users are comfortable in using the reader with least chances of error ... -
Page 9: Fingerprint Enrollment
Fingerprint Enrollment: Users have No “administrative” access to the TF1700, but can gain door access and have his/her attendance recorded. Note: Until an “admin” is enrolled in the TF1700, All “users” enrolled on the TF1700 “temporarily” have administrative access. Therefore it is important to enroll an “admin” on the TF1700 soon after initial installation. - Page 10 New Enroll UserID: 000000001 If no user has yet been enrolled on the TF1700, the next available User ID will be 000000001. Press the OK key to accept 000000001, or manually key in a different number if desired. The TF1700 will then prompt;...
- Page 11 Verified Note: The TF1700 will make a note in its transaction log that UserID 000000001 accessed the TF1700. This information can be used for Time & Attendance software applications and/or for door access. 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008...
- Page 12 The TF1700 will prompt you to confirm you wish to delete the fingerprint. Press OK The TF1700 will prompt you to confirm you wish to delete the User. Press OK The TF1700 will prompt you to confirm you wish to delete the User again. Press OK Set Communications Options: Press the Menu key to begin;...
- Page 13 Record the IP address of each TF1700 you have installed. These IP addresses are used to identify the TF1700s. If using the Serial communication then match the TF1700’s Baud Rate with the serial port of the computer. 201 Circle Drive N, Suite 116 Piscataway, NJ 08854 Tel: 732-412-6007 Fax: 732-412-6008...
