Before use, please read the explanations carefully!

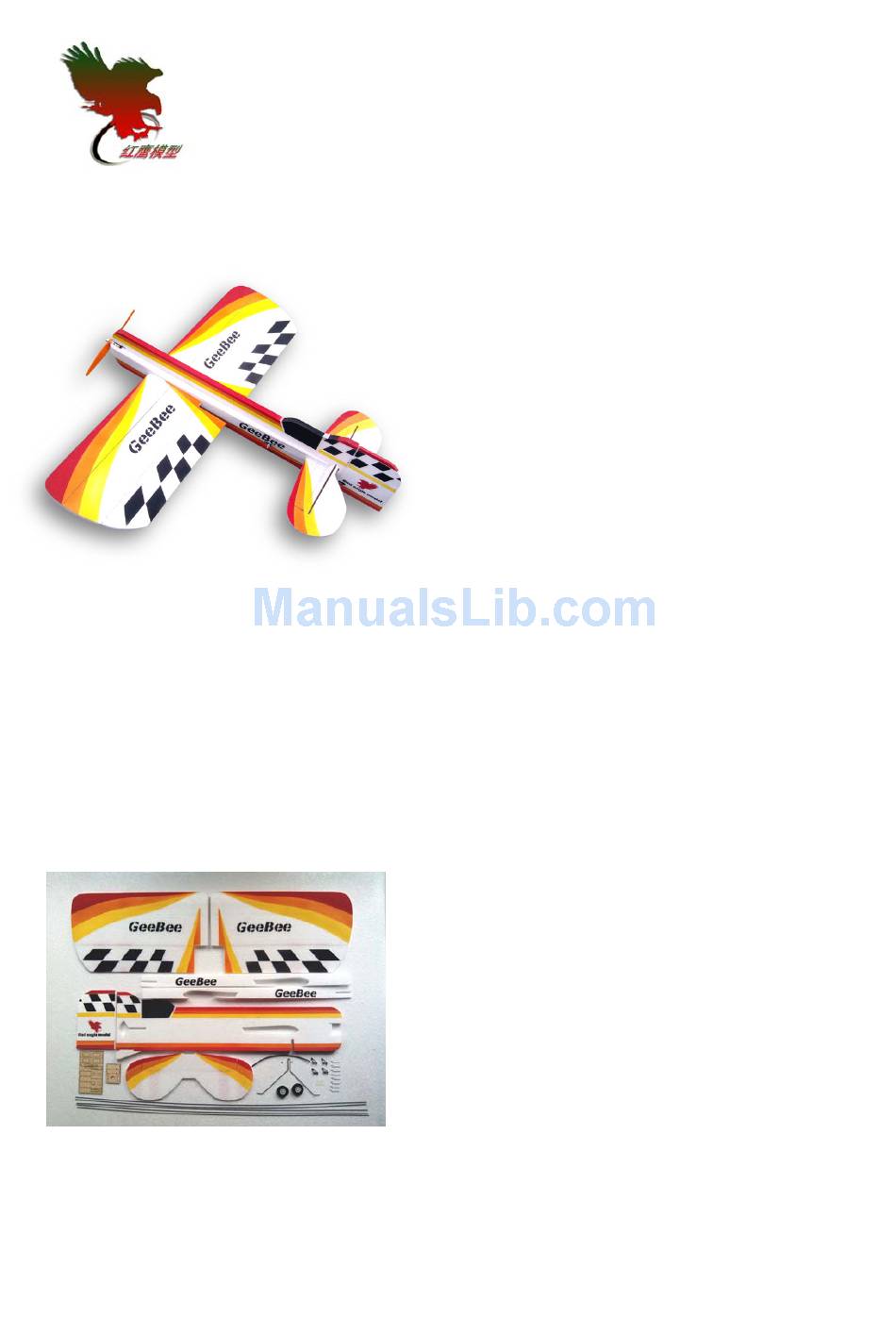

GEEBEE EPP-3D
SAFETY PRECAUTIONS 安全事项
1.
We recommend that you get the assistance from an experienced pilot when assembling.不
熟悉组装的人请向有经验的人请教，听取他们的意见后再进行组装。
2.
The kit contains small parts. So keep out of children's reach when assembling.飞机含小部
件，请在幼儿接触不到的地方进行安装工作。
3.
The flying weight of kit is about 550g. In order to ensure the flight performance, use the
motor and battery with suitable weight.该飞机起飞重量 550 克左右，为了确保飞行性能，请勿使
用超规格的马达和电池。
零件表
组装前请认真阅读说明书
Instruction Manual 说明书
Specifications 参数
Fuselage Length 全长 910mm
Wingspan 翼展:1000mm
Flying Weight 飞行重量:540-570g(with battery)
Additional Required Equipment (not included in
the kit):其他设备（另购）
Motor 电机:2217 1000KV (power: 180-220W)
ESC 电调: 25A
Slow Flyer Prop 慢速桨:10*4.7
Servo 舵机: 4 × 9G
Receiver 接收机: 4 channels 通道
Battery 电池: 11.1V 1200-1500mAh 20C Li-po
主机翼 （对） main wing （pair） ：1
机身 fuselage: 1
机身加强筋（对） stiffener of fuselage （pair） ：1
水平尾翼 tailplane：1
方向舵 rudder servo：1
木质马达座（套） Plywood motor mount（set） ：1
Z 字形钢丝 Z-shaped steel wire：8
机轮及塑料轮档 airplane wheel and plastic wheel chock：2
起落架钢丝 landing gear steel wire：1
起落架木支撑 wood support plate of landing gear ：1
舵角 servo horn：4
舵角木底座 wood servo horn mount：2
热缩管 hot shrink tube：1
980mm 碳纤棒 980mm C-bar：5
舵机安装木底座 wood servo bracket： 4
升降舵木条 elevator servowood chip： 2
Advertisement
Table of Contents
Related Manuals for GEEBEE EPP-3D
Summary of Contents for GEEBEE EPP-3D
-
Page 1: Instruction Manual
组装前请认真阅读说明书 Before use, please read the explanations carefully! GEEBEE EPP-3D Instruction Manual 说明书 Specifications 参数 Fuselage Length 全长 910mm Wingspan 翼展:1000mm Flying Weight 飞行重量:540-570g(with battery) Additional Required Equipment (not included in the kit):其他设备（另购） Motor 电机:2217 1000KV (power: 180-220W) ESC 电调: 25A Slow Flyer Prop 慢速桨:10*4.7... - Page 2 1、 取 2 根 980mm 长的 2mm 碳纤棒穿在机翼上、 下表面的槽内。 Put 2 pieces of C-bars with 980mm length and 2mm diameter into the slot of aircraft wing’s top and bottom surface. 2、用泡沫胶将 2 片主机翼对粘。Stick the 2 pieces of main wings symmetrically with foam glue. 3、请务必用 502 胶水把上、...
- Page 3 servo’s surface with 502 glue (see the corresponding picture). 11、把升降舵插入机身粘合，请注 意保持左右对称。Insert the elevator servo into the fuselage and stick them to make sure they are symmetrical. 12、 用美工刀在方向舵边缘开槽， 取 4 片纸铰链插入一半后用 502 胶水粘接。 Cut a slot in the edge of with craft knife, insert half-size of the 4 pieces of paper hinges into the rudder servo slot, then stick them with 502 glue.
- Page 4 22、使副翼舵机连杆与舵臂呈垂直夹角，调节好连杆长度后，用 502 胶水渗入热缩管缝隙粘合。 Make sure the angel between connecting rod and servo arm should be vertical. After adjust the length of connecting rod, drop 502 glue into the seam of hot shrink tube to stick. 23、用同样的方 法安装好升降舵和方向舵的连杆。Assemble connecting rods of elevator servo and rubber servo with the same method 24、用...
