Summary of Contents for Trox RM-O-VS

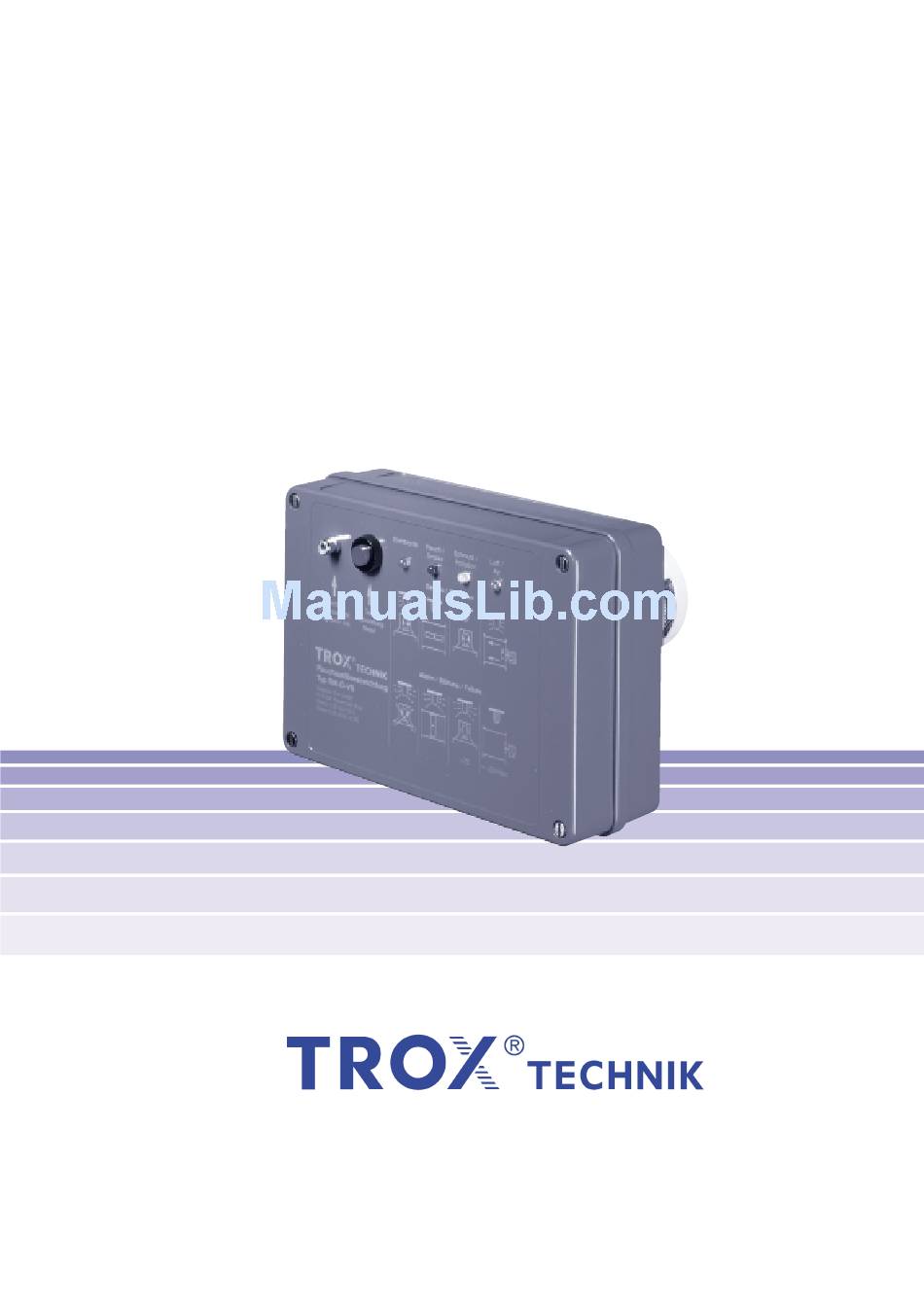

- Page 1 4/6.1/EN/3 Smoke Detector Type RM-O-VS Approved by the German Institut für Bautechnik...
-
Page 2: Table Of Contents
– Permitted relative humidity: 0 – 90 % relative humidity Available accessories: (condensation and water vapour can cause false alarms) – Diagnostic instrument type D-RM-O-VS to scan pollution – Warning limit for air flow: 2 m/s level, measurement range 0 to 100 units; hand held unit –... -
Page 3: Description · Application
Central control point Anschluß Test / Rück- Diagnosegerät stellung Reset Diagnostic link Alarm / Störung / Failure Terminal T-RM-O-VS zur Rauchauslöseeinrichtung RM-O-VS >70% v < 2m/sec Typ D-RM-0-VS Application All fire dampers fitted with electric or electric/pneumatic control devices which operate when voltage is removed may be controlled via the smoke detector. -
Page 4: Installation Instructions
Installation Instructions Installation Instructions Optional electrical connections (mains connection and connection to control device of fire damper) should be – The smoke detector must be installed on a vibration-free such that the entire smoke detector can be removed to surface, in an area of the duct to be monitored having a replace the smoke alarm. -
Page 5: Circuit Diagram · Wiring Diagrams
– L /3-4 pollution monitoring (volt-free)*, – L /5-6 system monitoring (volt-free)* * Switched power 110 V/4 A, 24 V-/100 W Connection for remote control type T-RM-O-VS or L (+) T-RM-O-VS/1; for remote control, remove link L /1-2 N (–) -
Page 6: Overview Of Functions
Overview of Functions Red LED Blue LED Yellow LED Green LED Alarm Velocity Pollution System Fire damper Operating Mode / Event Monitoring Monitoring Monitoring Terminal Strip Terminal Strip Terminal Strip Terminal Strip – L – – L – – L –... -
Page 7: Inspection And Maintenance
– Application and installation position must be repaired immediately. Faulty components must be (during commissioning and after system changes) replaced only by original Trox spare parts. – Correct electrical connections and no loose wires in terminals Only the manufacturer may make repairs to the smoke –... -
Page 8: Order Details
(maintenance once/year). Scope of supply: see page 2. Order Code D-RM-O-VS Description: Order example Diagnostic instrument for smoke detector RM-O-VS to scan Make: TROX pollution level. Type: D-RM-O-VS Measurement range 0 – 100 units; hand unit with 1m long Quantity: 1 connection lead and plug;...
