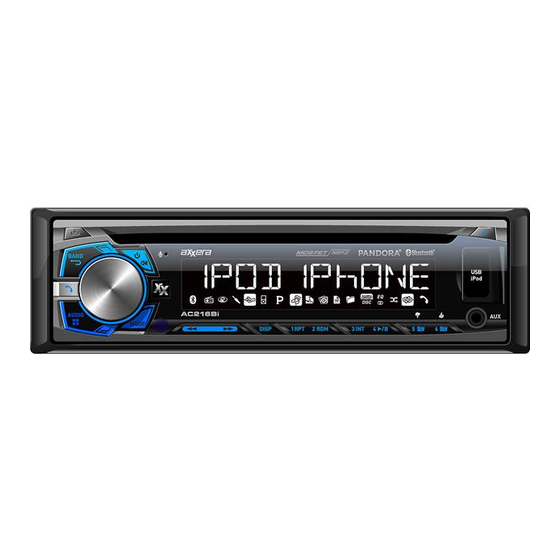

AC216Bi
INSTALLATION/OWNER'S MANUAL
AM/FM/CD Receiver with Detachable Face
Front Input
Front and Rear Inputs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC216BI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axxera AC216BI

Summary of Contents for Axxera AC216BI

  • Page 1 AC216Bi INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver with Detachable Face Front Input Front and Rear Inputs...

  • Page 2: Getting Started

    AC216Bi INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The AC216Bi uses one 10 amp AGC fuse located beside the wiring connector.

  • Page 4: Control Locations

    AC216Bi OPERATION Control Locations 1 2 3 10. Preset 4 / Play / Pause 1. Release 11. Preset 3 / Intro 2. Band / Go Back 12. Preset 2 / Random 3. Volume / Select 13. Preset 1 / Repeat 4.

  • Page 5: General Operation

    AC216Bi OPERATION General Operation Power On/Off Press or any other button to turn the unit on. Press and hold to turn the unit off. Mode Press MODE to select between Tuner, Disc, Auxiliary Input, USB, iPod, Bluetooth or Pandora modes. Modes of operation are indicated in the display.
  • Page 6 AC216Bi OPERATION General Operation - Setup Menu Press and hold AUDIO/MENU for more than 3 seconds to access Setup Menu the setup menu. Press AUDIO/MENU momentarily to select between the menu functions and rotate the volume knob left/right to adjust or activate the desired function.
  • Page 7 AC216Bi OPERATION General Operation Press the AUDIO/MENU to step through the following audio Audio / Menu adjutment options: Bass, Middle, Treble, Balance, Fader, EQ, Loudness, Subwoofer and Source Level. Rotate the volume knob left/right to adjust or activate the desired function.
  • Page 8 AC216Bi OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE for more than one second to seek to the next strong station. Press TUNE or TUNE momentarily to change Manual Tuning radio frequency up or down one step at a time. Press and hold to advance quickly.

  • Page 9: Cd Player Operation

    AC216Bi OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation.
  • Page 10 AC216Bi OPERATION CD Player Operation - MP3/WMA Files Playing an MP3/WMA When an MP3/WMA encoded disc is first inserted, Disc “DISC READ” will appear in the display. Depending on the number of files and folders, this may take several seconds.
  • Page 11 AC216Bi OPERATION CD Player Operation - MP3/WMA Files Folder/File Search MP3/WMA CD mode features a file and folder search Mode mode. This search allows navigating through folders to find a specific MP3 or WMA file for playback. Step 1 Press SELECT to enter the file/folder search mode. A list of all the folders on the CD will be displayed.
  • Page 12 AC216Bi OPERATION CD Player Operation - MP3/WMA Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
  • Page 13 AC216Bi OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA An internal buffer provides ESP (Electronic Skip Protection) to Information virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.

  • Page 14: Usb Operation

    AC216Bi OPERATION USB Operation To play MP3/WMA files from most USB mass storage Connecting a USB devices, line up the USB connector and insert the USB Device device into the unit's USB port. (sold separately) When a USB device is first connected, “READ” will appear in Playing Music the display and playback will begin momentarily.
  • Page 15 AC216Bi OPERATION USB Operation Folder Access Press to select the previous folder. Press to select the next folder. File Search Step 1 Note: Folder access is only available on devices with more than one folder. Press the volume knob to enter the file/folder search mode.
  • Page 16 AC216Bi OPERATION USB Operation Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 32 character maximum • *Artist name – 32 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
  • Page 17 AC216Bi OPERATION USB Operation Additional MP3/WMA Only MP3 files with filename extension (.mp3) can be played. Information Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/ WMA extension. Sampling Frequency...

  • Page 18: Ipod Operation

    AC216Bi OPERATION iPod Operation Connect an iPod Device The unit features a direct USB control system for iPod. (Not Included) To play music from an iPod device, connect the USB cable (included with your iPod device) to the USB port on the front panel.
  • Page 19 AC216Bi OPERATION iPod Operation Character Only alphanumeric characters can be displayed (ASCII Support type). "NO SUPPORT" will be displayed if the file contains characters that can not be displayed. "NO FILE" will be displayed if there are no songs in the selected playlist.

  • Page 20: Bluetooth Operation

    AC216Bi OPERATION Bluetooth Operation Pairing a New Device Before you can use a Bluetooth device, it must be paired and connected. Make sure that Bluetooth is activated on your device before you begin the pairing process. The unit broadcasts the pairing signal constantly when no devices are currently connected.
  • Page 21 AC216Bi OPERATION Bluetooth Operation Making a Phone Call Placing a phone call from your cell phone will initiate Bluetooth function. Recent Calls List Press SELECT from Bluetooth mode to view recent calls dialed, received or missed while connected to the head unit.
  • Page 22 AC216Bi OPERATION Bluetooth Operation Streaming Audio Operation The unit supports A2DP (advanced audio distribution profile) wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).

  • Page 23: Pandora Operation

    AC216Bi OPERATION Pandora Operation Requirements Control for Pandora requires: • An iPhone device with a reliable data connection, or an iPod touch that is connected to wireless internet. • The Pandora App installed on the iPhone/iPod device. • An active account with Pandora. Sign up at www.pandora.

  • Page 24: Specifications

    AC216Bi OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit Tuning range: 87.5MHz-107.9MHz FM Tuner Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz Tuning range: 530kHz-1710kHz...

  • Page 25: Troubleshooting

    AC216Bi OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground...

  • Page 26: Limited One Year Warranty

    AC216Bi OPERATION Limited One Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual.

  • Page 27: Fcc Compliance

    AC216Bi OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 28 Dual Electronics Corp. Toll Free: 1-866-382-5476 9AM-5PM EST, Monday-Friday www.axxeraaudio.com ©2016 Dual Electronics Corp. All rights reserved. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
