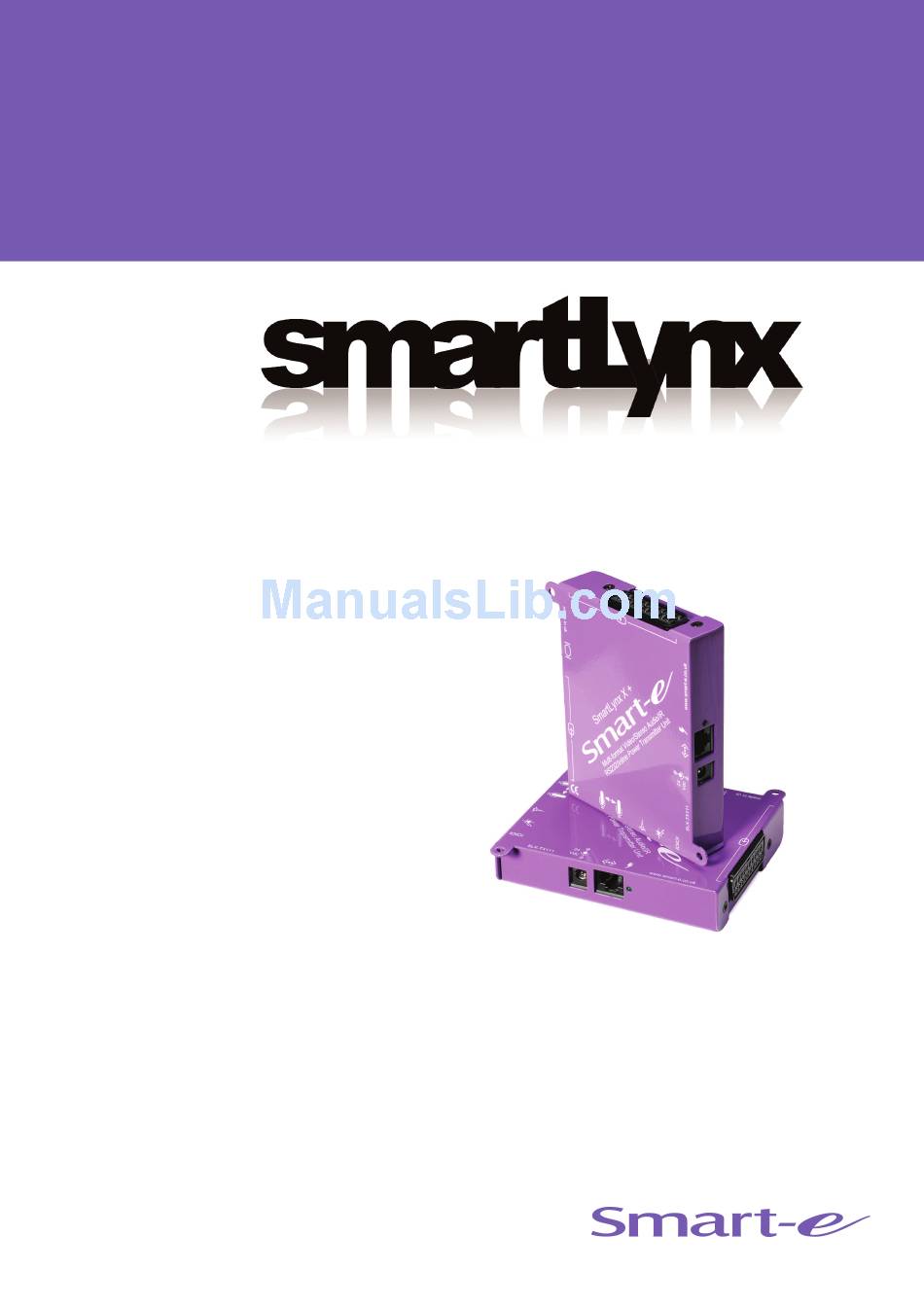

Page 1: User Guide
SLX-111 transmitter & receiver pair user guide also available: SLX-100, SLX-214 for more information visit our website, or talk to one of our technical team tel: +44 (0) 1306 628264, www.smart-e.co.uk... - Page 2 Smart-e will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
-
Page 3: Table Of Contents
Table of Contents Introducing SmartLynx What ‘s in the box ..................1 What is SmartLynx ..................2 Why is SmartLynx necessary ..............2 How does SmartLynx work ................. 2 Installation and Operation Transmitter ......................3 Receiver ........................ 8 Appendix Specifications ..................... 11 Troubleshooting .................... -
Page 4: Introducing Smartlynx
Introducing SmartLynx Cat5 AV Extender What‘s in the box? Thank you for buying the Smart-e SmartLynx Cat5 AV Extender. Depending on the configuration of your system various quantities of the parts below may be included in your shipment. If any of the accessories listed below are missing please contact the... -
Page 5: What Is Smartlynx
SDTV How does SmartLynx work? The Smart-e SmartLynx is a transmitter and receiver pair designed to extend video, stereo audio and IR/RS232 signals over (UTP) unshielded twisted pair category 5 (Cat5) cabling. They are supplied with a UK power supply and consist of: a transmitter with a video input (connectors vary by model), an audio input and a Cat5 output and;... -
Page 6: Installation And Operation
Installation and Operation 1. Preparing for installation Start installation process by ensuring that all video displays and audio devices are compatible with the computers being used. This is accomplished by connecting the devices directly to the computer and checking that the devices operate as desired without the SmartLynx system. - Page 7 Installation and Operation 2. Connect Transmitter to the video signal source Connect the video output of the source device to the appropriate input of the transmitter using the relevant cable. Although there are multiple connector types, only one feed of video may be routed by the product at any one time, the multitude of connectors are to simplify installations.
-
Page 8: Transmitter
Installation and Operation 3. Connecting Audio, Infra-red and RS232 to the transmitter Connect the audio output of the source device to the ‘audio in’ mini jack connectors on the SLX-TX111, using an interface cable if appropriate. If using RS232 connect control cable to the minijack input as shown in the diagram below. - Page 9 Installation and Operation 4. Setting the jumpers for required video format The diagram below illustrates how the jumpers must be set for each required video format. For RGBS ensure the first jumper is set to RGBS and the second to RGBS.
- Page 10 Installation and Operation 5. System Power up Turn the system on by plugging in the power adapter to the SmartLynx Transmitter (or Receiver if preferred) Power up your computer. Observe both transmitter and receiver power LED are ON, and source device is switched on. 6.
-
Page 11: Receiver
Installation and Operation of Receiver 7. Connecting SLX-RX111 to the display device Making sure that the Cat 5 cable is connected to the transmitter output, connect the cable to the RJ45 socket on the receiver unit. If the cable connection is correct the power LED on the front of the receiver should illuminate (power is sent up the Cat 5 cable). - Page 12 Installation and Operation of Receiver 8. Connecting SLX-RX111 to audio and Infra-Red control Connect the speakers or audio input on the display to the audio output on the receiver, using a 3.5mm jack plug. If using the receiver to transmit Infra-Red signals back down the cable to the transmitter unit then connect an ‘eye’...
- Page 13 Installation and Operation of Receiver 9. Mounting the Receiver The receiver unit can compensate for cable losses over a length of 20-100m, and for mounting purposes the unit is provided with two ’mounting-hole’ points for fixing to the wall or screen (See diagram below). Simply hold receiver in place, mark position of holes and set screws in these locations.
-
Page 14: Specifications
Technical Information SLX-111 Video Input Signal Type - Connector………….. UXGA/RGBS/YUV/YPbPr/YC/CVBS - RJ45 Bandwidth………………………………….. 400MHz Impedance…………………………………. 75 Ohm Audio Input Signal Type…………………………………. Stereo Audio Bandwidth………………………………….. 20kHz, 0dB Impedance…………………………………. 10k Ohm Connector………………………………….. RJ45 Video Output Signal Type - Connector………….. UXGA-HD15 / RGBS / YUV-3xRCA / YC-4pin minidin / CVBS Bandwidth………………………………….. -
Page 15: Troubleshooting
Troubleshooting No video? Are the green LEDs on both the transmitter and receiver units? If not check that the 24V power supply (PSU) is connected and the LED on the PSU is lit. Check the cable compensation dials on the underside of the unit. Over compensation of the Red and Blue channels can cause the display to misinterpret the sync pulses and not display an image. -
Page 16: Appendix
Customer is responsible for maintaining proof of date of purchase. Smart-e warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. Improper or inadequate maintenance or modifications b. -
Page 17: Partial Product List
Partial Product List Product Range Product Code Description SmartLynx - X SLX-100 Transmitter and Receiver Pair SLX-400 Transmitter and Receiver Pair SmartLynx-X + SLX-111 Transmitter and Receiver Pair with RS232/IR SLX-211 Transmitter and Receiver Pair with RS232/IR SLX-212 Dual Transmitter and Receiver Pair with RS232/IR SmartCast - X SCX-TX600 One to Six Transmitter Unit...
