Installation Guide Termix VVX-I

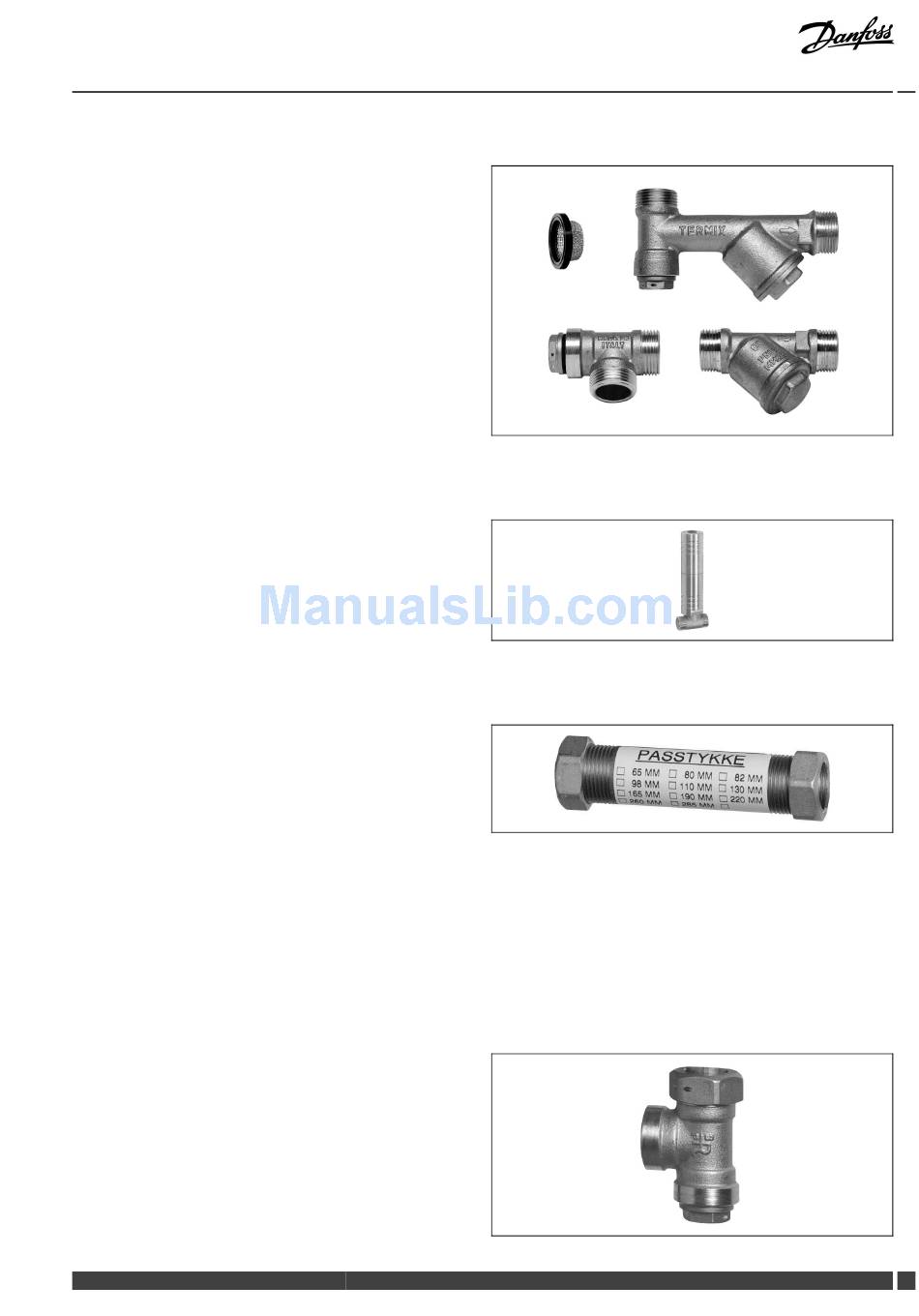

6.3.2 Strainer
Strainers should be cleaned regularly by authorized personnel. The
frequency of cleaning would depend on operating conditions and
the manufacturer's instructions.
6.3.3 GTU Pressure Equalizer
The GTU Pressure Equalizer absorbs the expansion on the
secondary side of the Termix water heaters and can be used as a
substitute to the safety valve.
Furthermore the pressure equalizer absorbs a possible increase in
pressure, so a discharge outlet is omitted.
The GTU Pressure Equalizer may not be applied in systems with hot
water circulation.
6.3.4 Fitting piece
The substation is equipped with a fitting piece for energy meter.
Assembly of energy meters:
1: Close ball valves
Close the ball valves on DH Supply and DH Return, if there is water
on the system.
2: Loosen nuts
Loosen the nuts on the fitting piece.
3: Remove fitting piece
Remove the fitting piece and replace it with the energy meter. Do
not forget the gaskets.
4: Tighten connections
After mounting of the energy meter remember to check and
tighten all threaded connections.
Sensor pocket, energy meter
The sensors of the energy meter is mounted in the sensor pockets.
