Power
The BASRTP-B features a USB 2.0 Full Speed Device Port that
accepts the USB cable with Type B plug that is included in the box. It
takes 5 VDC from a host computer, while typically drawing 300 mA of
current. It can operate from a USB hub, if desired, and no driver
installation is needed.
For MS/TP devices, see Figure 5 for proper 2-wire bus connections and
Figure 6 for proper 3-wire bus connections. The BASRTP-B does not
apply any failsafe bias or termination.

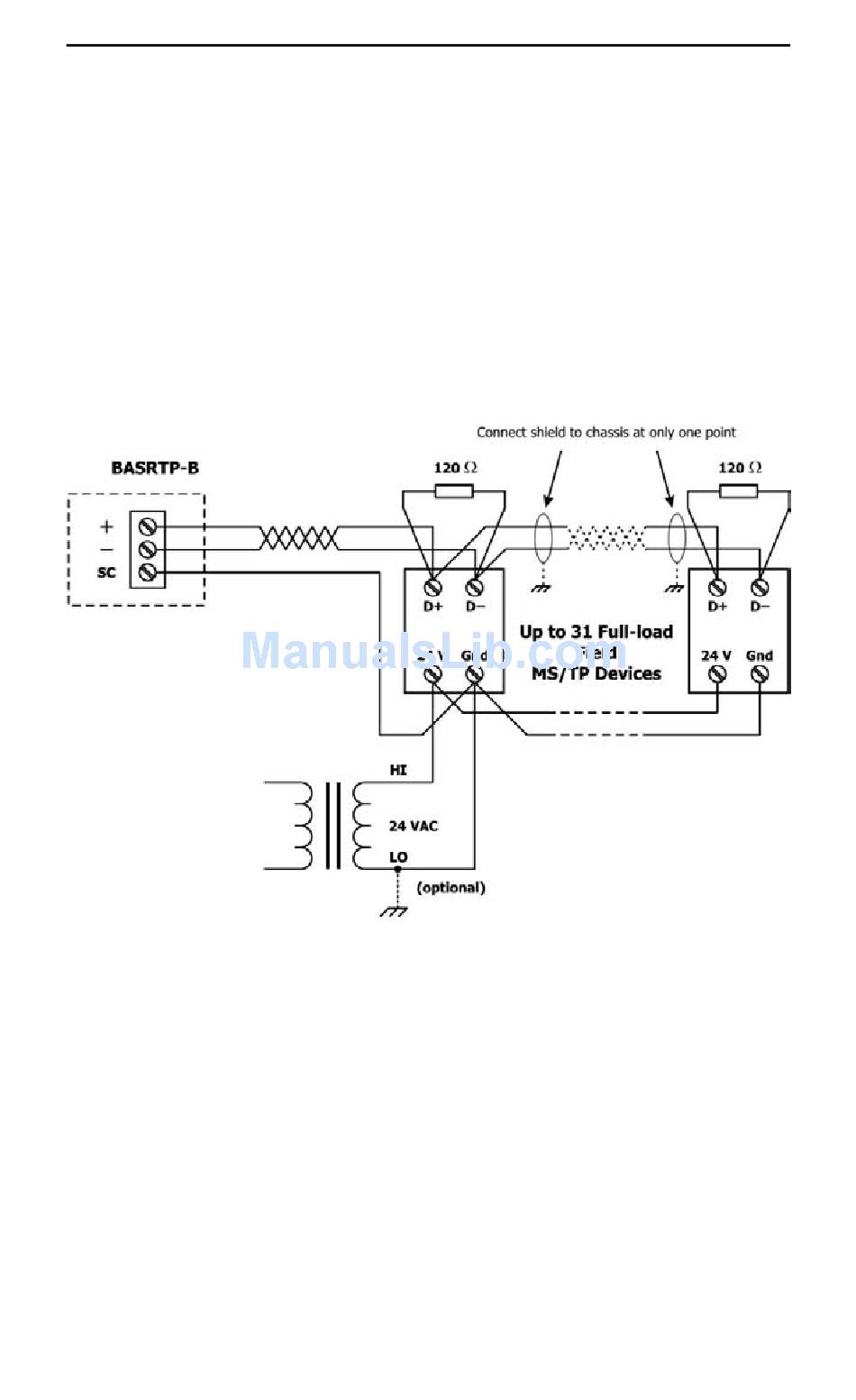

Figure 5 — 2-wire MS/TP Bus Wiring
TD070210-0ID
