Operating Instructions
Busch-Timer
Pos : 2 /#N eus truktur #/Online-Dokumentation (+KN X)/Titelbl ätter/Ti mer/Titelbl att 6455 Jal ousie @ 26\mod_1343372636549_15.doc x @ 225649 @ @ 1

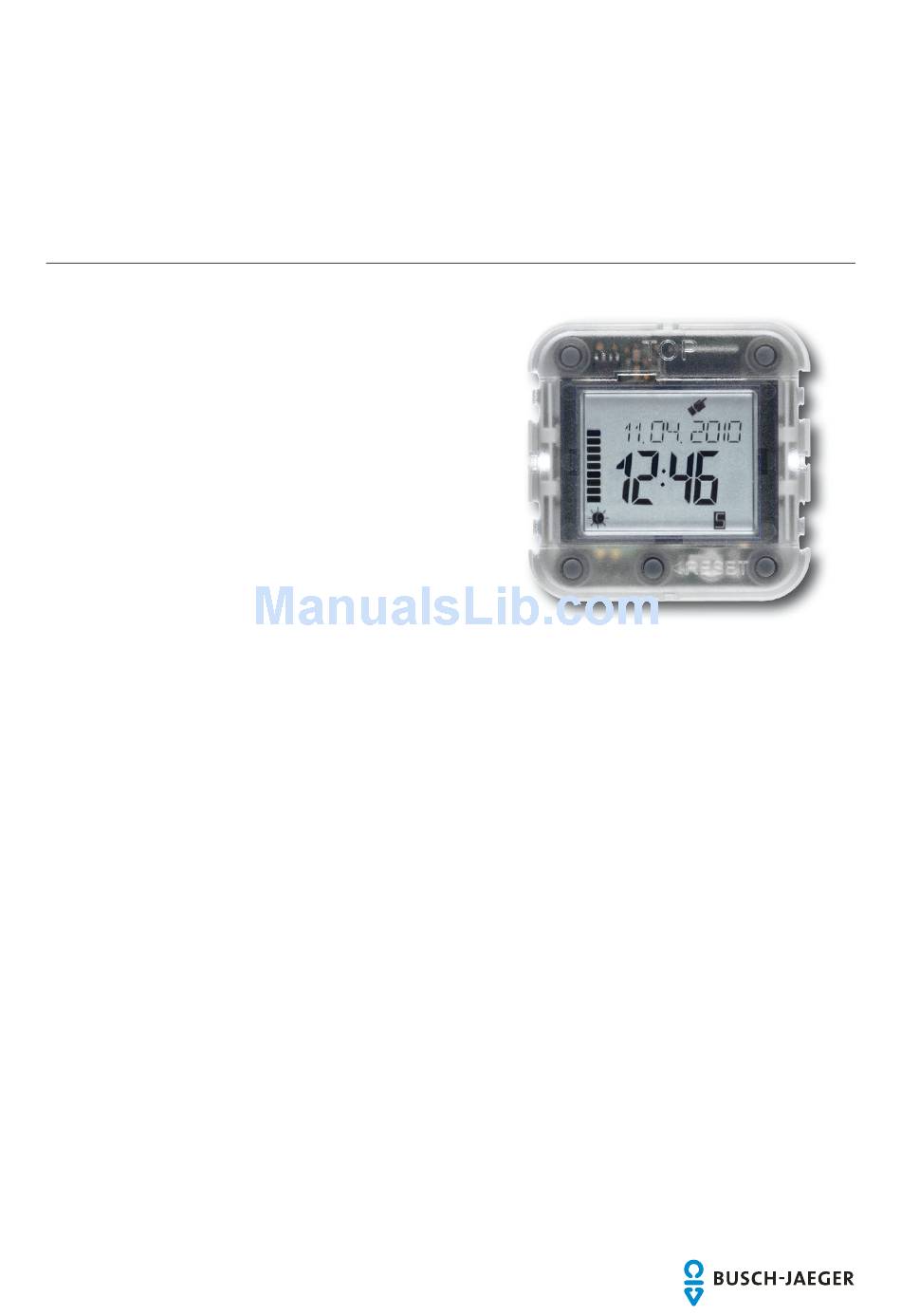

Comfort timer control element
for blind control
6455
=== Ende der Liste für T extmar ke Cover ===
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Busch-Jaeger Busch-Timer 6455
Summary of Contents for Busch-Jaeger Busch-Timer 6455
-
Page 1: Operating Instructions
1473-1-8164 │ Rev. 01 │ 17.12.2012 Operating Instructions ® Busch-Timer Pos : 2 /#N eus truktur #/Online-Dokumentation (+KN X)/Titelbl ätter/Ti mer/Titelbl att 6455 Jal ousie @ 26\mod_1343372636549_15.doc x @ 225649 @ @ 1 Comfort timer control element for blind control 6455 === Ende der Liste für T extmar ke Cover ===... -
Page 2: Table Of Contents
Operating Instructions ® Busch-Timer Pos : 4 /#N eus truktur #/Online-Dokumentation (+KN X)/Inhalts verz eic hnis (--> Für alle D okumente <--)/Inhalts verz eichnis @ 19\mod_1320649044386_15.doc x @ 109653 @ @ 1 Safety ..................................3 Intended use ................................3 Environment ................................3 Setup and function .............................. -
Page 3: Safety
Operating Instructions ® Busch-Timer Safety Pos : 6 /#N eus truktur #/Online-Dokumentation (+KN X)/Ü bersc hriften (--> Für alle Dokumente <--)/1. Ebene/S - T/Sicherheit @ 18\mod_1302612791790_15.doc x @ 103357 @ 1 @ 1 Safety Pos : 7 /#N eus truktur #/Online-Dokumentation (+KN X)/Sicherheits hinweis e und Hi nweis e (--> F ür all e D okumente <--)/Warnhinweis e/Sicherheit - 230 V @ 18\mod_1302606816750_15.doc x @ 103308 @ @ 1 Warning Electric voltage! Risk of death and fire due to electrical voltage of 230 V. -
Page 4: Setup And Function
Operating Instructions ® Busch-Timer Setup and function Pos : 14 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/1. Ebene/A - F /Aufbau und Funkti on @ 11\mod_1279185435352_15.doc x @ 83027 @ 11 @ 1 Setup and function Pos : 15 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Aufbau und Funkti on/Ti mer/Verwendung 6455 Jal ousie @ 28\mod_1346939803635_15.doc x @ 230406 @ 2 @ 1 The timer control element described in these instructions serves for the manual and time-controlled switching of blinds, roller shutters and awnings. -
Page 5: Brightness Sensor
Operating Instructions ® Busch-Timer Setup and function Pos : 21 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/G - L/H elligkeitss ensor @ 28\mod_1347004848616_15.doc x @ 232236 @ 222222 @ 1 Brightness sensor Pos : 22 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Aufbau und Funkti on/Ti mer/Hellig keits sens or - 6455 J alousie @ 28\mod_1347005872059_15.doc x @ 232249 @ 312 @ 1 The connection of brightness sensors makes the automatic closing of blinds possible as anti-glare during intense sunlight or as protection for furnishings. -
Page 6: Operation
Operating Instructions ® Busch-Timer Operation Pos : 26 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/1. Ebene/A - F /Bedi enung @ 11\mod_1279185541649_15.doc x @ 83043 @ 2222 @ 1 Operation Pos : 27 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/G - L/Hi nweis e z ur Bedienung @ 28\mod_1347261113115_15.doc x @ 232443 @ 2222222 @ 1 Hints on operation Pos : 28 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Hi nweise zum Betrieb und zur Bedi enung - 6455 @ 26\mod_1343381552750_15.doc x @ 225733 @ 2222222 @ 1 In the event of a power failure, the internal clock continues to operate for about 14 hours. -
Page 7: Key Assignment
Operating Instructions ® Busch-Timer Operation Pos : 30 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/S - T /Tastenbel egung @ 23\mod_1336978335991_15.doc x @ 209274 @ 22333333223 @ 1 Key assignment Pos : 31 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Tas tenbel egung - 6455 Jal ousie @ 26\mod_1343374210951_15.doc x @ 225663 @ 3 @ 1 Fig. -
Page 8: Display And Icons
Operating Instructions ® Busch-Timer Operation Pos : 35 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/A - F /Displ ay und Symbol e @ 25\mod_1340698574878_15.doc x @ 220111 @ 33333333 @ 1 Display and icons Pos : 36 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Dis pl ay - 6455 J alousi e @ 28\mod_1346940777328_15.doc x @ 231020 @ 233333333 @ 1 Fig. -
Page 9: Overview Of The Menu Structure
Operating Instructions ® Busch-Timer Operation Pos : 38 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/U - Z/Ü bersic ht der M enüstr uktur @ 28\mod_1346940971928_15.doc x @ 231074 @ 33333333333 @ 1 Overview of the menu structure Pos : 39 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/M enüs truktur 6455 J al ousi e @ 28\mod_1346926918298_15.doc x @ 230393 @ 33333333 @ 1 Menu Menu items... - Page 10 Operating Instructions ® Busch-Timer Operation Continuation: Overview of the menu structure Menu Menu items Indicators Setting (function) Sensor The menus is only displayed if a sensor has Sun protection 0 … 9 / - been connected. Set the brightness value at which the blind Twilight 0 …...
-
Page 11: Adjusting The Device
Operating Instructions ® Busch-Timer Operation Pos : 41 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/G - L/Ger äteei nstellungen @ 18\mod_1302768847744_15.doc x @ 103548 @ 333333333333 @ 1 Adjusting the device Pos : 42 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Geräteeins tellungen Hi nweis 6455_6456_1098 @ 26\mod_1343377008365_15.doc x @ 225691 @ 322 @ 1 All settings of the device are carried out supported by text-controlled operator prompting. -
Page 12: Setting Date And Time
Operating Instructions ® Busch-Timer Operation Pos : 46 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/A - F /Datum und Uhrz eit ei nstellen @ 28\mod_1347000521439_15.doc x @ 231876 @ 23233333222 @ 1 5.6.2 Setting date and time Pos : 47 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Einstellungen Datum/Uhrz eit - 6455 @ 26\mod_1343378823018_15.doc x @ 225719 @ 33323 @ 1 Fig. -
Page 13: Reset (Resetting The Device)
Operating Instructions ® Busch-Timer Operation Pos : 49 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/R üc ksetzen des Ger ätes - 6455_6456 @ 26\mod_1343199854442_15.doc x @ 225333 @ 2223333333 @ 1 5.6.3 RESET (resetting the device) Pos : 36 /#Neustr uktur#/Online-Dokumentati on/Bedienung/T emperaturregl er/Rüc ksetz en des Ger ätes - 1098_6455 @ 26\mod_1343199854442_1.doc x @ 225331 @ 111111111111111111111111111111111111111111111111111111111111111112221212212221112212211111121221112212222121111222112111222221132121112212221221111111122222222222222222222222222222221 @ 4 Fig. -
Page 14: Operating Modes
Operating Instructions ® Busch-Timer Operation Pos : 51 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/A - F /Betriebs arten @ 13\mod_1286276050737_15.doc x @ 91535 @ 222222 @ 1 Operating modes Pos : 52 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Betriebs arten - 6455 J al ousi e @ 26\mod_1343390669973_15.doc x @ 225788 @ 233 @ 1 AUTO MANUAL HOLIDAY... -
Page 15: Deleting Switching Times
Operating Instructions ® Busch-Timer Operation Pos : 54 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/S - T /Sc haltz eiten l ösc hen @ 26\mod_1343388128693_15.doc x @ 225775 @ 4442222 @ 1 5.7.1 Deleting switching times Pos : 55 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Sc hal tzei ten l ösc hen - 6455_6456 @ 26\mod_1343388058618_15.doc x @ 225761 @ 344 @ 1 To be able to delete the switching times during an incorrect entry, the procedure is described here first. -
Page 16: Setting Switching Times
Operating Instructions ® Busch-Timer Operation Pos : 57 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/S - T /Sc haltz eiten einstellen @ 26\mod_1343392865770_15.doc x @ 225802 @ 3333 @ 1 Setting switching times Pos : 58 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Sc hal tzei ten eins tell en (Ei nleitung) @ 28\mod_1346999135048_15.doc x @ 231603 @ 3343 @ 1 The settings of the switching times that are available and how the menu items are called up is described here. - Page 17 Operating Instructions ® Busch-Timer Operation Pos : 63 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Einstellungen Bl oc k- Programmier ung - 6455 J al ousi e @ 28\mod_1346999606310_15.doc x @ 231672 @ 3 @ 1 Fig. 11: Menu item – Block Sequence of operating steps Button Display...
-
Page 18: Astro Function
Operating Instructions ® Busch-Timer Operation Pos : 65 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/A - F /As tro-F unktion @ 28\mod_1346999843259_15.doc x @ 231685 @ 13333 @ 1 5.8.2 ASTRO function Pos : 66 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Astr o-Funktion (Ei nleitung) - 6455 @ 28\mod_1346999920136_15.doc x @ 231698 @ 2212 @ 1 By activating the astro function the switching times are automatically adjusted each day to the yearly process of sunrise and sunset. - Page 19 Operating Instructions ® Busch-Timer Operation Continuation: Sequence of operating steps Button Display Entry / Comments - Set the time shift for the specified astro time via the arrow buttons, so that the switching time is adapted to the regional conditions. 0:20 In this example the up-time has been pushed back 20 minutes.
-
Page 20: Individual Switching Times
Operating Instructions ® Busch-Timer Operation Pos : 69 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/G - L/Indi viduell e Schaltz eiten @ 28\mod_1347000174088_15.doc x @ 231804 @ 2222122 @ 1 5.8.3 Individual switching times Pos : 70 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Einstellungen Indi vi duelle Schaltz eiten - 6455 Jal ousie @ 28\mod_1347000228517_15.doc x @ 231817 @ 1122 @ 1 The times for moving up and down for each day can be set independent of each other via menu item "Individual". -
Page 21: Additional Switching Times
Operating Instructions ® Busch-Timer Operation Pos : 72 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/U - Z/Z us atz-Schaltz eiten @ 28\mod_1347000356375_15.doc x @ 231830 @ 211111111 @ 1 5.8.4 Additional switching times Pos : 73 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Einstellungen Z usatz-Sc haltz eiten - 6455 J al ousi e @ 28\mod_1347000401334_15.doc x @ 231863 @ 21 @ 1 An additional up and down command can be set for each weekday in menu item "Additional switching times". -
Page 22: Calling Up Special Functions
Operating Instructions ® Busch-Timer Operation Pos : 75 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/S - T /Sonderfunktionen aufrufen @ 28\mod_1347000678094_15.doc x @ 231952 @ 2211111112222 @ 1 Calling up special functions Pos : 76 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Sonderfunkti onen aufrufen (Ei nleitung) - 6455-1098 @ 28\mod_1347000761227_15.doc x @ 231965 @ 311 @ 1 The settings of the special functions that are available and how the menu items are called up is described here. -
Page 23: Return Pulse
Operating Instructions ® Busch-Timer Operation Pos : 80 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/P - R /Rüc kfahri mpuls @ 28\mod_1347002347378_15.doc x @ 231978 @ 22222 @ 1 5.9.2 Return pulse Pos : 81 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Einstellungen - Sonderfunktionen - Rüc kfahri mpuls - 6455 J al ousi e @ 26\mod_1343815961406_15.doc x @ 226444 @ 2 @ 1 With function "Return pulse"... - Page 24 Operating Instructions ® Busch-Timer Operation Sequence of operating steps Button Display Entry / Comments - Press the menu button to switch to the setting mode. Switching times Special functions - Select menu "Special functions" via the arrow buttons. Additional switching - Press the OK button.
-
Page 25: Duration Of Down Movement
Operating Instructions ® Busch-Timer Operation Pos : 83 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/A - F /Abfahr dauer @ 28\mod_1347002533639_15.doc x @ 232151 @ 222222 @ 1 5.9.3 Duration of down movement Pos : 84 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Einstellungen - Sonderfunktionen - Abfahr dauer - 6455 J alousie @ 26\mod_1343816034665_15.doc x @ 226457 @ 22 @ 1 With the 'duration of downward movement' setting the movement to a freely selectable intermediate position between the upper and lower setting is possible. - Page 26 Operating Instructions ® Busch-Timer Operation Sequence of operating steps Button Display Entry / Comments - Press the menu button to switch to the setting mode. Switching times Special functions - Select menu "Special functions" via the arrow buttons. Additional switching - Press the OK button.
-
Page 27: Astro Blocking Time
Operating Instructions ® Busch-Timer Operation Pos : 86 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/A - F /As tro-Sperrzeit @ 28\mod_1347002725649_15.doc x @ 232164 @ 144444222224 @ 1 5.9.4 ASTRO blocking time Pos : 87 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Einstellungen - Sonderfunktionen - As tro-Sperrzeit - 6455_6456 Jal ousie @ 26\mod_1343816103336_15.doc x @ 226470 @ 212 @ 1 The set switching times of the astro function can be limited with the "Astro blockage time"... -
Page 28: Sensor
Operating Instructions ® Busch-Timer Operation Pos : 89 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/3. Ebene/S - T /Sensor @ 28\mod_1347004161033_15.doc x @ 232177 @ 222221142222222224 @ 1 5.9.5 Sensor Pos : 90 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Einstellungen - Sonderfunktionen - Sensor - 6455 J al ousi e @ 26\mod_1343816164567_15.doc x @ 226483 @ 22222222124 @ 1 The "Sensor"... -
Page 29: Twilight Function
Operating Instructions ® Busch-Timer Operation 5.9.5.2 Twilight function Fig. 20: Menu item – Sensor / Twilight Sequence of operating steps Button Display Entry / Comments - Press the menu button to switch to the setting mode. Switching times Sensor - Select menu "Sensor" via the arrow buttons. - Press the OK button. -
Page 30: Display During Mains Power Failure
Operating Instructions ® Busch-Timer Operation Pos : 92 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/2. Ebene/A - F /Displ ayanz eige bei N etz aus fall @ 28\mod_1347004363479_15.doc x @ 232210 @ 111111112112111 @ 1 5.10 Display during mains power failure Pos : 93 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Bedi enung/Ti mer/Bedi enung nac h N etz ausfall - 6455 @ 28\mod_1347004426229_15.doc x @ 232223 @ 21133333333334 @ 1... -
Page 31: Technical Data
Operating Instructions ® Busch-Timer Technical data Pos : 95 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/1. Ebene/S - T /Technisc he Daten @ 11\mod_1279185386320_15.doc x @ 83019 @ 2212222211111112 @ 1 Technical data Pos : 96 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Technisc he Daten/Ti mer/Technisc he Daten 6455_6456 @ 26\mod_1343660576925_15.doc x @ 226154 @ 22122 @ 1 General Power reserve Protection type... -
Page 32: Mounting / Installation
Operating Instructions ® Busch-Timer Mounting / Installation Pos : 98 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Übersc hriften (--> Für all e D okumente <--)/1. Ebene/M - O/M ontage / Installation @ 18\mod_1302613966111_15.doc x @ 103373 @ 2222222222222222222 @ 1 Mounting / Installation Pos : 99 /#Neustr uktur#/Online-Dokumentati on (+KN X)/Sic herheits hinweise und Hinweis e (-->... - Page 33 Central sales service: third parties without prior written consent by ABB. Phone: +49 (0) 2351 956-1600 Fax: +49 (0) 2351 956-1700 Copyright© 2012 Busch-Jaeger Elektro GmbH All rights reserved === Ende der Liste für T extmar ke Bac kc over ===...
