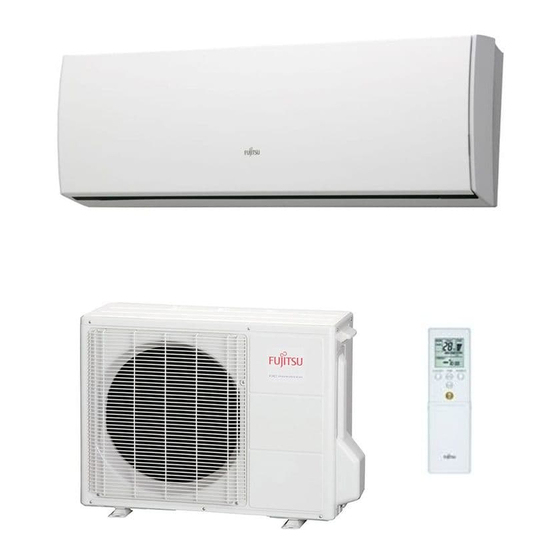

Fujitsu ASYG12LUCA Service Manual

Split type room air conditioner wall mounted type
Hide thumbs Also See for ASYG12LUCA:

Advertisement

Table of Contents

See also: Design & Technical Manual
SPLIT TYPE
ROOM AIR CONDITIONER

WALL MOUNTED TYPE

Indoor unit
ASYG12LUCA
ASYG14LUCA
CONTENTS
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
ERROR DETECTION . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
Outdoor unit
AOYG12LUC
AOYG14LUC
1
2
3
4
5
8
11
13
18
21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASYG12LUCA and is the answer not in the manual?

Questions and answers

Related Manuals for Fujitsu ASYG12LUCA

Summary of Contents for Fujitsu ASYG12LUCA

  • Page 1: Table Of Contents

    SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor unit Outdoor unit ASYG12LUCA AOYG12LUC ASYG14LUCA AOYG14LUC CONTENTS SPECIFICATIONS....DIMENSIONS ..... .

  • Page 2: Specifications

    SPECIFICATIONS ELECTRICAL DATA NOISE LEVEL TYPE Cool & heat inverter High speed 43 dB 45 dB INDOOR INDOOR UNIT ASYG12LUCA ASYG14LUCA Middle speed 37 dB 40 dB UNIT Low speed OUTDOOR UNIT AOYG12LUC AOYG14LUC 32 dB 33 dB Cooling Quiet...

  • Page 3: Dimensions

    DIMENSIONS unit : mm INDOOR UNIT Drain pipe diameter 16.2 mm Liquid pipe diameter : 6.35 mm Gas pipe diameter : 9.52 mm(12), 12.7 mm(14) OUTDOOR UNIT 2011.05.06...

  • Page 4: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Heat exchanger (indoor unit) 2-Way valve 3-Way valve Muffler Strainer 4-Way valve Expansion valve Heat exchanger (outdoor unit) Strainer Refrigerant direction Cooling Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm) Liquid : 1/4" (6.35 mm) Gas : 1/2"...

  • Page 5: Circuit Diagram

    CONTROLLER PCB ASSY ( MAIN PCB ) CN201 INDOOR UNIT WHITE ORANGE WHITE YELLOW LOUVER CIRCUIT DIAGRAM INDICATOR WHITE PINK ( UP / DOWN ) PCB ASSY WHITE BLUE WHITE WHITE WHITE ORANGE OPEN PANEL CN12 YELLOW BLUE PINK YELLOW OUTDOOR UNIT BLUE WHITE...

  • Page 6: Indoor Pcb Circuit Diagram

    YELLOW B05B-PL I SK-1 PINK BLUE PANEL LIMIT SWITCH CN11 WHITE CONTROL UNIT B02B-PL I RK-1 WHITE ASYG12LUCA : EZ-0100THSE ASYG14LUCA : EZ-0100WHSE CN12 ORANGE OPEN PANEL B06B-PL I RK-1 YELLOW PINK BLUE CONTROLLER PCB ASSEMBLY ( MAIN PCB )
  • Page 7 100/ 100k CONTROLLER PCB ASSEMBLY TO TERMINAL <1/10W> 0.01 3.15A <F> ( MAIN PCB ) 250V 470V <ERZ10V> <LE> 0.01 ASYG12LUCA : K10CH-1002HSE-C1 D1FL20U <F> EE16 5V-2 ASYG14LUCA : K10CH-1003HSE-C1 330/ BLm18 ST03D-140 RD8.2FM D1FL20U <BD102> 420V 470/ I C8 TNY277 1.2k...
  • Page 8 INDOOR UNIT INDICATOR PCB ASSEMBLY K10CX-1000HSE-D0 CN201 8 - JB / PL I D204 L=250 #26 / 1061 UDZS6.2B D201 SLR-343ECT <GREEN> D205 UDZS6.2B D202 SL I-343DCT <ORANGE> SW201 D206 KSHC611BT UDZS6.2B D203 SLR-343ECT <GREEN> R202 <1/4W> C203 C204 <F> I C201 GP1UM271R R201...

  • Page 9: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY AOYG12LUC : EZ-010DHUE COMPRESSOR EMI FILTER TO INDOOR UNIT EMI FILTER EMI FILTER W101 UL1015 AWG20 BLACK WHITE W102 BLACK UL1015 AWG20 WHITE UL3271 AWG16 x 3 SERIAL UL3271 UL1015 AWG20 AWG14 WHITE REACTOR EMI FILTER 13mH, 8A UL1015 AWG14...
  • Page 10 INVERTER ASSEMBLY AOYG14LUC : EZ-01008HUE REACTOR AOYG07,09,12LUC : 13mH, 8A AOYG14LUC : 15mH, 10A EMI FILTER AOYG09LUC only EMI FILTER EMI FILTER TO INDOOR UNIT W101 UL1015 AWG20 BLACK WHITE W102 BLACK UL1015 AWG20 WHITE UL3271 AWG16 x 3 SERIAL COMPRESSOR UL1015 AWG20 UL3271...
  • Page 11 OUTDOOR UNIT CONTROLLER PCB ASSEMBLY AOYG12LUC : K10BO-1000HUE-C1 AOYG14LUC : K10BO-1001HUE-C1 F100 C100 : AOYG14LUC only R401 - R410 POWER SOURCE REACTOR 250V W101 0.1 <3/4W> 1% x 10 AC230V L300 50Hz D102 AOYG14LUC : LL25XB60 x 2 47uH C201 C200 FH100 FH101...

  • Page 12: Indoor Unit Display

    Indoor unit display ER R OR D ETEC TION INDOOR UNIT REMOTE CONTROL If you use a wireless remote control, the lamp on the photo detector unit will output error codes by way of blinking patterns. If you use a wired remote control, error codes OPERATION indicator lamp (green) will appear on the remote control display.
  • Page 13 OUTDOOR UNIT ERROR Discharge temperature abnormal 0.5 second on / 0.5 second off IPM overcurrent protection 0.1 second on / 0.1 second off Thermistor abnormal CT abnormal 2.0 second on / 2.0 second off 0.1 second on / 2.0 second off Compressor location abnormal 5.0 second on / 5.0 second off Fan abnormal...

  • Page 14: Parts (Indoor Unit)

    PARTS INDOOR UNIT Ref. Description Part number Bracket Panel 9318913002 Wire Cover 9318911008 Wire Shield 9318919004 Under Cover 9318879001 Louver U 9318880007 Louver Z 9318881004 Remote Control 9319207018 Remote Control Holder 9318912005 Air Clean Filter Assy 9317250009 2011.03.08...
  • Page 15 INDOOR UNIT Front panel Ref. Description Part number Front Panel Total Assy 9319348001 Air Filter 9318883008 Intake Grille Assy 9319351001 Front Panel 9318876000 Front Panel Cover U 9318910001 Display Plate Holder L 9318894004 Display Plate Holder R 9318895001 Display Plate R 9318893007 Arm Cover 9318900002...
  • Page 16 INDOOR UNIT Evaporator Ref. Description Part number Evaporator Total Assy (12) 9319327006 Evaporator Total Assy (14) 9319327013 Joint Pipe Assy (12) 9319322001 Joint Pipe Assy (14) 9319322018 Joint Pipe Holder 9318901009 Base 9318874006 Filter Guide 9318887006 Evaporator Holder L 9318875003 Air Seal 9319295008 2011.03.11...
  • Page 17 INDOOR UNIT Control box Ref. Description Part number Ref. Description Part number Cover Shield A 9318916003 Gear B 9319294001 Control Box 9318882001 Panel Gear 9319293004 Box Shield Assy 9319344003 Gear Case 9318903003 Controller PCB Assy (12) 9708713038 Switch Case 9319332000 Controller PCB Assy (14) 9708713045 Grille Key Top 9319334004...
  • Page 18 INDOOR UNIT Casing assy Ref. Description Part number Ref. Description Part number Fan Motor 9602947003 Pipe Bracket 9318889000 Crossflow Fan Assy 9319361000 Panel Cover 9319296005 Bearing C Assy 9306628017 Louver Holder 9318886009 Casing Assy 9319342009 R and L Louver 9318885002 Casing 9318873009 Motor Step...

  • Page 19: Parts (Outdoor Unit)

    PARTS OUTDOOR UNIT Ref. Description Part number Ref. Description Part number 1 Front Panel Assy 9317760010 10 Separator Assy 9318340013 Cabinet Left Assy 9318247008 11 Reactor Assy (12) 9900583002 3 Top Panel Assy 9317761055 11 Reactor Assy (14) 9900611019 4 Protective Net 9313941055 12 Motor Bracket Assy 9332289039...
  • Page 20 OUTDOOR UNIT Ref. Description Part number Ref. Description Part number Condenser Total Assy 9332359008 3 way Valve Assy (12) 9315574015 Condenser Assy 9332360004 3 way Valve Assy (14) 9332455007 Inlet Pipe Assy 9315578013 Muffler (12) 9308625007 Separate Pipe Assy 9317200011 Muffler (14) 9316276017 Exit Pipe Assy...
  • Page 21 OUTDOOR UNIT Ref. Description Part number 41 Sealed Panel 9318181005 Controller PCB Assy (12) 9708683010 Controller PCB Assy (14) 9708683027 43 PCB Holder 9318182002 Inverter Case Assy 9318242003 45 Terminal Bracket 9317603010 46 Terminal 9900435028 -- Outdoor Thermistor 9900565008 -- Thermistor Assy 9900628000 2011.04.19...

  • Page 22: Accessories

    ACCESSORIES INDOOR UNIT Name and Shape Part number Bracket panel 9318913002 Remote control 9319207018 Remote control holder 9318912005 Battery (penlight) 0600185046 Cloth tape 9308117007 Tapping screw (big) 4 x 25) 0700076046 Tapping screw (small) 0700019036 3 x 12) OPTION Name and Shape Part number Air cleaning filter UTR-FA16...
  • Page 23 1103G3922...
