CD3300R
Owner's M M anual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD3300R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for cec CD3300R

Summary of Contents for cec CD3300R

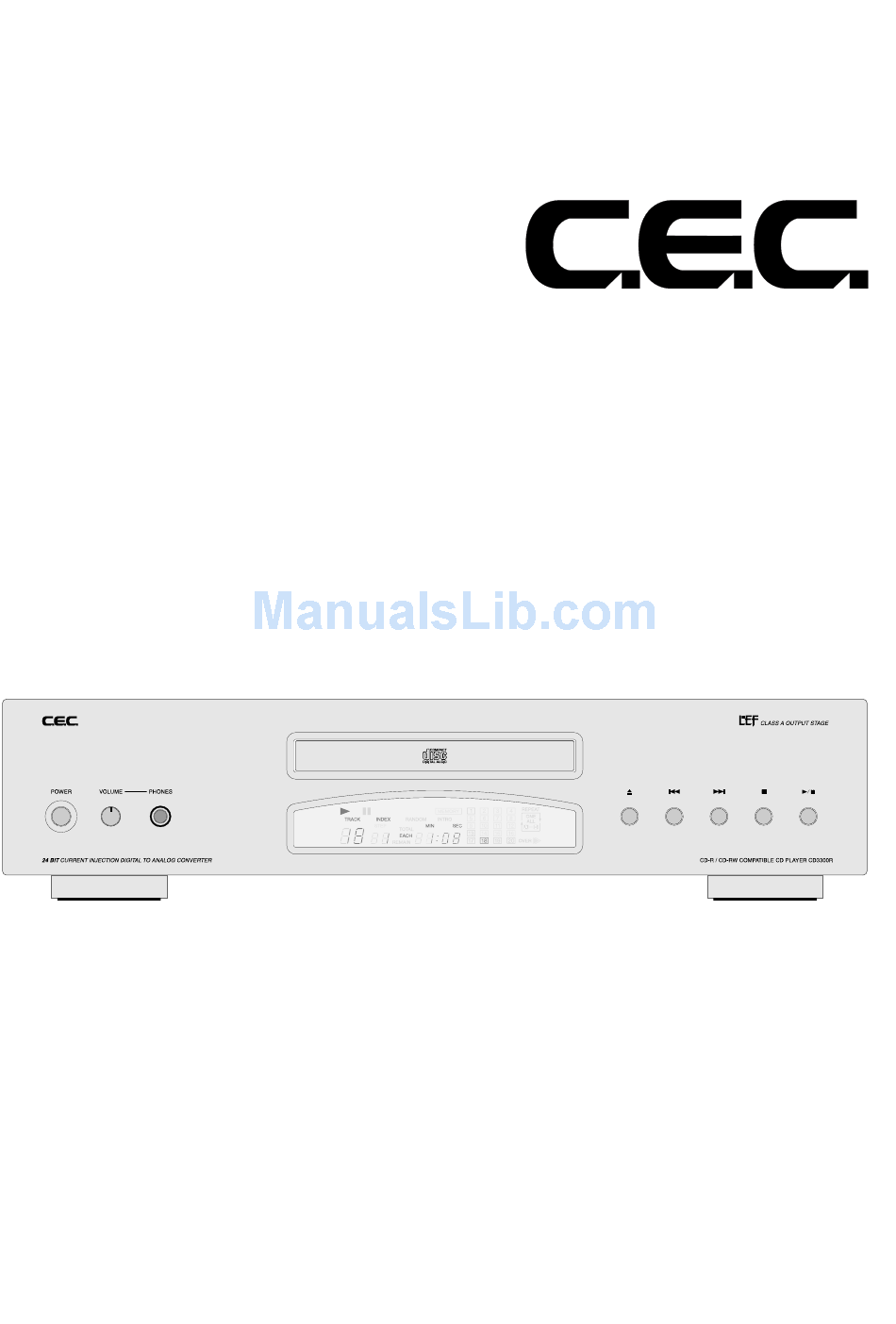

  • Page 1 CD3300R Owner’s M M anual...

  • Page 2: Important Safety Instructions

    Fuses • The fuses are inside of the unit and should be changed by qualified personnel only. Caution • Changes or modifications to this equipment not expressly approved by CEC Co., Ltd. for compliance will void the user’s warranty.
  • Page 3 Introduction Thank you for purchasing CD3300R! Please read the manual carefully in order to use your CD3300R in the best possible way. CD3300R is a high end sounding CD player, with several unique or special technical features, an outstanding Digital to Analog Converter and Analog Output Stage without overall negative feedback loop (NFB):...

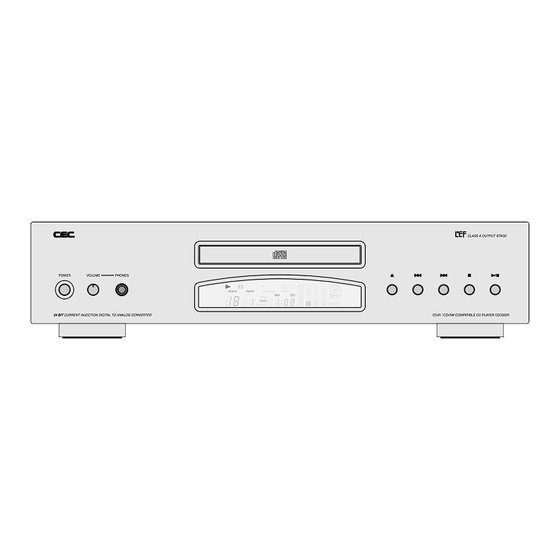

  • Page 4: Front Panel Functions

    Front Panel Functions Power - Power switch. Turns the unit on / off. Phones - 6.3mm standard headphone terminal and headphone volume control. The outputs on the backside of the unit are not affected by the volume control. Open / Close - Tray open and close Music Skip - Jump to next or previous track Stop...

  • Page 5: Rear Panel Functions

    - Standard digital (SPDIF) output. The cable impedance should be 75 Ohm. AES/EBU - Balanced digital output according to the AES/EBU standard. The highest quality link to connect CD3300R with other compatible digital audio device. The cable impedance should be 110 Ohm. Pinning: 1=Ground, 2=Hot, 3=Cold.

  • Page 6: Remote Control

    • Avoid exposure of the remote sensor to direct sunlight or other light sources as such exposure can cause malfunction. • When operating the remote control unit, pay attention to a free way to the CD3300R, otherwise control may not be possible.

  • Page 7: Programmed Playback

    Programmed Playback 1. In stop mode, press MEMO. The player enters the program mode. The memory indicator lights on the display. The TRACK No. and STEP No. indicators blink. 2. Press numeric buttons They are automatically stored in the program memo- ry order.

  • Page 8: Specifications

    • External dimensions (w / h / d): approx.: 435 x 115 x 310 mm • Weight: approx.: 4.6 kg Note: • Specifications and design subject to possible modification without notice, due to improvements. Errors excepted. CEC Co., Ltd. Saitama, Japan...
