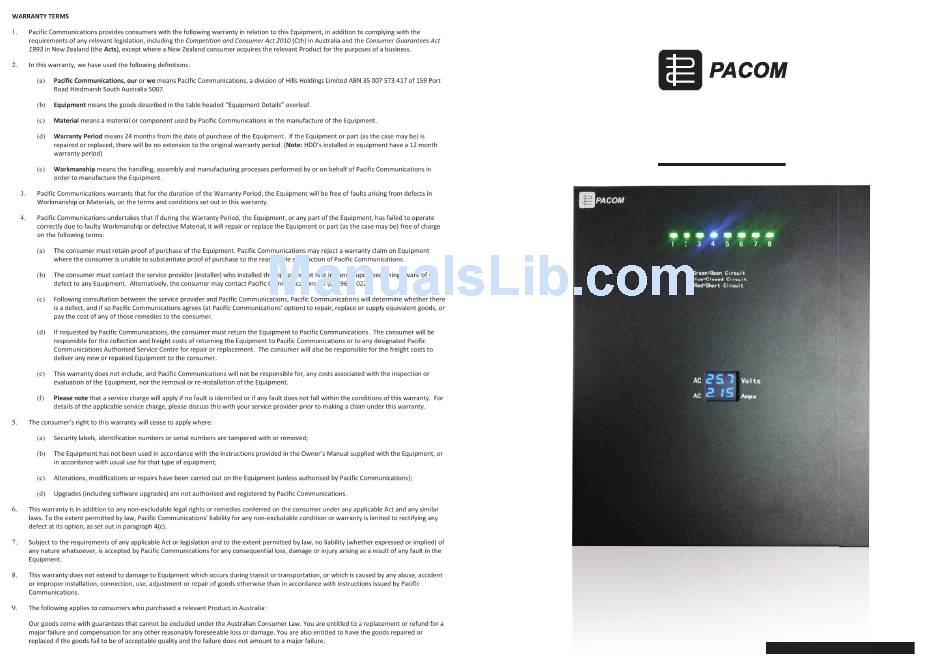

- Page 1 CCTV Power Supply Manual 8 Channel 8Amps 24VAC Wall Mount 24VAC Wall Mount Model: PAC-24WM0808(S84746) Model: PAC-24WM0808(S84746)
- Page 2 PAC-24WM0808(S84746) PAC-24WM0808(S84746) PAC-24WM0808(S84746) Overview: This PACOM Wall Mount CCTV Power Supply provides 24VAC distributed Tri-Colour LED status indicator for each output: via eight (8) PTC protected outputs for powering CCTV Cameras and other video accessories. Green Blue Open Closed Circuit Short Circuit Notes: Power On/Off...
- Page 3 PAC-24WM0808(S84746) PAC-24WM0808(S84746) Parallel Output Configuration By connecting more than 1 output in parallel the normal current availability can be doubled, tripled or even quadrupled 24VAC Cable Distance (meters) 24VAC Cable Distance (meters) Normal Current Limit X 2 (208ma) (208ma) Load...
-
Page 4: Troubleshooting
PAC-24WM0808(S84746) PAC-24WM0808(S84746) Troubleshooting 1. Power does not turn on • Check front panel leds and rear main fuse • Ensure power cord is firmly in its socket and the switch is in the on position • Ensure you have 240VAC supply to the Power Supply Unit 2.
