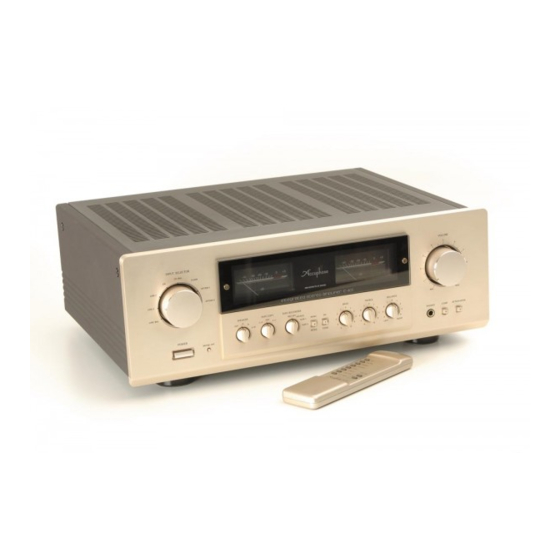

INTEGRATED STEREO AMPLIFIER
E - 4 0 7
m Triple parallel push-pull output stage delivers quality power: 180 watts × 2 into 8
ohms m Current feedback principle combines superb sound with total operation stability
m Logic-controlled relays for shortest signal paths m Separator switch allows
independent use of pre/power sections m Large toroidal power transformer m Balanced
inputs m Option board available for playback of analog records
Advertisement
Related Manuals for Accuphase E-407
Summary of Contents for Accuphase E-407

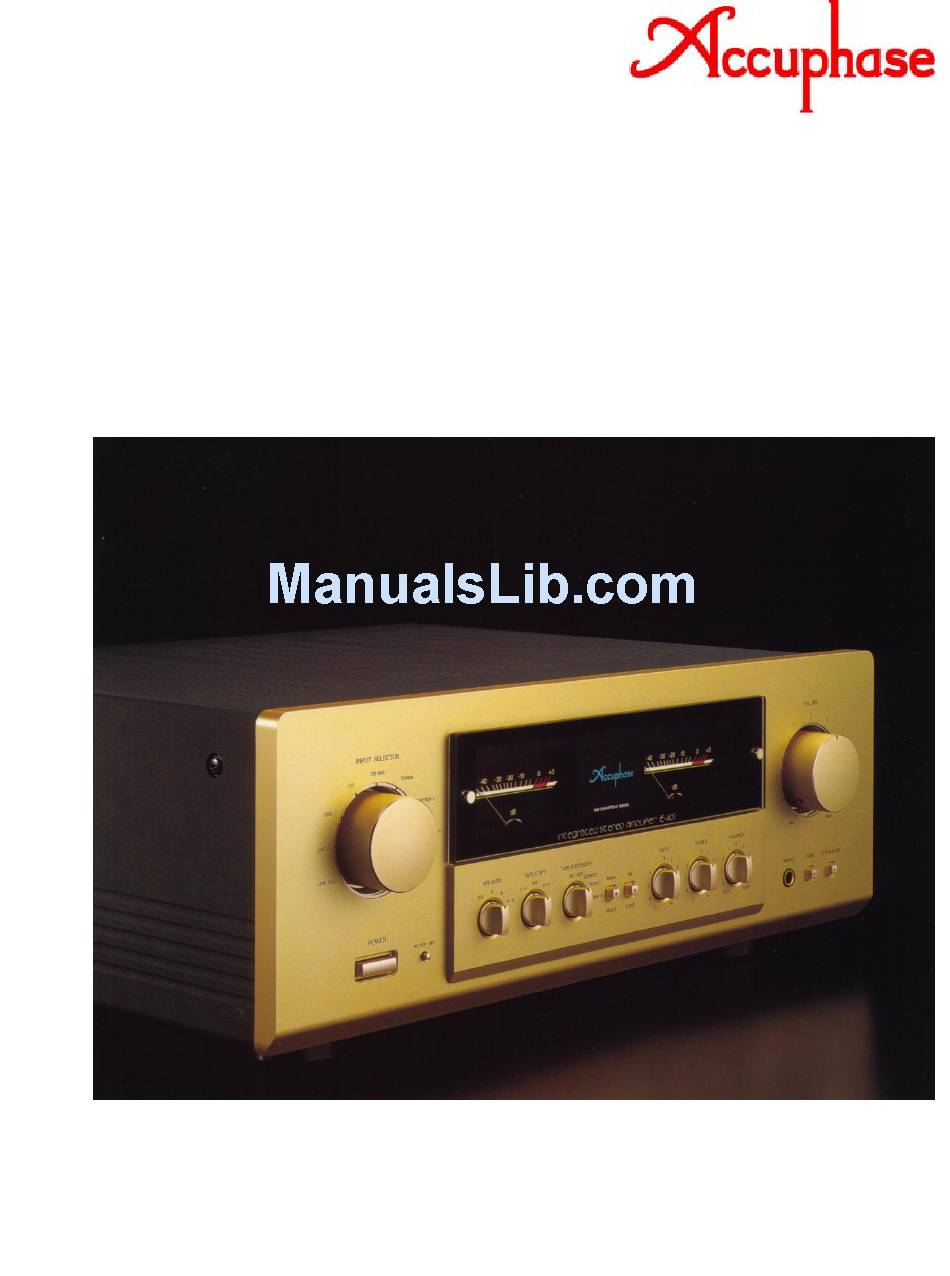

- Page 1 INTEGRATED STEREO AMPLIFIER E - 4 0 7 m Triple parallel push-pull output stage delivers quality power: 180 watts × 2 into 8 ohms m Current feedback principle combines superb sound with total operation stability m Logic-controlled relays for shortest signal paths m Separator switch allows independent use of pre/power sections m Large toroidal power transformer m Balanced inputs m Option board available for playback of analog records...
- Page 2 (current adder in Figure 2) is very low, fier design. Featuring latest technology and us- E-407 is a great addition to any living room. there is almost no phase shift. Phase compensa- ing only the highest quality materials, this inte-...
- Page 3 The power supply section is a critical aspect of rent feedback am- any power amplifier. The E-407 features a large Dedicated headphone amplifier for best sound plifier circuitry toroidal power transformer with a rating of 600 The E-407 provides a separate VA.
- Page 4 Option Boards anced connectors The rear panel of the E-407 provides two slots in which an optional input board can be installed easily. The input selector of the E-407 controls a total of Two types of boards, as shown below, are available.
