Summary of Contents for Breville VMW212

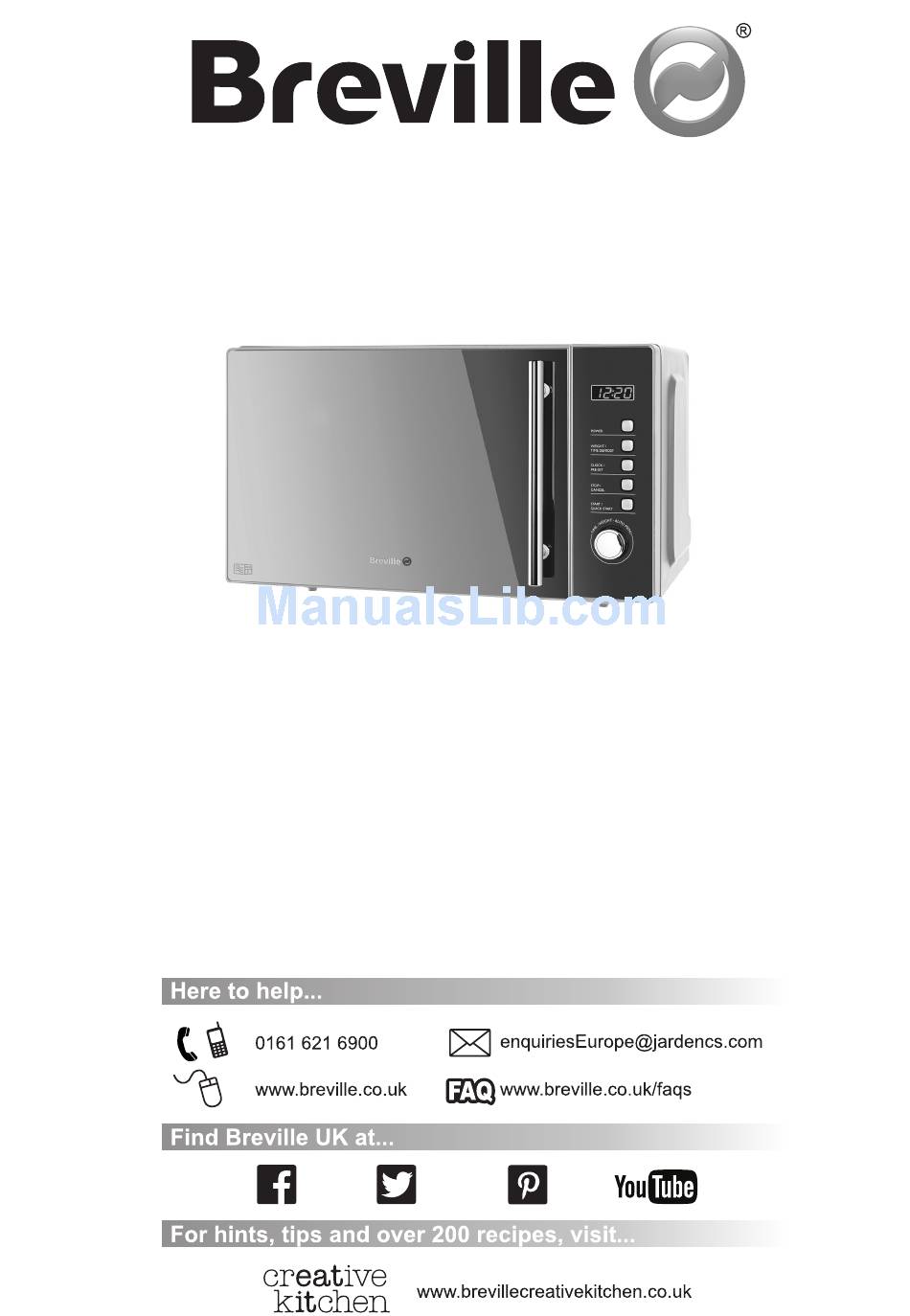

- Page 1 easytronic control microwave oven...
-
Page 3: Table Of Contents
contents Product safety........................4 Before first use ........................6 Precautions......................... 6 Controls ..........................9 Microwave cooking basics ....................10 Switching on ........................10 Cookware test........................11 Materials you can use in your microwave oven ..............12 To pause cooking......................13 To stop cooking......................... 13 Setting the clock ....................... -
Page 4: Product Safety
product safety READ CAREFULLY AND KEEP FOR FUTURE REFERENCE This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 product safety The microwave oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation. This appliance is designed to be used on a work top or table only. Never install it in a cupboard or cabinet.
-
Page 6: Before First Use
before first use Retain the packaging in which the microwave oven was supplied so that in the event that the equipment needs to be returned it can be suitably repacked. Open the packaging carefully and remove each item for inspection. Ensure that all packaging materials are removed from the inside of the door. -
Page 7: Getting Started
getting started Setting up your microwave oven Do not operate your oven if it is damaged. Place the drive shaft into the circular recess in the oven floor. You may need to rotate it slightly until it fits to the coupling correctly and slides down all the way. Place the turntable roller ring into the recess in the oven floor. - Page 8 getting started Do not install the oven over equipment that produces heat, such as a range cooker or cooking hob. Failure to follow this instruction could damage the oven and would make the warranty void. Do not place the oven in locations of moisture or high humidity or near combustible materials.
-
Page 9: Controls
controls... -
Page 10: Microwave Cooking Basics
using your microwave oven Microwave cooking basics Never operate your microwave oven when it is empty as this can damage your oven. Do not cook directly on the glass tray. Place the food in a microwave-proof dish for example. Arrange the food with the thickest areas to the outside of the dish. Cook for the shortest indicated time but do not under-cook. -
Page 11: Cookware Test
using your microwave oven Cookware test There may be certain non-metallic containers that are not safe to use for microwave cooking. If in doubt, you can test the COOKWARE following the procedure below. • Place the empty container in the oven. •... -
Page 12: Materials You Can Use In Your Microwave Oven
using your microwave oven Materials you can use in your microwave oven Material Notes Aluminium foil For shielding only. Small, smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if the foil is too close to the oven walls. The foil should be at least 25mm (1 inch) away from the oven walls. -
Page 13: To Pause Cooking
using your microwave oven Never operate your microwave oven when it is empty as this will cause damage. To pause cooking To pause cooking at any time during the cooking sequence, you can either: 1. Open the oven door. 2. Press the Stop/Cancel button once. To resume cooking, close the oven door and press the Start/Quick Start button. -
Page 14: Setting The Clock
using your microwave oven Setting the clock The clock displays the time of day in 24-hour format. To set the clock carry out the following: 1. Press the Clock/Pre-Set button once. 2. Turn the Time/Weight/Auto Menu knob until the required hour appears on the display. -
Page 15: Microwave Cooking
using your microwave oven Microwave cooking To cook with microwave power alone, press the Power button a number of times to select a cooking power level, press the Start/Quick Start button to confirm the power setting and then use the Time/Weight/Auto Menu knob to set the desired cooking time. The longest cooking time is 95 minutes. -
Page 16: Multistage Cooking (Programmed Sequence)
using your microwave oven Multistage cooking (programmed sequence) The oven may be set to carry out a sequence of up to two cooking stages. The Speed Defrost function can be used as part of the sequence before the cooking stage. The possible sequences are: •... -
Page 17: Defrosting
using your microwave oven Defrosting The oven has two modes of defrosting available: Weight Defrost and Time Defrost. The Weight Defrost mode requires that you know the weight of the food to be defrosted. The maximum allowable weight is 2 kg. The Time Defrost mode requires you to know the defrost time for the food to be defrosted. -
Page 18: Intelligent Auto Cook Menu
using your microwave oven Intelligent Auto Cook menu The Intelligent Auto Cook feature means that it is not necessary to program the cooking time or select the correct power. All you need to do is specify the type and quantity of food that you want to cook and the intelligent programs do all the rest for you. -
Page 19: Quick Start Cooking
using your microwave oven Quick start cooking The Quick Start cooking feature allows you to begin microwave cooking at the press of a single button. The microwave power is fixed at maximum (100%) and the maximum cooking time using this method is 95 minutes. Each press of the Start/Quick Start button increases the cooking time by 30 seconds. -
Page 20: Delayed Start (Timed) Cooking
using your microwave oven Delayed Start (timed) Cooking You can program your oven to delay the start of cooking e.g. if you are going out and you would like your meal to be ready on your return. Before programming the start time, make sure that your oven clock is set correctly. -
Page 21: Child-Proof Lock
using your microwave oven Child-proof lock When the child-proof lock is set, it disables the control panel buttons. This prevents unsupervised operation by young children, or any other person who does not know how to reset the lock. This feature may only be set when the oven is not cooking in which case it would normally be in Clock mode (displaying the time of day). -
Page 22: Care And Maintenance
care and maintenance Before carrying out any cleaning, turn off the oven and remove the plug from the mains supply socket. The door seal area must be kept clean at all times to eliminate the possibility of microwave energy escaping. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy or high voltage. - Page 23 care and maintenance Removable items The glass turntable may be removed for cleaning. Wash it in warm soapy water or in a dishwasher. Be careful not to chip or scratch the glass as this may cause the turntable to break during use. The turntable roller and oven floor should be cleaned regularly to allow the glass tray to rotate easily and quietly.
-
Page 24: Troubleshooting
troubleshooting Observation Explanation Microwave interfering with TV reception Radio and TV reception may suffer interference when the microwave oven is operating. It is similar to the interference produced by small electrical appliances like food mixers, vacuum cleaners, electric fans, etc. This is normal. The oven light is dim In low power microwave cooking, the oven light may become dim. -
Page 25: Connection To The Mains Supply
connection to the mains supply This appliance must be earthed. This appliance is fitted with either a moulded or rewirable BS1363, 13 amp plug. The fuse should be rated at 13 amps and be ASTA approved to BS1362. If the fuse in a moulded plug needs to be changed, the fuse cover must be refitted. The appliance must not be used without the fuse cover fitted. -
Page 26: After Sales Service
Telephone: 0161 621 6900 Fax: 0161 626 0391 e-mail: enquiriesEurope@jardencs.com Replacement parts For replacement parts, please visit www.breville.co.uk or call us on 0161 621 6900. Troubleshooting For troubleshooting and FAQs visit www.breville.co.uk/faqs Visit Creative Kitchen for access to the best cooking techniques, mouth-watering meals, entertaining ideas and videos to help take you from part-time cook to expert chef in minutes. -
Page 27: Guarantee
guarantee Please keep your receipt as this will be required for any claims under this guarantee. This appliance is guaranteed for 1 year after your purchase as described in this document. During this guaranteed period, if in the unlikely event the appliance no longer functions due to a design or manufacturing fault, please take it back to the place of purchase, with your till receipt and a copy of this guarantee. - Page 28 For Customer Service details, please see the website. www.breville.co.uk e-mail: enquiriesEurope@jardencs.com Telephone: 0161 621 6900 © 2014 Jarden Consumer Solutions (Europe) Limited. All rights reserved. Imported and distributed by Jarden Consumer Solutions (Europe) Limited, Royton, Oldham OL2 5LN, United Kingdom.
