• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Persons should never ride in the dump cart.
Questions, problems, or missing parts? Before returning to your retailer, visit
us online at www.tricam.com and complete the replacement parts submission
form or call our customer service department at 1-800-867-6763,
9 a.m. - 4 p.m., CST, Monday-Friday.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.tricam.com

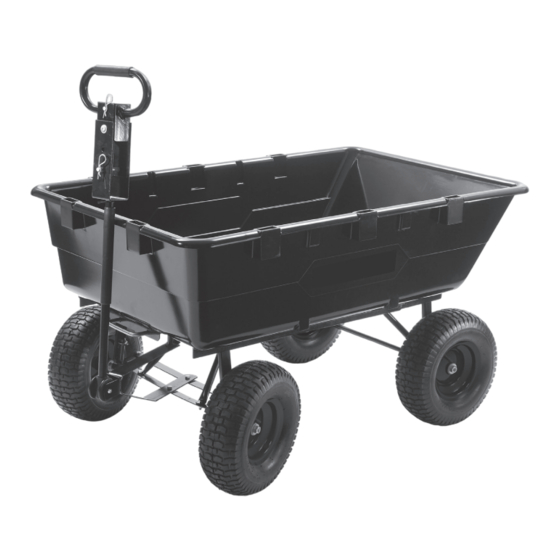

10 CUBIC FOOT
DUMP CART
MODEL # NTE2541D
U.S. Patent #s 6,851,756, 7,210,697,
7,390,065, 7,441,792, 7,818,865, 7,887,141
Canada Patent #s 2,503,869, 2,590,949
China Patent 中国发明专利ZL
200680000909.0
Other U.S. and Foreign Patents Pending
6/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tricam NTE2541D
Summary of Contents for Tricam NTE2541D
- Page 1 Not for recreational use. Persons should never ride in the dump cart. Questions, problems, or missing parts? Before returning to your retailer, visit us online at www.tricam.com and complete the replacement parts submission form or call our customer service department at 1-800-867-6763, 9 a.m.
- Page 3 PACKAGE CONTENTS Part Description Quantity Tray Dump Lock Assembly Rear Strut Rear Frame Rear Axle Assembly Front Frame Front Strut Front Axle Assembly 15" Tire Handle Hardware Kit (see Hardware Contents for details)
- Page 4 HARDWARE CONTENTS Images are not to scale Description Part Description Quantity Picture Part Quantity Picture M8 x 62mm Internal Button Head Bolt M11 Flat Washer M8 x 38mm Carriage Bolt Wheel Spacer M8 x 35mm Carriage Bolt M12 Flat Washer M8 x 20mm Carriage Bolt M8 Lock Nut...
- Page 5 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 30 minutes Tools Required for Assembly: Phillips screwdriver and metric socket set (or two adjustable wrenches).
- Page 6 ASSEMBLY INSTRUCTIONS Fig. 2 2. Attach the front struts (G) to connect the the front axle assembly (H) to the front frame (F) using four M8 x 20mm carriage bolts (DD), using four M8 lock nuts (KK), and four M8 washers (GG), as shown in Fig.
- Page 7 ASSEMBLY INSTRUCTIONS Fig. 4 4. The rear axle assembly (E) attaches to the rear section of the rear frame (D). Double check the rear frame (D) placement before assembling to the tub. The side holes on the rear frame (D) must be towards the rear of FRONT the tray (A).
- Page 8 ASSEMBLY INSTRUCTIONS Fig. 7 5. Attach the rear axle assembly (E) with the rear struts (C) and the rear frame (D) to the tray (A) using five M8 x 38 carriage bolts (BB), one M8 x 35mm carriage bolts (CC), six M8 lock nuts (KK), six M11 washers (HH), and six M8 washers (GG), as shown in Fig.
- Page 9 ASSEMBLY INSTRUCTIONS Fig. 8 6. Attach the rear frame (D) to the front frame (F) using two M8 x 20mm internal button head bolts (EE), two M8 lock nuts (KK), and two M8 washers (GG), as shown in Fig. 8. Hardware Used M8 x 20mm M8 Lock Nut...
- Page 10 ASSEMBLY INSTRUCTIONS Fig. 10 8. Attach the four wheels (I) by first placing the wheel spacers (II) onto each axle, then the wheels (I) and M12 flat washers (JJ), and M12 lock nuts (LL), as shown in Fig. 10. Hardware Used Wheel Spacer M12 Lock Nut M12 Flat Washer...
- Page 11 OPERATION INSTRUCTIONS Fig. 1 USING THE SWIVEL HANDLE 1. Remove clips and cotter pins. 2. Rotate the handle and insert cotter pin. Secure by attaching the clip. 3. The second cotter pin is used to attach the handle to the trailer hitch, as shown in Fig.
- Page 12 0.75in x 2.5in as shown in Fig. 1. REPLACEMENT PARTS LIST For replacement parts, visit us online at www.tricam.com to fill out a replacement parts submission form or call our customer service department at 1-800-867-6763, 9 a.m. - 4 p.m., CST, Monday-Friday...
