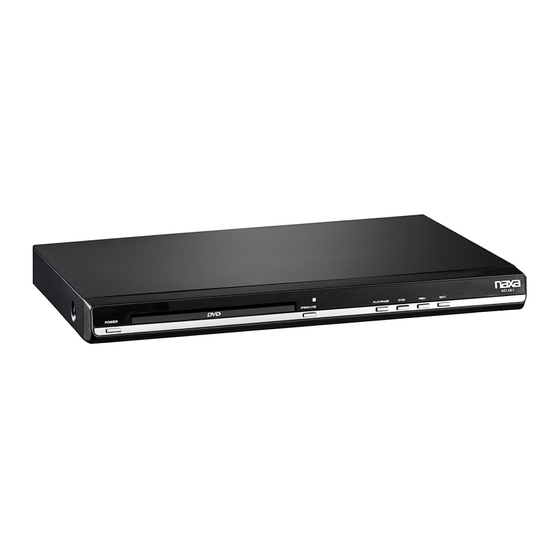

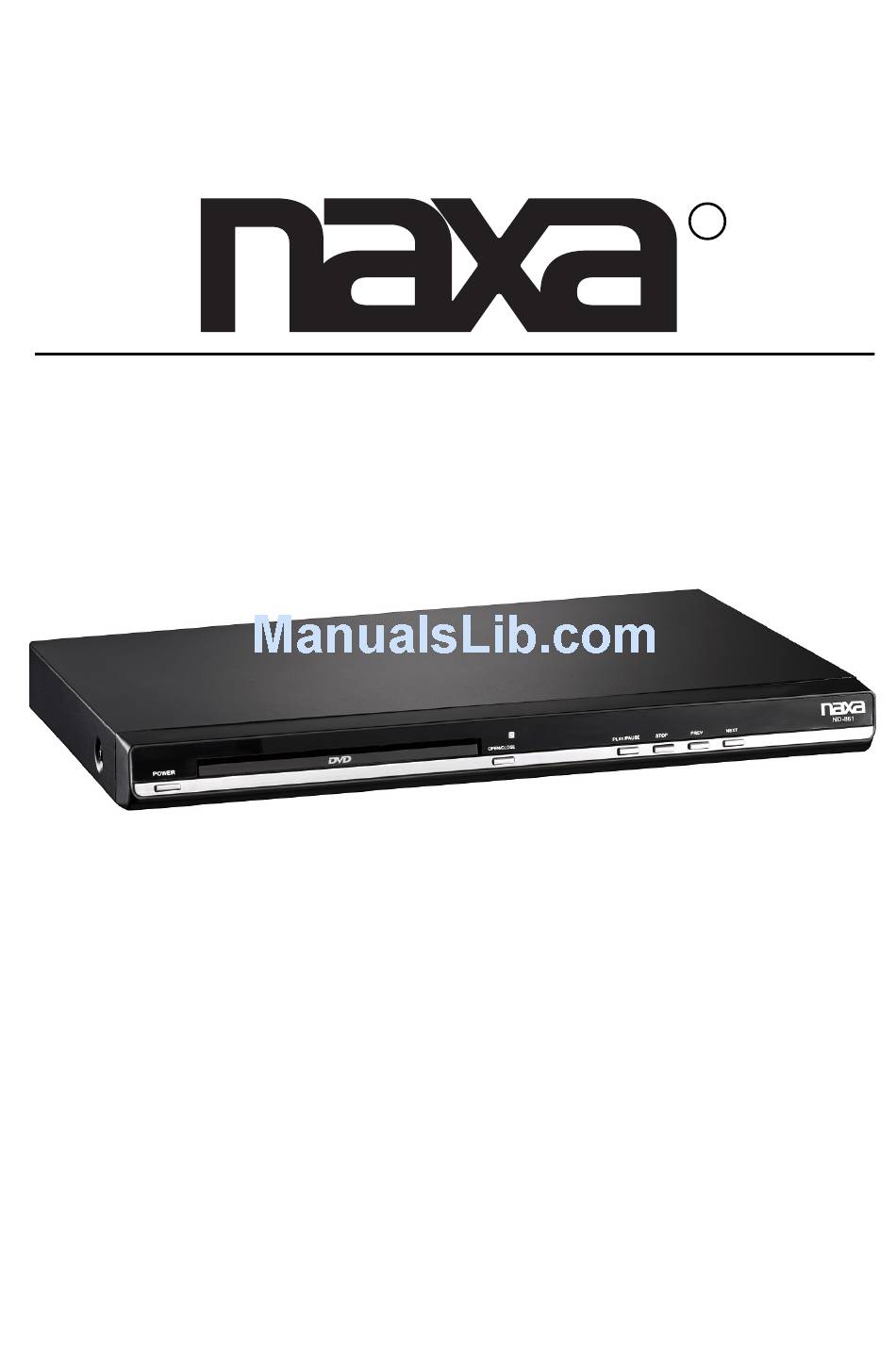

- Page 1 HDMI DVD PLAYER MODEL:ND-861 INSTRUCTION MANUAL PLEASE READ CAREFULLY BEFORE OPERATING...
-
Page 2: Important Safety Instructions
Important Safety Instructions The lightning flash with arrowhead symbol within an equilateral CAUTION triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’ s enclosure that may be of RISK OF ELECTRIC SHOCK sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 Important Safety Instructions Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.
- Page 4 Important Safety Instructions 17) Overloading Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 18) Object and liquid entry Never push objects of any kind into the product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock.
-
Page 5: Notes On Handling
Important Safety Instructions NOTES ON MOISTURE CONDENSATION: NOTES ON HANDLING: • Moisture condensation damages the DVD When shipping the DVD player,always use the player. Please read the following carefully. original shipping carton and packing materials. For maximum protection,repack the unit as it •... -
Page 6: About Discs
About Discs THE REGION NUMBER FOR THIS DVD PLAYER IS: See below for information regarding region numbers. PLAYABLE DISCS: The following discs can be played back on this DVD player: DISC TYPES: Data on most DVDs is divided into sections called titles and then into subsections called chapters, each of which is given a title or chapter number. -
Page 7: Product Overview
Product Overview Power On/Standby Button Play/Pause Button Disc Tray Stop Button Remote Control Receiver Previous Button Power Indicator Next Button Open/Close Button 4 5 6 Power Cable Right Audio Output jack HDMI Output jack Composite Video Output jack Y/PbCb/PrCr Output jack Digital Coxial Audio Output jack Left Audio Output jack... -
Page 8: Remote Control
To confirm the selection or current operation. 8. REV / FWD BUTTONS To perform fast reverse / fast forward playback. 9. PLAY/PAUSE BUTTON To start and pause the playback. ND-861 10. VOL +/– BUTTONS To increase and decrease volume. STOP BUTTON 14. STEP BUTTON To stop the playback. -
Page 9: Language Button
To repeat the playback from point A to point B on a disc. 26. WIDE BUTTON To switch the aspect ratio. 27. REPEAT BUTTON ND-861 To toggle between different repeat modes. 28. SLOW BUTTON Press to toggle between slow motion playback speeds. -
Page 10: Operating The Remote Control
Point the remote control at the DVD player no more than 5 metres from the remote control sensor and within 60° of the front of the DVD player. The operating distance may vary depending on the brightness of the room. WIDE ND-861... -
Page 11: Connecting To A Tv With An Hdmi Cable
Connections When connecting any external AV device or TV, do not connect the power cable to the mains power socket until all other connections are complete. Method 1: Connecting to a Stereo System With a Coaxial Cable coaxial cable not included White AV cable included Yellow... - Page 12 Connections Method 3: Connecting to a TV with a Component Cable Component Video Cable (Y,Pb/Cb,Pr/Cr)(not included) White Yellow A/V Cable (included) Note: Audio Left= white Audio Right= red Yellow cable does not input White Red Yellow...
- Page 13 Connections Method 4: Connecting to a TV with an AV Cable White Note: Video=yellow Audio Left= white Audio Right= red Yellow A/V Cable (included) Method 5: Connecting to a Stereo System and TV with an AV Cable Note: Video=yellow Yellow Audio Left= white Audio Right= red A/V Cable (included)
-
Page 14: Operating System
Operating System Playback of a DVD Unless otherwise stated, all operations described are based on Remote Control use. 1. Insert the AC plug from the DVD player to a conveniently located AC outlet. 2. Connect the DVD player to the external TV Turn on the TV and set it to the input source that the DVD player is connected to. - Page 15 Operating System OSD (ON SCREEN DISPLAY) During playback, press the OSD button repeatedly to read the information of playback status. ZOOM During movie playback, press the ZOOM button repeatedly to zoom in the picture by ZOOM X2, ZOOM X4, then ZOOM X1. ANGLE If the multi-angle icon appears on the screen, it means more than one scene is available on the current DVD.
- Page 16 Programming 1.During VCD Disc playing, press the MENU Button on remote control repeatedly until "PCB Off" appears on screen. 2.Press the "PROG" Button to view the Program List screen (see below). 3. Use the Direction arrow buttons to select a position in the Program List (e.g., 2), then press the RIGHT arrow to move to the "Title"...
-
Page 17: System Setup
System Setup Press the SETUP button; the setting menu will appear on the screen (see below). Use the Direction buttons to select and highlight the function you need to adjust. Press the ENTER button to confirm the selection. When you are done, press the SETUP button to save your changes and exit. Language Setup Page: Language Setup Page: Language Setup Page:... - Page 18 System Setup Display Setup Page: Display Setup Page: Display Setup Page: Display Setup Page: ~If TV Standard is selected, use the direction and ENTER buttons to set to PAL, AUTO or NTSC to match the color system of the connected TV. (Note: Select AUTO or NTSC in the US, Canada, and Mexico).
- Page 19 System Setup Audio Setup Page: Audio Setup Page: Audio Setup Page: Audio Setup Page: 1. If Digital Out is selected, use the direction and ENTER buttons to set the output of the coaxial digital audio connector. Use SPIDF/PCM when connected to a TV or other device that cannot decode digital audio.
- Page 20 System Setup Custom Setup Page: Custom Setup Page: Custom Setup Page: Custom Setup Page: 1. Set the screen saver to On or Off . 2.Angle Mark: when playing a multi-angle disc, set angle mark to on, the multi-angle effect will be shown on screen. 3.
-
Page 21: Care And Maintenance
Care and Maintenance CARING FOR DISCS Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to contact the shiny, unprinted side of the disc. • Do not attach adhesive tape, stickers, etc. to the disc label. •... -
Page 22: Troubleshooting Guide
Troubleshooting Guide CHECK THE FOLLOWING SYMPTOMS BEFORE REQUESTING SERVICE: PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION No power. AC cord is unplugged. Plug AC cord into an AC outlet. Condensation has formed. Unplug the unit and wait about 1-2 hours for unit to dry out. -
Page 23: Specifications
Specifications Power Source .............. 110-240V~50/60Hz Power Consumption ..........10 W Signal System ..............NTSC / PAL Operating Temperature ..........+5°C to +35° C Operating Humidity Range ........5% to 90% (no condensation) DISCS PLAYED: DVD-VIDEO DISC 12cm single-sided, single layer 12cm single-sided, dual layer 12cm double-sided, single layer 8cm single-sided, single layer 8cm single-sided, dual layer... -
Page 24: Discs Played
If you have problems with your device, please consult the instructions in this manual. Please also visit us on the web at www.naxa.com to get up to the minute news, alerts, and documen- tation for your device. For additional assistance, please contact Naxa Technical Support.
