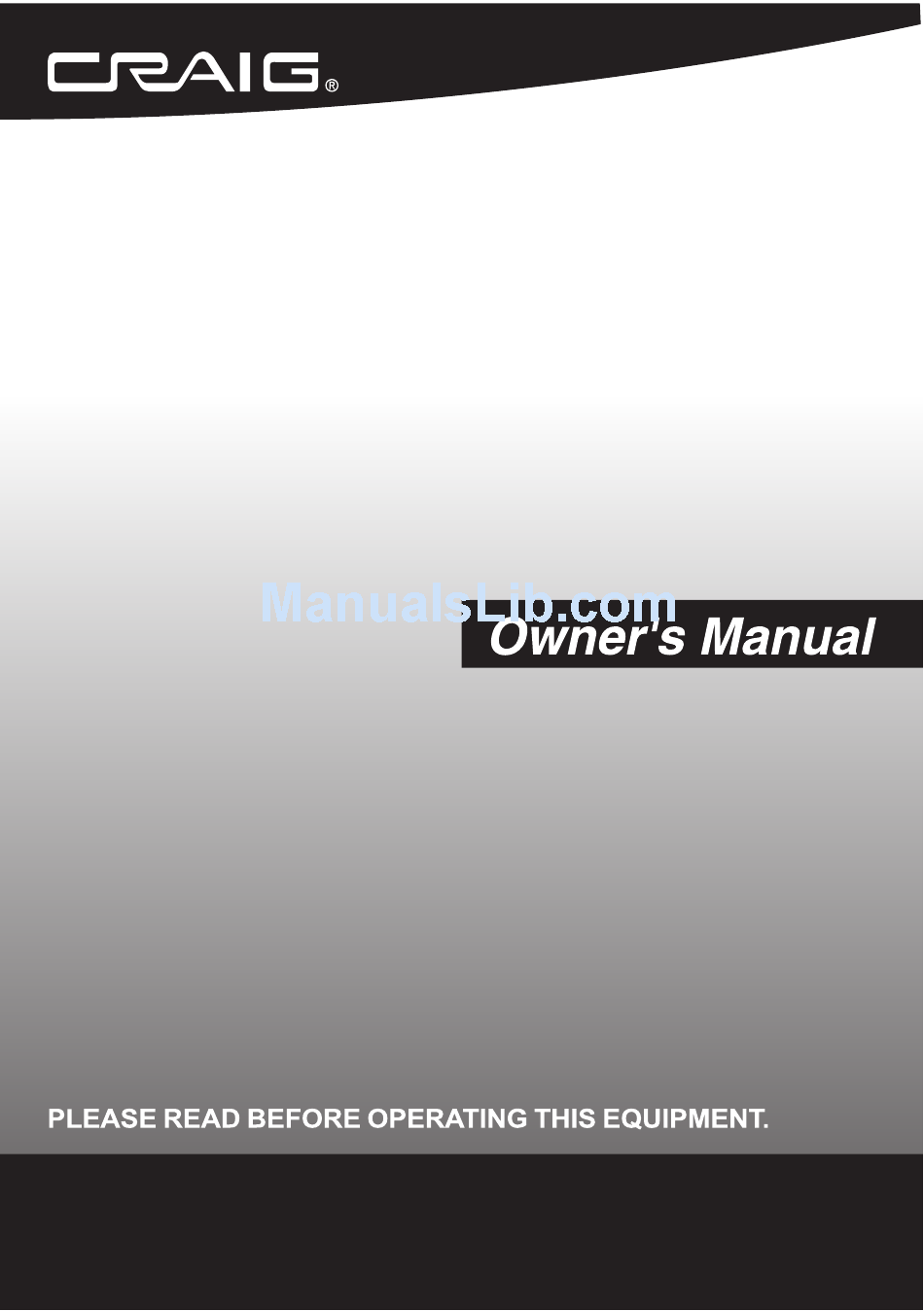

- Page 1 WIRELESS PORTABLE SPEAKER WIRELESS PORTABLE SPEAKER WITH HANDSFREE PHONE WITH HANDSFREE PHONE ANSWERING ANSWERING Model: CMA3546BT...
- Page 2 FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 0f the FCC Rules. These limits are designed to provide reasonable protection against harmful interference m a residential installation.
- Page 3 POWER SOURCE Battery Recharge The unit has a built in DC 3.7V, 1200mAh Lithium-ion rechargeable battery, which recharges as follow: Connect the unit to the computer or any USB charger by the supplied USB cable as: Inset the small plug from the supplied USB cable to the Micro USB Port on the unit, insert the other plug to the USB Port on the Personal Computer or any USB Charger having DC 5V, 500mA (or more than 500mA) output.
- Page 4 OPERATING INSTRUCTIONS Location of Controls: 1. Power on indicator 2. Built in microphone 3. Power ON/OFF switch : Backward/ Volume Down Button : Forward/ Volume Up Button : Mode/ Play/ Pause Button 7. Micro USB Port 8. Audio connection cable with 3.5mm stereo mini plug Bluetooth mode In first time use or re-pairing to new BT device, pairing the unit to external BT device as below:...
- Page 5 OPERATING INSTRUCTIONS Normal operation after pairing: 1. Turn on the BT function of the external BT device. 2. Slide the Power ON/OFF Switch to ON position to power on the unit. Wait until the Blue Indicator is light and blinking(slow). (It needs take a few seconds). 3.
- Page 6 OPERATING INSTRUCTIONS Specification: Power source-----Built in DC 3.7V, 1200mAh li-ion rechargeable battery. Recharge by DC from computer or USB charge through Micro USB jack(Computer and USB charger not included). Battery life--------Approximate 6 hours for music playback Audio Output Power------3W(RMS) Speaker Impedance------4Ohm,3W Noted: The specifications are subject to change without notice.
- Page 7 CMA3546BT_WC_E0CS1_A0US...
