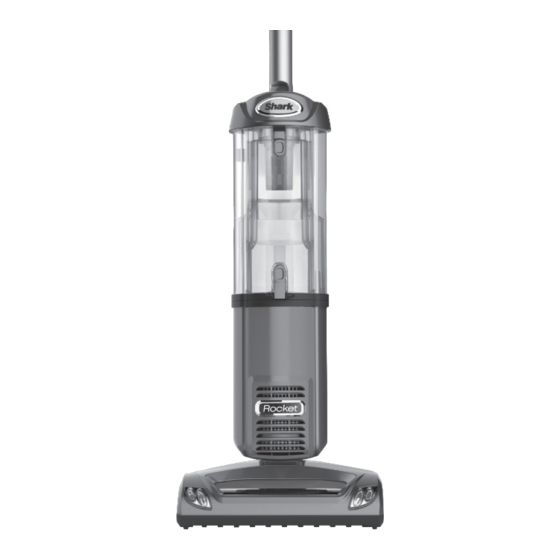

Shark NV480UKR Owner's Manual

Rocket
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S GUIDE
NV480UKR

Advertisement

Table of Contents
loading

Related Manuals for Shark NV480UKR

Summary of Contents for Shark NV480UKR

  • Page 1 OWNER’S GUIDE NV480UKR...

  • Page 2: Technical Specifications

    Thank you for purchasing the Shark Rocket Upright Vacuum For a list of what is included with this model, refer to inside flap ® ™ Cleaner. of box. This Owner’s Guide is designed to help you get a complete under- standing of your new vacuum cleaner.

  • Page 3: Important Safeguards

    READ ALL INSTRUCTIONS BEFORE USE IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should 20 This appliance is not intended for use by persons (including children) with always be observed, including the following: reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
  • Page 4 ASSEMBLY Place the vacuum body onto power nozzle. Insert extension wand into top of the vacuum. Insert handle into the top of the extension wand (if not already assembled). Insert hose into hose connector. Insert the crevice tool and dusting brush onto the accessory holder as shown. The accessory holder is removable.
  • Page 5 FLOOR Press POWER to clean bare floor surfaces, area rugs or areas above-floors. The brushroll will not spin in this mode. CLEANING Press POWER and BRUSHROLL to clean carpets. The brushroll indicator lights will illuminate GREEN. If there is a jam, the indicator light on power nozzle will illuminate RED.
  • Page 6 ABOVE FLOOR Depending on the amount of reach required, remove either the handle by pressing the handle release button or handle with extension wand by pressing the Extension Wand button. CLEANING Attach desired cleaning accessory. Note, the handle will slide into the accessory and the extension wand will slide over the accessory. You can also Lift-Away for portable cleaning on stairs.

  • Page 7: Height Adjustment

    HELPFUL TIPS POWER BUTTONS The POWER button turns on suction only. This is ideal for use on bare floors, delicate area rugs and for use with accessories. The BRUSHROLL button spins the floor brush, ideal for use on carpeted surfaces. Note: The floor brush will only spin once the vacuum is reclined back.

  • Page 8: Maintenance

    14 cm Crevice Tool Dusting Brush 223FFJ480 134FLI480 ACCESSORIES For accessing hard to Cleans hard surfaces and reach places. upholstery. NOTE: Select cleaning accessories are included. Others are available for purchase . For a list of what is included with this model, refer to inside flap of box.
  • Page 9 MAINTENANCE CHECK FOR BLOCKAGES REMOVE AND INSPECT: HOSE AND TUBES Remove power nozzle and extension wand and shine a torch up from the bottom to check for possible blockage. Remove dustcup and hose to check intake opening and hose elbow. BOTTOM OF POWER NOZZLE CAUTION: NOZZLE CONTAINS LIVE PARTS Squeeze tabs together and pull up to expose the airway.
  • Page 10 TROUBLE- Vacuum is not picking up dirt. No suction or light suction SHOOTING GUIDE • C heck filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum. • Dust cup may be full; empty dust cup. • C heck hose, hose connections, nozzles and accessories for blockages; clear blockages if required.

  • Page 11: Warranty Terms And Conditions

    Once you have registered your guarantee, we may contact you using the details you have provided if needed. You can also opt to receive tips and advice on how to get the best out of your Shark machine and updates about our new Shark products and technology.
  • Page 12 Euro-Pro Europe Limited 15 Mariner Court Calder Park Wakefield WF4 3FL Freephone 0800 862 0453 www.sharkclean.eu NV480UKR�26�IB�150522�1 Printed in China © 2015 Euro-Pro Operating LLC Illustrations may differ from actual product.
