Farm&Ranch FR100F Owner's Manual

Flatbed utility cart

Download this manual

Enlarged version

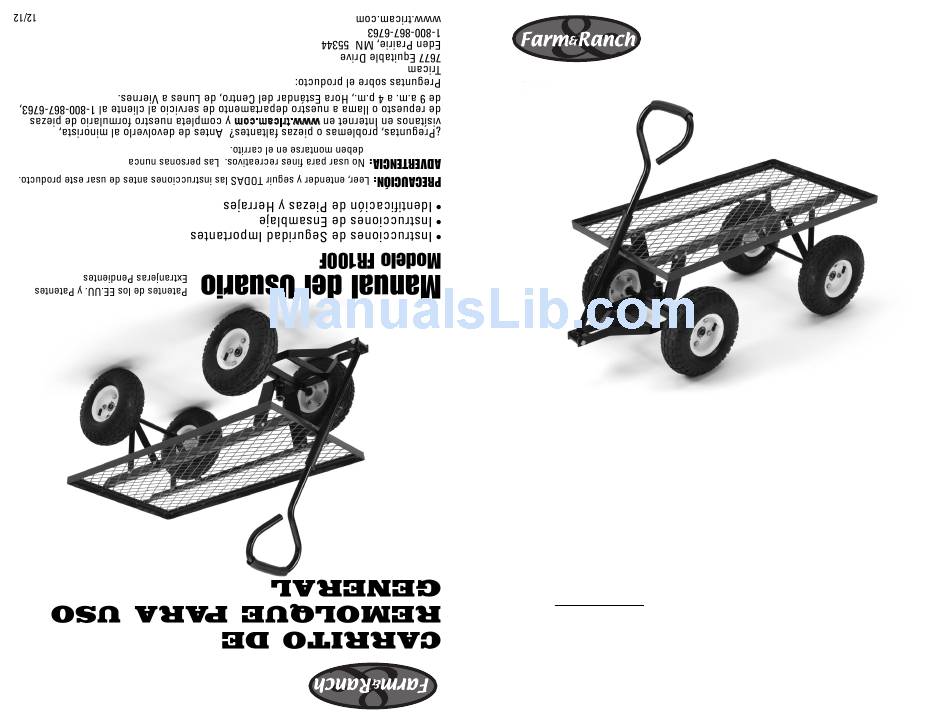

FLATBED UTILITY CART

Owners Manual

U.S. and Foreign Patents Pending

Model FR100F

• Important Safety Instructions

• Assembly Instructions

• Parts and Hardware Identification

CAUTION:

Read, understand and follow ALL instructions before using this product.

WARNING:

Not for recreational use. Persons should never ride in the cart.

Questions, problems, or missing parts? Before returning to your retailer, visit us

online at w w w w w w . . t t r r i i c c a a m m . . c c o o m m and complete the replacement parts submission form or

call our customer service department at 1-800-867-6763, 9 a.m. - 4 p.m., CST,

Monday-Friday.

For product inquiries:

Tricam

7677 Equitable Drive

Eden Prairie, MN 55344

1-800-867-6763

www.tricam.com

12/12

Page 1 FLATBED UTILITY CART Owners Manual U.S. and Foreign Patents Pending Model FR100F • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product. WARNING: Not for recreational use. Persons should never ride in the cart.
Page 3 Exploded Drawing for Assembly Parts List A. Bed (1) B. 10in Wheels (4) C. Rear Axle (1) D. Rear Struts (2) E. Front Axle (1) F. Front Axle Bracket (1) G. Handle (1) Hardware List A.M8 Washer (9) B.M8 Lock Nut (9) C.M8x20 Hex Bolt (8) D.M8x60 Hex Bolt (1) E.M8x16 Washer (6)
Page 4: Important Safety Instructions
Important Safety Instructions 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763 Monday through Friday 8:00 a.m. until 5:00 p.m. CST. 2.
Page 5 Step 3 Assemble the front axle assembly to the bed using M8x20 hex bolts (4), M8 washers (4) and M8 lock nuts (4). Tighten bolts securely. Step 4 Attach the rear axle to the bed using M8x20 hex bolts (4), M8 washers (4), and M8 lock nuts (4).
Page 6: Replacement Parts List
DO NOT EXCEED MAXIMUM OVERALL LOAD CAPACITY 300 LBS. CAUTION PERSON SHOULD NEVER RIDE ON THE FLATBED UTILITY CART. WEIGHT RATING IS BASED ON AN EVENLY DISTRIBUTED LOAD. Step 6 Attach the handle using the M8x60 hex bolt (1), M8 washer (1), and M8 lock nut (1).
