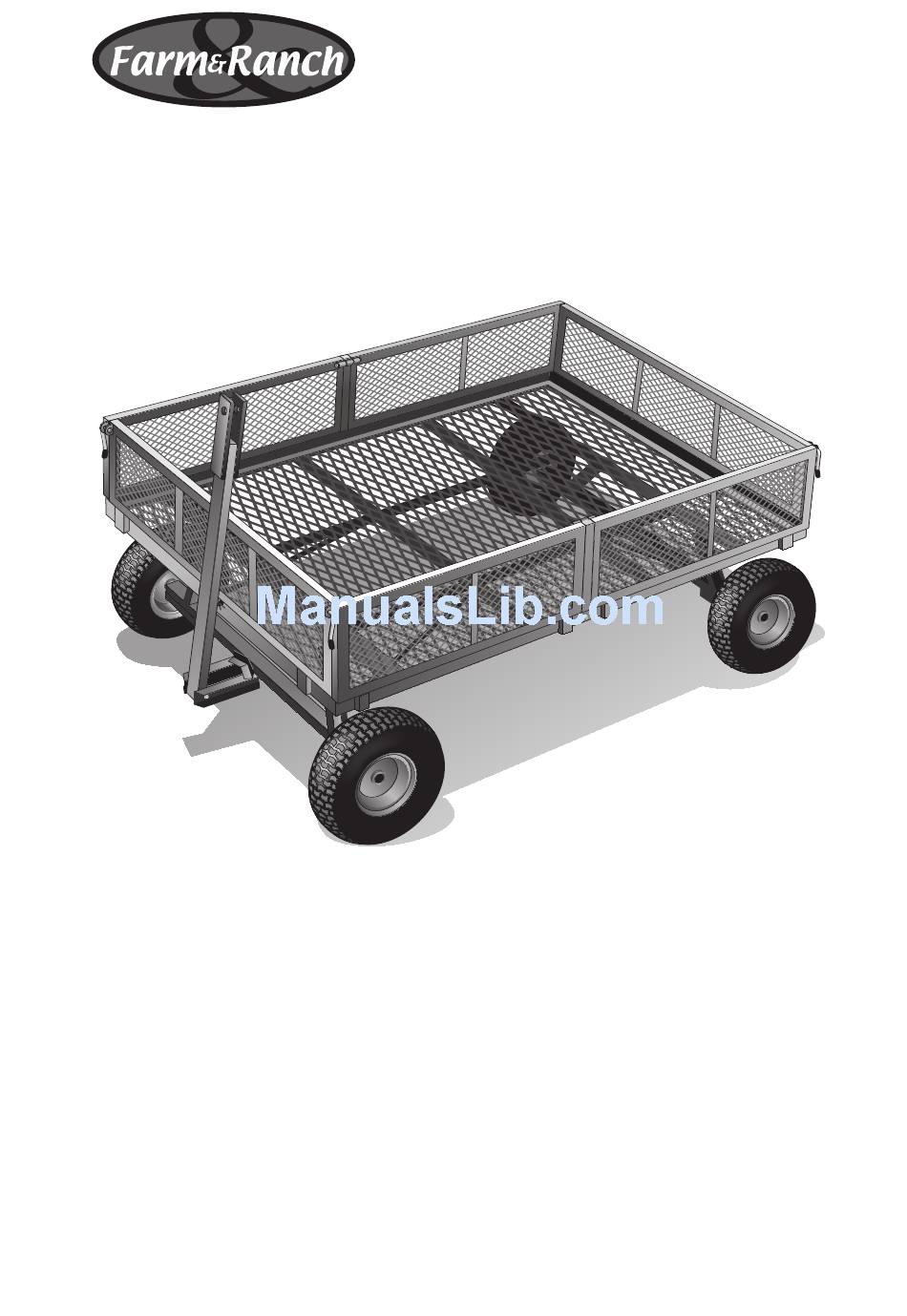

EXTRA HEAVY DUTY
MONSTER CART
With Removable Sides
Owners Manual
Model MH1100-02
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
1-800-867-6763
www.tricam.com
• Warning: Not for recreational use -
persons should never ride in cart
• Warning: Do not tow cart in excess
of 5 mph - never tow behind car
or truck
• Warning: Not for high speed or
highway use
REV 8/08
Advertisement
Related Manuals for Farm&Ranch MH1100-02
Summary of Contents for Farm&Ranch MH1100-02
- Page 1 • Warning: Do not tow cart in excess of 5 mph - never tow behind car Owners Manual or truck Model MH1100-02 • Warning: Not for high speed or highway use • Important Safety Instructions • Assembly Instructions •...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763 Monday through Friday 8:00 a.m. until 5:00 p.m. CST. 2. - Page 3 STEP 4 Attach the rear axle assembly and rear struts to the angled support brackets using the 10x60mm bolts (2), 10mm lock nuts (2), and 10mm washers (2). Attach the rear strut to the base using 10x20mm bolts (2), 10mm lock nuts (2), and 10mm washers (2). Tighten securely. STEP 5 Attach the wheels onto the axles of each of the front and rear brackets.
- Page 4 STEP 8 Attach the side panel brackets to the base of the cart using 8x20mm bolts (2), 8 mm washers (2) and 8 mm lock nuts (2). The circular tube at the top of the bracket should face the inside of the cart. STEP 9 Assemble the four side panels by inserting the stakes on each panel into the brackets on the...
- Page 5 EXPLODED DRAWING FOR ASSEMBLY MAIN FRAME PARTS (6) 15in (38.1cm) Wheels (4) (1) Base - (1) (7) Front Axle Assembly (1) (2) Side Panels (4) (8) Rear Axle Assembly (1) (3) Front Panel (1) (9) Front and Rear Struts (4) (4) Rear Panel (1) (10) Trailer Hitch (1) (5) Side Panel Brackets (2)
- Page 6 PARTS AND HARDWARE IDENTIFICATION 10x20mm Bolt – (4) 10x60mm Bolt – (4) 8x20mm Bolt – (2) 12x60mm Bolt – (1) 10mm Lock Nuts – (8) 8mm Lock Nut – (2) 12mm Lock Nut – (1) 8mm Washer – (2) 10mm Washer – (8) 100mm Pin –...
