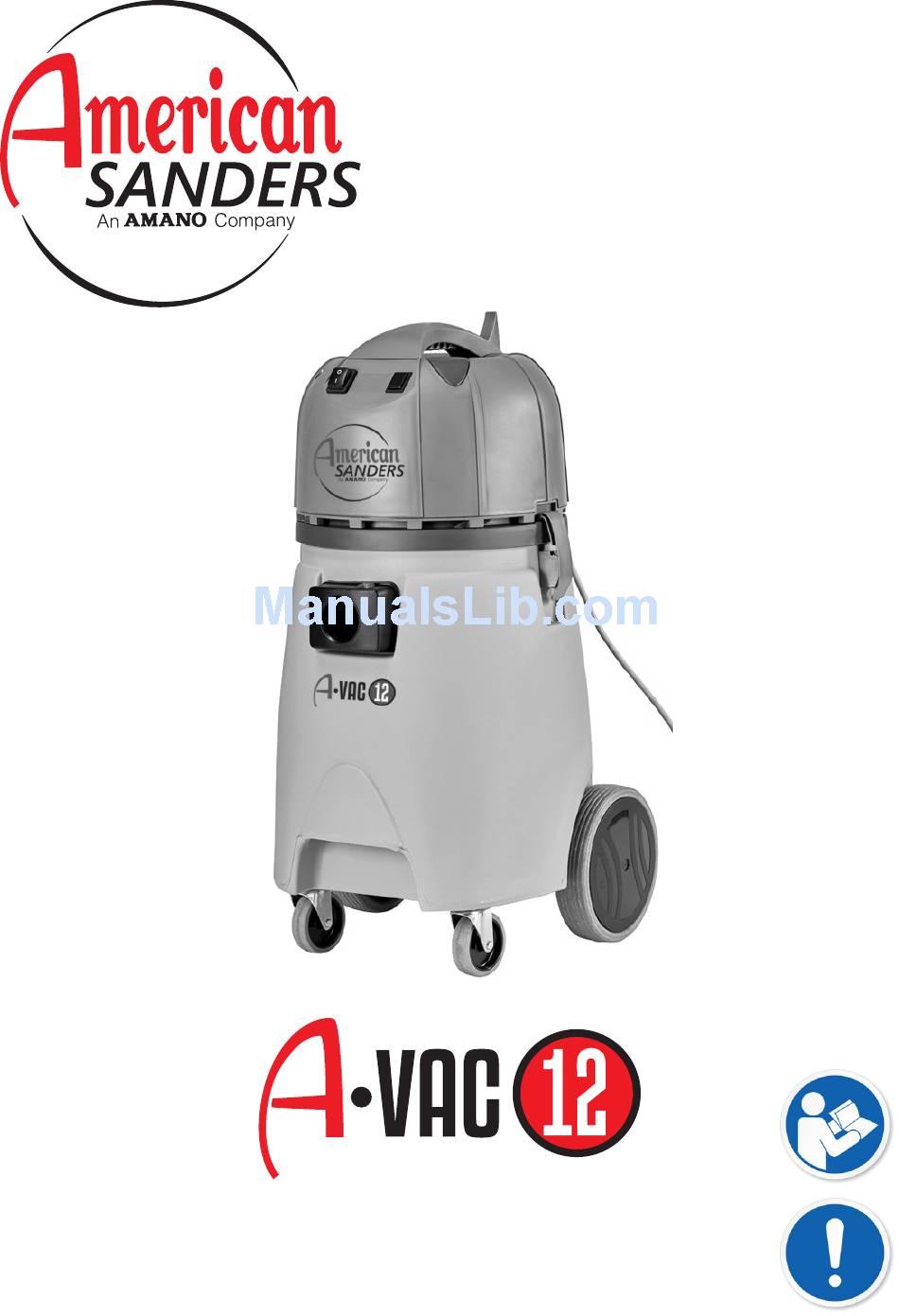

- Page 1 Model: 07212A Operator’s Manual...
- Page 2 READ THIS BOOK This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your American Sanders machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.
-
Page 3: Table Of Contents
Contents Symbols Used in the Manual..............4 Purpose and Content of the Manual............4 Target Group....................4 Storing the Use and Maintenance Manual..........4 On Delivery of the Machine..............5 Introductory Comment................5 Identification Data..................5 Technical Description................5 Intended Use....................5 Safety....................5 Serial Number Plate.................5 Technical Data..................6 General Safety Regulations..............7 Preparation of the Machine..............9 Handling the Packed Machine............9 How to Unpack the Machine............9... -
Page 4: Symbols Used In The Manual
The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law. -
Page 5: On Delivery Of The Machine
Machine Delivery When the machine is delivered to the customer, an immediate check must be performed to ensure all the material mentioned in the shipping documents has been received, in addition to verifying that the equipment has not been damaged during transportation. If this is the case, the carrier must ascertain the extent of the damage at once, informing our customer service office. -
Page 6: Technical Data
Machine Specifications Unit of Technical Data AVac12 Measure Power Supply Volts (V) Frequency Hertz (Hz) 50-60 Rated Power Watts (W) 1100 Quantity of Vacuum Motors Number Type of Vacuum Stage / Discharge Single / Peripheral Inches of Water (inH 96 inH Maximum Vacuum Kilopascal (kPa) 24 kPa... -
Page 7: General Safety Regulations
GENERAL SAFETY REGULATIONS The regulations below must be carefully followed in order to avoid harm to the operator and damage to the appliance. CAUTION: l Carefully read the warnings contained in this booklet and take care of it for further consultations. l Since the packaging elements (plastic bags, staples, etc.) are a source of danger they should not be left within the reach of children, disabled persons, etc. -
Page 8: Grounding Instructions
GROUNDING INSTRUCTIONS: This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord that has an equipment- grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 9: Preparation Of The Machine
Handling the Packaged Machine Since the packaging elements (plastic bags, staples, etc.) are a potential source of danger, they should not be left within the reach of children, disabled persons, etc. The gross weight of the appliance, including packaging, is 36 lbs (16 Kg). -
Page 10: Machine Components - Main
Machine Components - Main The basic components of the machine are as follows: Collection Tank Float Kit Vacuum Head Nylon Filter Bag (Not Pictured) Machine Components - Tank The components of the collection tank are as follows: Rear Wheels 4. Vacuum Hose Release Button Swivel Casters 5. -
Page 11: Machine Components - Vacuum Head
Machine Components - Vacuum Head The basic components of the vacuum head are as follows: Main Switch 4. Power Supply Cable Handle 5. Power Cable Hook Filter Cleaning Button 6. Vacuum Filter Machine Safety The stages for making the appliance safe, and thereby allowing all the operations to be carried out in complete safety, are as follows: Make sure that the collection tank is empty, and empty it if necessary (read the section “EMPTYING THE COLLECTION TANK”). -
Page 12: Inserting The Filter / Collection Bag (Optional)
Inserting the Filter / Collection Bag (Optional) To insert the filter – collection bag inside the collection tank, proceed as follows: Take all necessary steps to ensure that the device is in a safe condition (see “MACHINE SAFETY”). WARNING: Users are advised to always wear protective gloves, to avoid the risk of serious injury to hands. -
Page 13: Preparing To Work
Preparing the Machine Before beginning to work, it is necessary to: Before using, the appliance must be in order and safe to use with the work equipment, especially the power cable and the extension cable. If everything is not in order, the appliance must not be used. Take the necessary steps to secure the machine (see the section “MACHINE SAFETY’”). -
Page 14: Machine Operation
Using the Machine - Dry To start working, proceed as follows: Perform all the checks indicated in the section “PREPARING THE MACHINE”. Free the vacuum head from the collection tank by releasing the hooks (1) on the side of the tank. Rotate the levers as shown by the arrow in the picture on the right. -
Page 15: Using The Machine - Wet
Using the Machine - Wet To start working, proceed as follows: Perform all the checks indicated in the section “PREPARING THE MACHINE”. Free the vacuum head from the collection tank by releasing the hooks (1) on the side of the tank. Rotate the levers as shown by the arrow in the picture on the right. -
Page 16: Improving The Vacuum Performance
Improving the Vacuum Performance If the vacuuming performance diminishes while you are working, proceed as follows: With the accessory in contact with the ground, quickly press the button (1) on the vacuum head 3 or 4 times. Continue working. If the above procedure doesn’t produce a good result, proceed as follows: Switch the machine off via the main switch (2) on the vacuum head (bring the switch to “0”). -
Page 17: Post Operation
Post Operation At the end of the work, and before carrying out any type of maintenance, perform the following operations: Take the necessary steps to secure the machine (see the section “MACHINE SAFETY”). Take the appliance to the designated place for emptying the collection tank. Empty the collection tank (see the section “EMPTYING THE COLLECTION TANK”). -
Page 18: Daily Maintenance
DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE Emptying the Collection Tank To empty the collection tank of solid waste, proceed as follows: Take the appliance to the designated place for emptying the collection tank. Take the necessary steps to secure the machine (see the section “MACHINE SAFETY”). WARNING: You are advised to always wear protective gloves, to avoid the risk of serious injury to your hands. -
Page 19: Remove Paper Collection Bag
Remove Paper Bag To remove the paper filter/collection bag, proceed as follows: Take the appliance to the designated place for emptying the collection tank. Take the necessary steps to secure the machine (see the section “MACHINE SAFTEY”). WARNING: You are advised to always wear protective gloves, to avoid the risk of serious injury to your hands. Free the vacuum head from the collection tank by releasing the hooks (1) on the side of the tank. -
Page 20: Cleaning The Vacuum Accessories
Cleaning the Vacuum Accessories Accessories in a good condition guarantee better suction and cleaning of the floor as well as a longer vacuum motor life. To clean the accessories, proceed as follows: Take the machine to the maintenance area. Take the necessary steps to secure the machine (see the section “MACHINE SAFETY”). WARNING: You are advised to always wear protective gloves, to avoid the risk of serious injury to your hands. -
Page 21: Weekly Maintenance
WEEKLY MAINTENANCE Cleaning the Collection Tank Carefully cleaning the collection tank prolongs the life of the appliance. To clean the collection tank, proceed as follows: Take the machine to the maintenance area. Take the necessary steps to secure the machine (see the section “MACHINE SAFETY”). WARNING: You are advised to always wear protective gloves, to avoid the risk of serious injury to your hands. -
Page 22: Cleaning The Foam Filter
Cleaning the Foam Filter The thorough cleaning of the foam filter will ensure a longer working life for the machine. To clean the foam filter, proceed as follows: Take the appliance to its designated maintenance area. Take the necessary steps to secure the machine (see the section “MACHINE SAFETY”). Free the vacuum head from the collection tank by releasing the hooks (1) on the side of the tank. -
Page 23: Cleaning The Cartridge Filter
Cleaning the Cartridge Filter The thorough cleaning of the cartridge filter will ensure a longer working life for the machine. To clean the cartridge filter, proceed as follows: Take the appliance to its designated maintenance area. Take the necessary steps to secure the machine (see the section “MACHINE SAFETY”). Free the vacuum head from the collection tank by releasing the hooks (1) on the side of the tank. -
Page 24: Cleaning The Float
Cleaning the Float The thorough cleaning of the float will ensure a longer working life for the machine. To clean it, proceed as follows: Take the appliance to its designated maintenance area. Take the necessary steps to secure the machine (see the section “MACHINE SAFETY”). Free the vacuum head from the collection tank by releasing the hooks (1) on the side of the tank. -
Page 25: Troubleshooting
TROUBLESHOOTING The Machine Will Not Turn On If the appliance does not switch on, proceed as follows: Make sure the main switch is on “I”. Check that the plug (2) on the power cable (3) of the appliance has been correctly inserted into the socket (4) of the electrical outlet and/or power supply, and if not, properly connect it. -
Page 26: Disposal
DISPOSAL To dispose of the appliance, take it to a demolition center or an authorized collection center. Before scrapping the appliance, it is necessary to remove and separate out the following materials, then send them to the appropriate collection centers in accordance with applicable environmental hygiene regulations: l Felt l Electric and electronic parts*... -
Page 27: Choosing An Accessory
Choosing an Accessory Flat Lance: When you need to vacuum in fissures or very narrow gaps. Float Filter Kit: This is the vacuum motor filtering system and the warning that the maximum collection tank capacity has been reached. To be used for removing liquid substances only. -
Page 28: Parts Manual
07212A - AVac12 12 Gallon 110V Vaccum Parts Manual Notes: _________________________________ _______________ ____________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________ _____________________________________... -
Page 29: Electrical Schematic
Electrical Schematic IG - Double Pole Switch CO - Capacitor MO - Vacuum Motor... -
Page 30: Vacuum Motor & Cover Assembly
Vacuum Motor & Cover Assembly... - Page 31 Vacuum Motor & Cover Assembly (continued) Item Ref. No. Description TMB222605 CORD, 14/2 X 50FT TMB405946 SEAL, FLOAT TMB408677 SCREW, M8 X 30MM TMB409087 NUT, HEX, M8 TMB409765 GRIP, CABLE TMB412463 GASKET, BASE, MOTOR TMB416994 WIRING, MOTOR TMB417560 GASKET, MOTOR, VACUUM TMB417622 SWITCH, DBL POLE TMB417802...
-
Page 32: Filter Assembly
Filter Assembly Pg.12 TE QUICK LINE... - Page 33 Filter Assembly (continued) Item Ref. No. Description TMB405429 FILTER, FOAM TMB405946 SEAL, FLOAT TMB417138 BASKET, PLASTIC TMB417501 FLOAT, WHITE TMB418279 SCREW, SELF-TAPPING, M4.8 X 19 TMB428201 FRAME, BASKET, FLOAT TMB405432 BAG, FILTER, NYLON (NOT SHOWN)
-
Page 34: Tank Assembly
Tank Assembly... - Page 35 Tank Assembly (continued) Item Ref. No. Description TMB408857 SCREW, M6 X 30MM TMB409360 RIVET, M4.8 X 14MM TMB412464 ADAPTER, INTAKE TMB412527 HOLDER, ACCESSORY TMB416866 AXLE, WHEEL, D20 TMB417184 COVER, WHEEL, BLACK, D20 TMB417506 LATCH, CLOSUR TMB417638 TANK, GREY, 12 GAL TMB418012 WHEEL, GREY, D20 TMB418017...
-
Page 36: Accessories
Accessories Item Ref. No. Description TMB225161 KIT, ACCESSORY, STND, 1-1/2” TMB225160 HOSE, 1-1/2”, 25 FT TMB401069 TUBE, EXTENSION, STEEL NYLON FILTER TMB401072 TUBE, EXTENSION, PLASTIC TMB431080 TOOL, CREVICE (NOT PICTURED) TMB442386 NOZZLE, w/ BRISTLES TMB442388 NOZZLE, w/ FELT TMB224088 BAG, DUST, PAPER TMB428244 FILTER, CARTRIDGE (STANDARD) -
Page 37: Warranty
Limited Warranty AVac12 - 07212A WARRANTY SERVICE TO QUALIFY FOR THIS WARRANTY To obtain warranty service, take your machine and (1) Machine must be registered at the time of proof of purchase to any authorized American Sanders purchase on a form provided by American Distributor. - Page 40 American Sanders an AMANO Company 1 Eclipse Rd PO Box 909 Sparta, North Carolina 28675 www.pioneereclipse.com www.americansander.com +1-336-372-8080 1-800-334-2246 LT074000 07212A_A © 2016 American Sanders...
