Avox INDIO User Manual

Hide thumbs Also See for INDIO:
Table of Contents

Advertisement

Quick Links

INDIO
mini
internet radio
User's Guide
Bedienungsanleitung
Guide d'utilisation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INDIO and is the answer not in the manual?

Questions and answers

Related Manuals for Avox INDIO

Summary of Contents for Avox INDIO

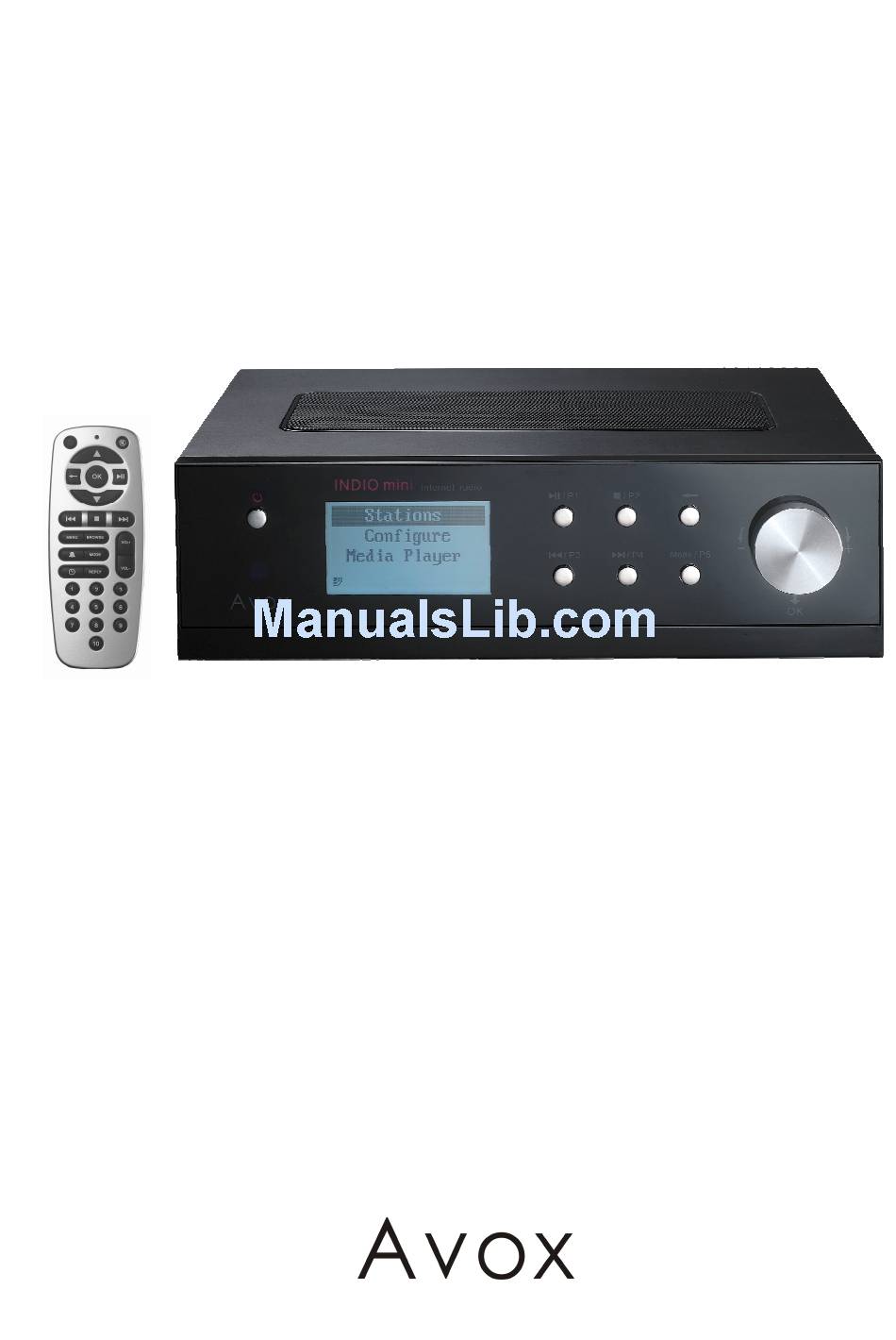

  • Page 1 INDIO mini internet radio User’s Guide Bedienungsanleitung Guide d’utilisation...

  • Page 2: Copyright And Trademarks

    • COPYRIGHT AND TRADEMARKS COPYRIGHT AND TRADEMARKS COPYRIGHT AND TRADEMARKS COPYRIGHT AND TRADEMARKS INDIO is a registered trademark of Avox Technology GmbH • IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING: WARNING: WARNING: WARNING: •...
  • Page 3 Access (WPA) data encryption then you need to know the WEP or WPA code so you can get INDIO to communicate with the network. INDIO should work anywhere within 100 meters of the wireless access point. Before you continue, make sure that your wireless access point is powered up and connected to your broadband internet.
  • Page 4 Functions & Functions & Controls Functions & Functions & Controls Controls Controls Standby / ON UP / DOWN To select or adjust/change BACK To previous menu/screen MENU To the main menu MUTE VOL+ / VOL- Increase/Decrease Volume Preset 1 to 10 …...

  • Page 5: Getting Started

    Power up Power up Plug the cord from the adapter into the socket labelled DC IN 12V on the back of INDIO and switch it ON. CAUTION: Use only the power adapter supplied with INDIO. Connecting a power supply with a...
  • Page 6 Scan for a wireless network connection Scan for a wireless network connection Scan for a wireless network connection INDIO will now scan for all available wireless networks and will display them. If it can’t find one then the screen will display: No Wireless...
  • Page 7 WiFi Protected Access (WPA). You therefore need to enter the correct WEP or WPA password into INDIO to get it to communicate with your network. Only the person who set up the network in the first place knows this password; if that person is not you then you need to find out what it is.

  • Page 8: Internet Radio

    Main Menu Stations Configure Media Player Alarm Clock Podcasts * Use the MENU button * Use the MENU button to go to the * Use the MENU button * Use the MENU button to go to the to go to the to go to the main main main...
  • Page 9 2. Choose to find the desired station from all stations available in the country or by the genre: All Stations By Genre 3. Select the station you want then press OK 4. Wait until INDIO connects to that station. Genre Genre Genre Genre 2.

  • Page 10: Changing The Station

    OK after entering the whole index. 2. Select the station you want then press OK 3. Wait until INDIO connects to that station. * Note that some radio stations do not broadcast 24 hours per day, and some stations are not always on-line.

  • Page 11: Playing A Preset Radio Station

    OK again, the programme will play from that point. 6. Once INDIO is playing a programme that allows you to choose its start time, INDIO’s preset buttons on the panel become playback-control buttons for the stream; e.g. you can press...

  • Page 12: Listening To Podcasts

    Podcasts Podcasts Podcasts Podcasts Listening to Podcasts Select Podcasts Press OK BBC Podcasts BlogTalkRadio By Category Use the knob or the UP/DOWN UP/DOWN buttons to choose your preferred podcast then press OK UP/DOWN UP/DOWN * Use the MENU button * Use the MENU button to go to the * Use the MENU button * Use the MENU button to go to the...

  • Page 13: Setting The Clock

    • Setting the clock Setting the clock Setting the clock Setting the clock 1. Select ‘Configure’ from the main menu and press OK OK..Configure 2. Select ‘Clock Setup’ and press OK Clock Setup Then Set Time/Date 3.

  • Page 14: Setting The Alarm

    Pressing OK OK on ‘Disable All’ will cause all the alarms to be turned off. The display will then say ‘All alarms disabled’ for 3 seconds, then returns to INDIO station display. All alarms disabled 4. Select one of the numbered alarms to set the time for the alarm.
  • Page 15 3. Use the knob or the UP/DOWN UP/DOWN UP/DOWN buttons to select the timer from 15min., 30min., 45min, … up to UP/DOWN 3hours 15min. to switch off INDIO, or to set it off. Press OK OK to set. Timer Set...

  • Page 16: Configure Menu

    Configuring INDIO to use a static IP address Configuring INDIO to use a static IP address In order for your INDIO to use a static IP address on your network, you will need to do the following: 1. Select the ‘Edit Config’ from the ‘Network Config’ menu and then press OK 2.
  • Page 17 6. Finally, you will need to enter the DNS IP address for INDIO. On some networks, you may need to enter your ISP’s DNS IP address, which should be available on your ISP’s support page on their website. 7. After entering the above information, INDIO will now connect successfully to your network. In order to make INDIO use DHCP again (to automatically get its network information when it attempts to connect to a network), you will need to select ‘Configure’...
  • Page 18 6. 6. 6. 6. Register Register Register Register This will display a key that can be used to register INDIO on the Reciva Customer portal: http://www.reciva.com/ 7. 7. 7. 7. Cl Cl Cl Clock ock Setup Setup...

  • Page 19: Wifi Strength

    Backlight Backlight Adjust the brightness of the display. 1. After selecting the ‘Backlight’ menu item, INDIO will display its list of three menu modes: ‘Inactive’, ‘Active’ and ‘Standby’. These three states are explained below: • Inactive -- when there is no user activity for 30 seconds.

  • Page 20: Configuring 'My Stuff'

    Stations’, ‘My Streams’, ‘My Radios’ and ‘My Podcasts’ from the left-hand side of the website. 4. You can now add your INDIO to your account on the website by accessing the ‘My Radios’ link. From the ‘My Radios’ section, you will need to enter in your radio’s eight digit serial number, which can be found from the ‘Configure’...
  • Page 21 My Podcasts’ ’ ’ ’ 1. It is possible to add audio podcasts (RSS feeds) to your Reciva account that can be accessed on your INDIO. To add a podcast, simply login to your account and then click on the ‘My Podcasts’ link.

  • Page 22: Media Player

    Windows XP Windows XP Windows XP 1. Please ensure that your PC is available on the network for your INDIO, then, using Windows Explorer, locate the folder where your audio files are stored. 2. Right click on the folder. 3. Select ‘Properties’.
  • Page 23 6. Select the correct shared folder and press OK 7. INDIO will display ‘File Scan…’ as it scans through the media files in the shared folder. Text on the bottom row of the display will change to indicate that the file scan is in progress. If you have a large number of audio files this could take several minutes to complete.

  • Page 24: Controlling Playback

    2. 2. 2. 2. Listening to a single Listening to a single shared track Listening to a single Listening to a single shared track shared track shared track 1. Select ‘By Artist’ and press OK 2. Select the required artist and press OK 3.

  • Page 25: Playing Tracks In Random Order

    4. Your PC will now prompt you that a device has attempted to connect to your UPnP server. In order to allow INDIO to have access to the media files, you will need to click the ‘Library’ tab from Windows Media Player 11 and select the ‘Media Sharing …’ item to open the ‘Media Sharing’...
  • Page 26 Windows Media Player 11: for Windows Media Player 11: 5. From the ‘Media Sharing’ window, INDIO will be listed as an unknown device. Click on the unknown device listed then click the ‘Allow’ button and then click ‘OK’. Allowing...
  • Page 27 2. Select ‘UPNP Servers’ and press OK 3. INDIO will scan for all available UPnP servers. Note, this may take a few seconds for INDIO to complete its scan and before the scan has completed, INDIO will display ‘[Empty]’. INDIO will continue to display ‘[Empty]’...
  • Page 28 5. 5. 5. 5. Playing tracks in random order Playing tracks in random order Playing tracks in random order Playing tracks in random order 1. Select the individual tracks as described previously. 2. Press MENU MENU to go to the main menu and select ‘Media Player’, then press OK MENU MENU 3.

  • Page 29: Troubleshooting

    Troubleshooting Troubleshooting Troubleshooting If you experience any trouble with your wireless INDIO, then you may find it useful to visit the help section http://www.reciva.com on our webpage: If you have trouble connecting INDIO to your wireless network, these steps may help to resolve the problem: 1.

  • Page 30: Specifications

    Specifications Specifications Specifications Specifications • 802.11b/g WiFi • Class-D digital amplifier • 93dB high S/N ratio • Audio output: 16 Watts, 8ohm internal speaker 16 Watts, 8ohm external speaker 24 Watts, 6ohm external speaker • Frequency response: 80Hz – 15KHz ± 3dB, internal speaker 50Hz –...
  • Page 31 Bitte lesen Sie die Bedienungsanleitung edienungsanleitung edienungsanleitung edienungsanleitung Lesen Sie bitte die Bedienungsanleitung sorgfältig durch um einen reibungslosen Gebrauch des Systems zu ermöglichen und alle Eigenschaften zu genießen. Bewahren SIe diese Anleitung für spätere Fragen auf. ©2008 Avox Technology GmbH...
