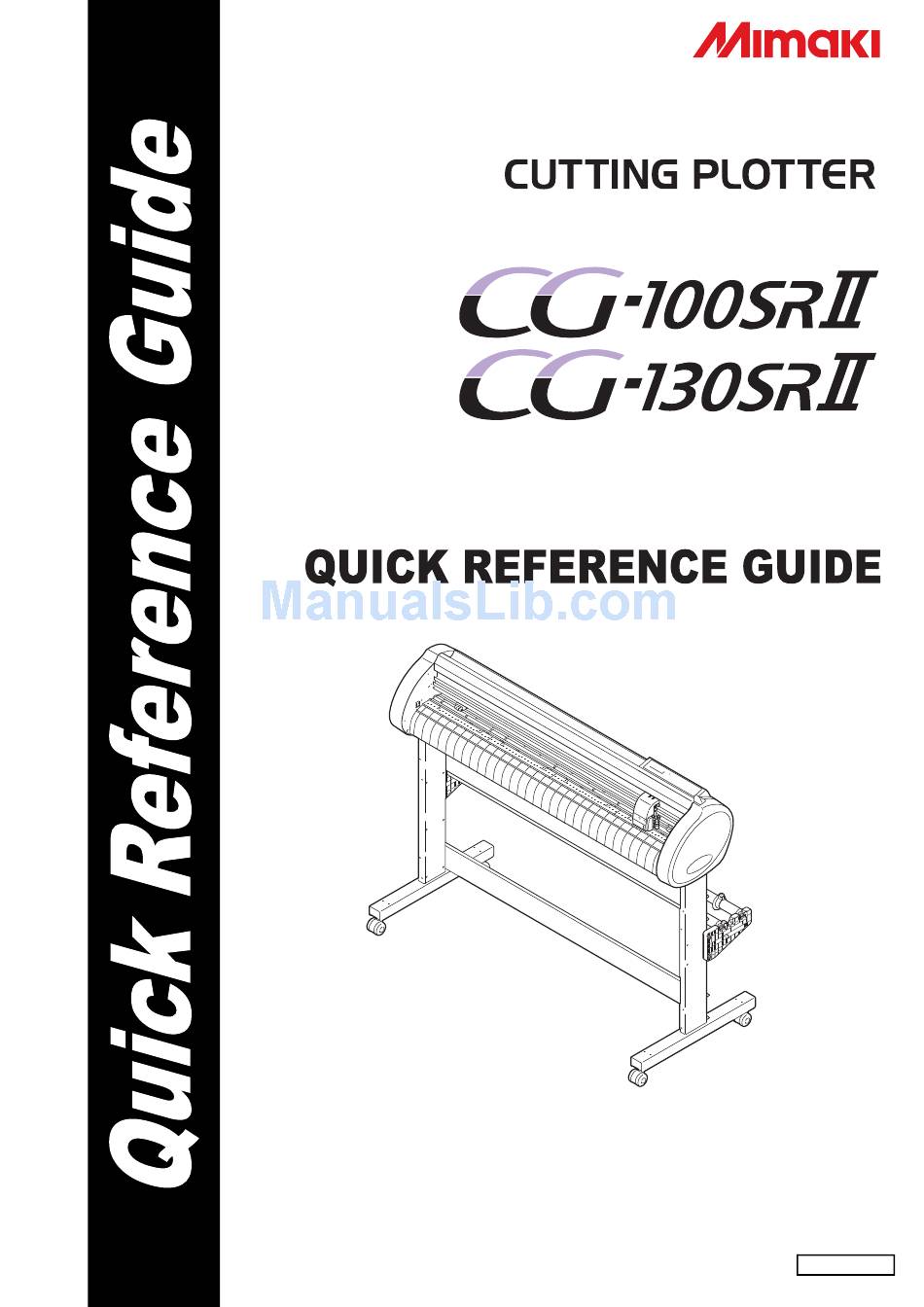

  • Page 1 MIMAKI ENGINEERING CO., LTD. URL: http: // www.mimaki. co. jp/ D202007-14...

  • Page 2: Table Of Contents

    TABLE OF CONTENS Foreword ..............3 CAUTION ..............4 DISCLAIMER OF WARRANTY ........ 4 Requests ..............4 FCC Statement (USA) ..........4 Interference to televisions and radios ....... 4 About media ............. 4 Safety Precautions ..........5 Symbols ..............5 Safety Labels ............
  • Page 3 Cut Out Data with Registration Mark ....36 Making sticker with a register mark (When using FineCut) ..........36 Making sticker with a register mark (When using SimpleCut) ..........37 Enter the registration mark detection mode ... 38 Precautions in inputting data with registration marks ..............

  • Page 4: Foreword

    Foreword Congratulations on your purchase of Mimaki cutting plotter CG-SRII series. This guide explains basic operation of CG-SRII. For more details, please refer to the “CG-SRII series Operation Manual” supplied with the attached opera- tion manual CD-ROM. You can also download the latest quick reference guide from our website.

  • Page 5: Caution

    • In the case where MIMAKI-recommended cable is not used for connection of this device, limits provided by FCC rules can be exceeded.To prevent this, use of MIMAKI-recommended cable is essential for the connection of this plotter.

  • Page 6: Safety Precautions

    Safety Precautions Symbols Symbols are used in this Operation Manual for safe operation and for prevention of damage to the machine. The indicated sign is different depending on the content of caution. Symbols and their meanings are given below. Please follow these instructions as you read this manual. Examples of symbols Meaning Failure to observe the instructions given with this symbol can result in death or serious injuries to...
  • Page 7 Safety Precautions WARNING Do not disassemble or remodel the plotter. Handling of the power cable • Never disassemble or remodel the plotter. • Use the supplied power cable. Take care Disassembly or remodeling can result in an not to damage, break or work upon the electric shock breakdown...

  • Page 8: Safety Labels

    Safety Precautions CAUTION Be careful with the movable parts Caution with cutters • Do not touch the rolling grit roller; • Do not touch the cutter blade, which is very otherwise, you may hurt your fingers or tear sharp. off your finger nails. •...

  • Page 9: Cwhere To Install This Machine

    CWhere to install this machine Secure a suitable installation space before assembling this machine. The place of installation must have enough space for not only this machine itself but also for printing operation. Model Width Depth Height Gross weight CG-100SRII 1435 mm 580 mm 1125 mm...

  • Page 10: Configuration And Function

    Configuration and function The Front Pinch roller The pinch rollers feed out the sheet while pressing it against Operation panel the grit rollers. This panel operates this machine and sets functions. Power switch P.11) The switch turns on/off the power.( P.19, P.35) Clamp lever Pushing a lever down...

  • Page 11: The Rear

    Configuration and function The Rear Tray Small tools, such as a retractable Clamp pressure lever knife and other cutters, can be This lever adjusts the force placed on. by which the clamp is held. AC inlet power cable connected to the AC Sheet sensor inlet.( P.13)

  • Page 12: Operation Panel

    Configuration and function Operation Panel Display panel FUNCTION The display panel indicates tool conditions such as Use this key to enter function setting mode. speed, pressure and offset, tool coordinates, functions and error messages. JOG Key Each of these arrow keys shifts the carriage or SHEET SET sheet in the direction of the arrow or changes Use this key for detection of the...

  • Page 13: Connecting The Cables

    (2) Click [CD-ROM Contents] on the menu. (3) Open [usb11_installguid(en).pdf] for the plotter used in [Mimaki USB1.1 Driver] folder. RS-232C Cable Connection When you want to connect the RS-232C cable, you must observe the following notabilia.

  • Page 14: Connecting The Power Cable

    Connecting the cables Connecting the power cable After connecting the interface cable, you must connect the power cable. Connect the power cable with the plug outlet of the following power specifications. ： AC100 - 240V ± 10% • Voltage • Frequency ：50/60Hz •...

  • Page 15: Operation Flow

    Operation flow Installing a tool See "Installing a tool" ( P.15) Turning the power on "Turning power on" P.19) Setting the tool See "Setting the tool conditions" P.20) conditions Loading a sheet of media See "Loading a sheet of media" P.23) Test cutting (plotting) See "Test cutting (plotting)"...

  • Page 16: Installing A Tool

    Installing a tool For this device, you can use the following tools. Cutter : Select this to cut the image printed on a sheet and to create the cut letters with the cutting sheet. Pen (rollerball) : Select this to “trial-write” for confirming how to actually cut. Pouncing Pin (option) : Select this to sketch the cutting line.
  • Page 17 Installing a tool Adjusting the protrusion of the cutter blade Adjust the cutter blade according to the types of the cutters and the sheet for use. After adjusting the protrusion of the cutter blade, set the cutting conditions and conduct test cutting to check the cutting quality.
  • Page 18 How to install the cutter • Install the cutter to the tool holder of the carriage.Be sure to insert the cutter all the way in the tool holder. Rotate the knob to loosen the holder presser. Holder presser Knob Insert the cutter holder into the tool holder.

  • Page 19: How To Install A Ballpoint Pen

    Installing a tool How to Install a Ballpoint Pen • When use a boll-point pen on the market, refer to the oeration manual and select a installable boll-point pen. Put the cap on the pen adapter. • Use the cap to adjust the pen height. Pen adapter Insert the pen into the pen adapter.

  • Page 20: Turning The Power On

    Turning the power on • Before turning the power on, check that the pinch rollers have been raised. • Be sure to turn on the host computer before turning on the plotter. If this order is not correctly followed, the plotter can malfunction. •...

  • Page 21: Setting The Tool Conditions

    Setting the tool conditions You must set the tool conditions adjusting to your use. Kinds of the Tool Conditions The kinds of the tool conditions include cutting and plotting conditions. See P.20 for the way of setting tool conditions. Kinds Description This is the tool conditions for using the cutter.

  • Page 22: Set The Tool Conditions

    Set the Tool Conditions. Press the key several times to TOOL C U T 2 0 8 0 0 . 3 0 select a tool condition for setting. • Refer to P.20 for selectable tool conditions • Select [CUT2] here. Press the jog key C U T 2 0 8 0...
  • Page 23 Setting the tool conditions Press the key or ENTER/HOLD C U T 2 1 0 0 0 . 3 5 jog key to secure the setting value. After setting the tool condition, execute test cutting. • P.31) • When you set PRESSURE to lower than 20g in the Step 4, you must set the setting of SPEED to lower than 10cm/s in the Step 2.

  • Page 24: Loading A Sheet Of Media

    Loading a sheet of media Either a leaf sheet (cut sheet) or a roll sheet can be loaded on the plotter. The pinch rollers and grit rollers hold the sheet in position. Locate the pinch rollers so that they match the sheet to be used. Pinch roller Clamp lever Grit roller...
  • Page 25 Loading a sheet of media Sheet detection The width and length of the sheet are detected by pressing key depending on the sheet loaded. ( P.25) • Once the sheet length has been detected, if the received data is larger than the sheet, the portion of data that exceeds the sheet cannot be used for cutting.
  • Page 26 Method of detecting a sheet When a sheet of media is set, the following two displays will appear alternately on the LCD panel. Align to the direction of the set sheet, and press the jog keys R O L L < R > L E A F R O L L L E A F R set...

  • Page 27: Loading A Leaf Sheet (Cut Sheet)

    Loading a sheet of media Loading a leaf sheet (cut sheet) Press the key to switch to SHEET SET R O L L < > L E A F NOT READY mode. • You need not to do so if it’s already in the NOT READY mode.
  • Page 28 Press the jog key to select “LEAF”. • "Sheet detection" （ P.24） ： In the case the sheet is loaded from the rear • ： In the case the sheet is loaded from the front Press the jog key to select P I N C H R O L L .

  • Page 29: How To Place The Roll Sheet

    Loading a sheet of media How to Place the Roll Sheet If you want to use the roll sheet, you must mount the roll-placing table. Move down the clamp lever to the rear. Set the roll bars on the roll stays. Projection •...
  • Page 30 Retain the roll sheet with the roll Roll holder holders. • Move the roll holders to both ends of the roll,respectively, and secure them by tighteningthe screws. • Locate the roll holders 2 to 3 mmaway from the respective roll ends.If the roll holders are fixed pressedagainst the roll ends, there may be acase Do not place where the roll cannot turn andthus the sheet cannot...
  • Page 31 Loading a sheet of media Press the jog key to select P I N C H R O L L . : 3 number of pinch rollers to be used. • When [ROLL. SELECT] is set to [ON], selectthe number of pinch rollers to be used. Displays the detected Press the key to start to...

  • Page 32: Test Cutting (Plotting)

    Test cutting (plotting) Execute test cutting (plotting) to confirm the tool conditions. In the test cutting, the plotter cuts two squares. • When the cutter blade is worn and dull, you can use it temporarily by enhancing the value of PRESSURE.

  • Page 33: Cutting (Plotting)

    Cutting (plotting) You can start cutting (plotting) after completion of setting up a tool, loading a sheet and setting the tool conditions. Setting the origin The origin is a reference point for the cutting (plotting) data. When the origin is to be changed, set the new origin before starting cutting (plotting). •...

  • Page 34: Start Cutting (Plotting)

    Start cutting (plotting) After completion of setting the origin, C U T 1 R E M O T E press the key. REMOTE • The display changes to REMOTE. Send the data to the plotter. C U T 1 1 3 5 6 K B •...

  • Page 35: Cut Off The Sheet (Manual Cutting)

    Cutting (plotting) Cut off the Sheet (Manual Cutting) Hold the sheet by hand. • Make sure to hold firmly to avoid the sheet raiseup. Slot Cut the sheet. • Cut the sheet with a cutter knife in the slot on the platen.

  • Page 36: Turning The Power Off

    Turning the power off When plotting is completed, press the “ O ” side of the power switch to turn the power off. • Once the power is turned off, wait at least five seconds before turning the power on again. Confirm that the plotter is not receiving C U T 1 R E M O T E...

  • Page 37: Cut Out Data With Registration Mark

    Cut Out Data with Registration Mark Making sticker with a register mark (When using FineCut) Create registration marks on an output image that you want to make a seal, and then the plotter detects them to cut it out. Make frame around the image. Click frame extraction button.

  • Page 38: Making Sticker With A Register Mark (When Using Simplecut)

    Making sticker with a register mark (When using SimpleCut) Make frame around the image. • Make frame with an attached plug-in soft “SimpleCut” “Rectangle” to make a frame. Fframe Make register mark. Use “Register • Make register mark at corners of image. Mark”...

  • Page 39: Enter The Registration Mark Detection Mode

    Cut Out Data with Registration Mark Register mark type There are following two types of registration marks. Registration mark: Type 1 Registration mark: Type 2 • Use the TP4 when performing trapezium compensation to correct the uneven sheet feeding rate caused by the difference in the diameter between the right and left grit rollers. If the trapezium compensation is to be omitted, there is no need to set the TP4.

  • Page 40: Precautions In Inputting Data With Registration Marks

    Precautions in inputting data with registration marks There are some limitations on preparing data with registration marks. In order to make full use of this function, read the following instructions carefully and prepare data with registration marks properly. • The registration mark described here is intended to detect the sheet inclination and the lengths along the A and B axes.
  • Page 41 Cut Out Data with Registration Mark No-plotting area around the registration marks An area around a registration mark (from the mark origin to the mark size area) is a non-plotting area. There must be no data plotted or stain in this area; otherwise, a wrong origin may be detected or a mark read error can occur.
  • Page 42 The size of, and the distance between, registration marks The size (B) of a registration mark suited for the distance (A) between the marks is as shown below. If the mark size (B) is too small relative to the distance (A), the marks may not be detected correctly. Be sure to prepare the registration marks with an appropriate size.
  • Page 43 Cut Out Data with Registration Mark Recommended size of the area defined with a set of four registration marks It is recommended that the size of the area defined with a set of four registration marks is in the range of A4 size (210 mm x 297 mm) to A3 size (297 mm x 420 mm).

  • Page 44: Set For Detecting The Registration Marks

    Set for Detecting the Registration Marks When you want to cut the data with registration marks, you must set the following without fail. Press the key in the local FUNCTION D A T A C L E A R < E N T > mode.
  • Page 45 Cut Out Data with Registration Mark Press the key.. ENTER/HOLD Press the jog key to select the set values. • See pages P.44 through P.47 for the contents of each setting item. Press the key to confirm the value. ENTER/HOLD When you want to terminate this procedure, press the key twice.
  • Page 46 DIST.REVI Select “OFF” when using FineCut. Setting Description The plotter will not perform any scale compensation. BEFOR With this setting, enter the scale compensation values and the trapezium compensation value before executing the registration mark detection. P.49 , P.52) Since the distance between registration marks is entered beforehand, rapid movement is expected when detecting.
  • Page 47 Cut Out Data with Registration Mark MARK FORM Setting Description Select either one of the following types of registration marks. TYPE1 TYPE2 Mark: TYPE1 Mark: TYPE2 COPIES A ( UP ), COPIES B ( LEFT ) Setting Description 1 ～ 9999 Effective when the same pattern is multi-printed at regular intervals.
  • Page 48 SKEW CHECK Setting Description 0 ～ 99mm Set the allowable range of the sheet feeding error when performing continuous copy. During continuous copying on a roll sheet, copies may be misaligned little by little because of sheet skewing. If the error in the B-axis coordinate of the TP1 mark has exceeded the allowable range, cutting operation is temporally stopped.

  • Page 49: Method Of Detecting Registration Marks

    Cut Out Data with Registration Mark Method of detecting registration marks Registration marks are detected in two different ways; full-automatic detection and semi-automatic detection. Use the semi-automatic function when the TP1 is not located at the bottom right of the sheet, or when the supplied FineCut is to be used as the cutting software.
  • Page 50 Full-automatic detection of marks Use this function to correct the error in the detected length between registration marks as compared with the printed length between registration marks. For this purpose, measure the length A and B on the data beforehand. Measure the length between the registration marks.
  • Page 51 Cut Out Data with Registration Mark Set with the jog key A ( 1 - 2 ) = * * * . * • Press the key. And the plotter ENTER/HOLD moves to the next scale compensation setting. B ( 1 - 3 ) = * * * . * •...
  • Page 52 Detecting procedure ( [DIST.REVI.] Setting value is “AFTER”) • Be sure to set the sheet in the rear. Follow steps 1 to 3 of "Detecting procedure ( [DIST.REVI.] Setting value is “BEFOR”)" ( P.49) Press the key. ENTER/HOLD R O L L <...
  • Page 53 Cut Out Data with Registration Mark Semi-automatic detection of registration marks When TP1 cannot be located at the position where it can be detected full-automatically or when no registration mark can be detected full-automatically, perform registration mark detection semiautomatically. Pinch roller Detecting procedure ( [DIST.REVI.] Setting value is “BEFOR”) Load the sheet and lower the clamp lever.
  • Page 54 Press the key. ENTER/HOLD S E A R C H S T A R T P O S • The scale compensation display appears. (The right figure shows the 4-point detection display as an example.) A ( 1 - 2 ) = * * * . * Make setting with the jog key A ( 1 - 2 ) = * * * .
  • Page 55 Cut Out Data with Registration Mark Detecting procedure ( [DIST.REVI.] Setting value is “BEFOR”) Follow steps 1 to 3 of "Detecting procedure ( [DIST.REVI.] Setting value is “BEFOR”)" ( P.52) Press the key. ENTER/HOLD * * M A R K D E T E C T * * •...
  • Page 56 Detect a registration mark automatically after the sheet is detected Set the automatic registration mark search function performed after the sheet is detected. If both of the registration mark detection and the registration mark search is valid, the function will search the registration mark automatically after the sheet is detected.
  • Page 57 Cut Out Data with Registration Mark Press the key. ENTER/HOLD S C A N W I D T H ： 1 0 c m Press key to select the S C A N W I D T H ： 2 0 c m scan width.

  • Page 58: Confirm The Following When Failed In Cutting Correctly

    Confirm the following when failed in cutting correctly. Check the sensor for the registration mark detection • If you move the head and sheet manually, you cannot perform the right response check. Be sure to perform it via the following operations. Make sure that the plotter is in local C U T 1 0 5 0...
  • Page 59 Cut Out Data with Registration Mark Select [MARK sensor] by pressing the M A R K s e n s o r < E N T > jog key Press the key. ENTER/HOLD S E N S O R C H K <...
  • Page 60 Detect operation Scan in the B direction (plus direction) to detect the line. • The buzzer sounds when the line is detected. If the line is not detected, the buzzer does not sound. Scan in the B direction (minus Minus direction) to detect the line.
  • Page 61 Cut Out Data with Registration Mark Correct the light pointer position If the plotter fails to recognize any registration mark properly, the possible cause is an error in the positional relationship between the MARK sensor and the light pointer. In this case, adjust the position of the light pointer. Install a cutter in the tool holder.
  • Page 62 By pressing the jog keys , adjust the light pointer position so that the center of the light pointer is in alignment with the center of the cross pattern. Press the key. ENTER/HOLD C U T 1 0 5 0 0 .
  • Page 63 Cut Out Data with Registration Mark Alignment of MARK SENSOR The offset value of the cutter and the mark sensor can be adjusted. Set the sheet on which the register mark is printed. Usable on Firmware Ver.1.1 or lator. Install a cutter in the tool holder. Confirm that the plotter is in the local C U T 1 0 5 0...
  • Page 64 Cut Out Data with Registration Mark Press the key. ENTER/HOLD A = 0 . 0 B = 0 . 0 • The offset value of the cutter and the mark sensor can be adjusted. • Set the sheet on which the register mark is printed. Misaligned by +0.2 mm from the center line of the register mark (...
  • Page 67 D202007-14-30112011...
