Summary of Contents for Luxon Video LIN104M

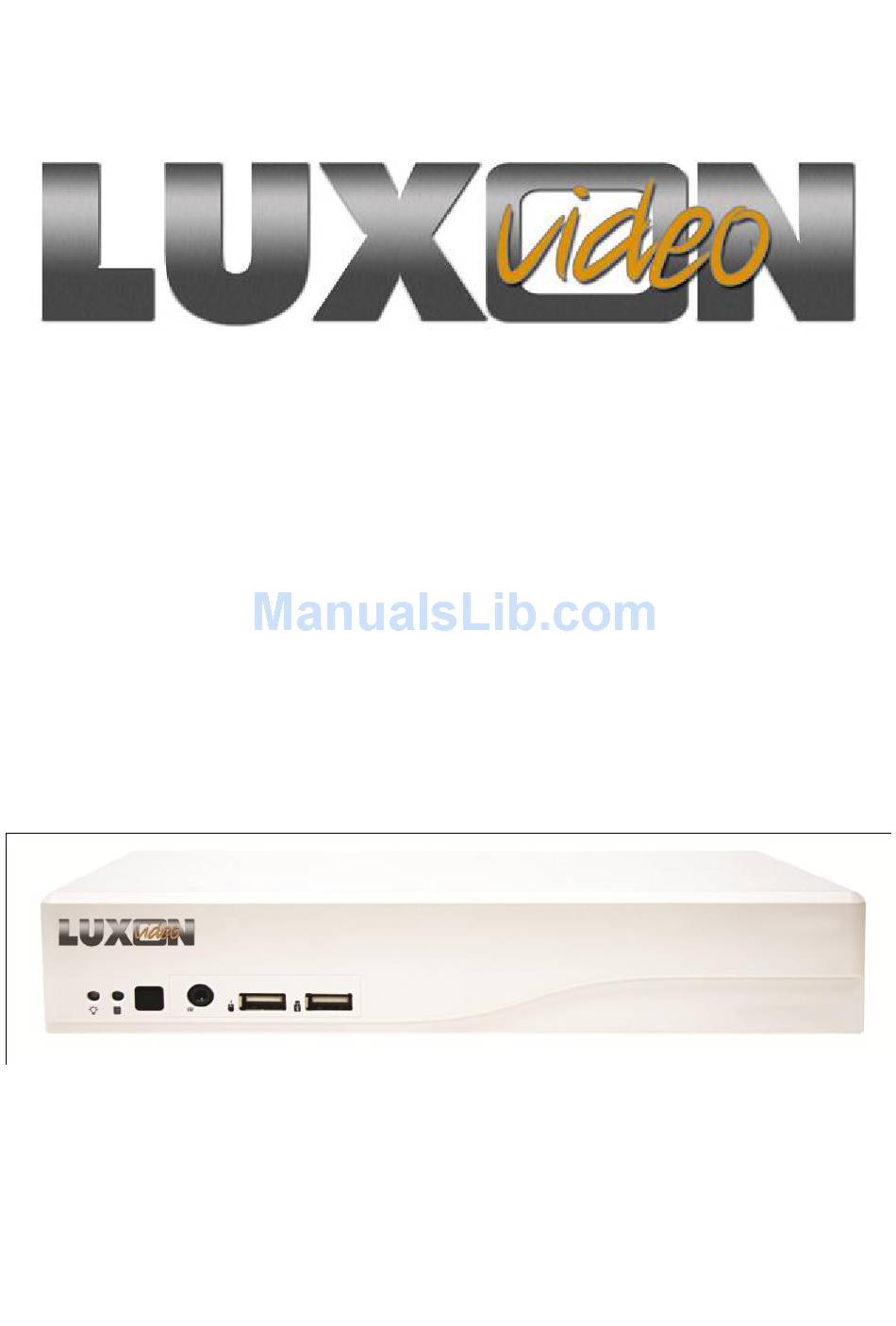

- Page 1 Hybrid Mini DVR LIN104M/LIN108M Quick Installation Guide...
- Page 3 COPYRIGHT All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of the manufacturer. TRADEMARKS All other products or corporate names mentioned in this documentation are for identification and explanation purposes only, and may be trademarks or registered trademarks of their respective owners.
-
Page 5: Table Of Contents
Table of Content Package Contents ................... 1 4CH Mini DVR ..........Error! Bookmark not defined. 8CH Mini DVR ..........Error! Bookmark not defined. Hardware Installation ........Error! Bookmark not defined. Install the hard disk ........ Error! Bookmark not defined. Device Connection ................2 III. -
Page 7: Package Contents
Package Contents If there is any damage, shortage or inappropriate item in the package contents, please contact with local dealer LIN104M (4) Power Cord (*The power cord may vary (1) 4CH Mini DVR unit according to the local electricity system.) -
Page 8: Device Connection
A. Device Connection Pen drive and external hard disk must be FAT32 format. All connected devices have their own power supply are necessary. 4CH Mini DVR - 4CH Mini DVR supports both Analog and IP camera in 4 channels. - 1.3 M with H.264/MPEG4/ MJPEG on the first 4 channels and 2.3M with MJPEG on the 1st channel for IP cam connection. - Page 9 8CH Mini DVR - 8CH Mini DVR only supports first 4 channels for IP camera connection. - 1.3 M with H.264/MPEG4/ MJPEG on the first 4 channels and 2.3M with MJPEG on the 1st channel for IP cam connection. The back panel of the 8CH Mini DVR user can connect up to 8 cameras in combination of analog and IP camera (8CH Mini DVR only support first 4 channels for IP camera connection).
-
Page 10: First Time Using The Dvr Unit
III. First Time Using the DVR Unit 1. Connect the mouse to DVR unit (through USB port). 2. Connect all necessary external devices. DVR unit doesn’t supply the power to connected external devices. 3. Plug the power to turn on the DVR unit. 4. - Page 11 In Camera section, mark Display to allow the live video of camera to display on surveillance screen. And then, select the channel for Enable Audio and enter the Name and Description of the channel. g. Adjust the bright, contrast, hue, and saturation of the camera. h.
- Page 12 IP camera - 8CH Mini DVR only supports first 4 channels (CH1~4) for IP camera. - 4CH Mini DVR supports both analog and IP camera in 4 channels. - 1.3 M with H.264/MPEG4/ MJPEG on the first 4 channels and 2.3M with MJPEG on the 1st channel for IP cam connection.
-
Page 13: Recording The Live Video
g. Enter IP address in IP Camera site column or enter the URL of IP camera. h. Enable Authentication and enter ID and password if IP camera’s access authority is required. Click OK to save the setting. When the IP camera has connected, user should see the camera information of Protocol, Model, Video Format, IP port, and Channel. -
Page 14: Familiarizing The Buttons In Preview Mode
Familiarizing the Buttons in Preview Mode Name Function (1) Logout Reboot: To restart the DVR system. It is required to enter the password Power Off: To shut down the DVR system. It is required to enter the password Login: Using different ID to login to DVR system. Cancel: To return to DVR application. - Page 15 Name Function (6) Setup Configure the system settings. (7) PTZ Access PTZ control panel. (8) Preview Switch to Preview mode. This allows you to view live camera display. (9) Playback Switch to Playback mode. This allows you to view the recorded video file. (10) Status bar Display the current date, time, hard disk free space and temperature of unit.
-
Page 16: Playback Recoded Video
VI. Playback Recoded Video 1. In preview mode, click the Playback button. Preview Mode 2. In Time and Date Selection window, select the date and time to playback. The numbers from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 08 represent the camera ID. The blue colored column indicates that there is a recorded video file on that period of time. -
Page 17: Familiarizing The Buttons In Playback Mode
VII. Familiarizing the Buttons in Playback Mode To switch in Playback mode, click Playback button at the lower right corner of Preview mode. Name Function Select from 4 different split screen type to playback the recorded video file (1) Split Screen of all the camera, or one camera over the other or alongside on a single Mode screen. - Page 18 Name Function (5) Date Select the date on the calendar and the time from 00 to 23 to where to start playing the recorded video file. The numbers from 00 to 23 represent the time in 24-hour clock. The numbers from 01 to 08 represent the camera ID.
- Page 19 Name Function Search from the recorded activities that were recorded in event log (i.e., (16) Event Search Sensor, Motion, Video Loss). To enhance the video quality. Set the de-interlace mode to #1, if you are (17) De-interlace capturing motionless picture and #2, if it captures lots of movement.
