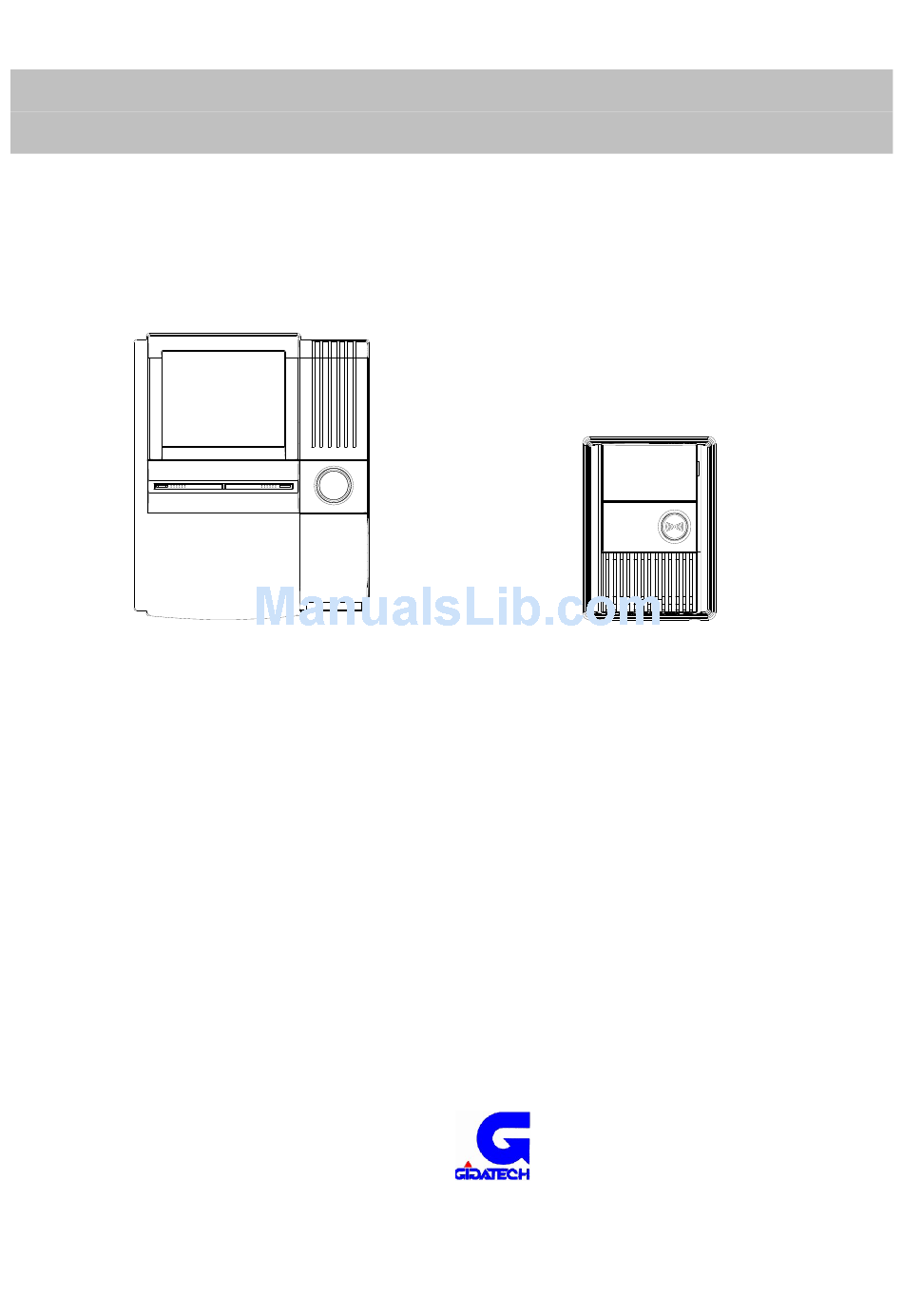

HANDS-FREE VIDEO DOORPHONE PACKAGE
HDC-500 User's Manual
HC-500 hands-free monitor
DC-500 weather proof door camera
Thanks for your purchasing of the video doorphone package.
Please read this manual thoroughly to ensure correct installation and
operation.
( To put FCC, CE, UL Logo)
GIGATECH R&D CORP.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC-500 and is the answer not in the manual?

Questions and answers

Related Manuals for Gigatech HDC-500

Summary of Contents for Gigatech HDC-500

  • Page 1 HANDS-FREE VIDEO DOORPHONE PACKAGE HDC-500 User’s Manual HC-500 hands-free monitor DC-500 weather proof door camera Thanks for your purchasing of the video doorphone package. Please read this manual thoroughly to ensure correct installation and operation. ( To put FCC, CE, UL Logo)
  • Page 2 FEATURE IDENTIFICATION & COMPONENTS 1 4” B/W flat type CRT screen 2 Speaker 3 Lock release button 4 Door status light indicator 5 Speak-out button (one way) 6 Speakerphone button (two way) 7 Microphone 8 Brightness tuner 9 Sharpness tuner 10 Bell volume tuner 170mm 11 Speakerphone volume tuner...

  • Page 3: Positioning The Devices

    POSITIONING THE DEVICES Proper height 1500 1400 HC-500 narrow less than 30cm Normal 2 wires (recommend 2AWG#18 wires for distance of 100m) uNarrow space may cause feedback echo on speakerphone function uToo close to high powered magnetic device may cause audio/video interference Proper height DC-500 less than...

  • Page 4: Installation

    INSTALLATION HC-500 l2 wires from door camera lWall mount metal plate lHands-free monitor lAdaptor ( do not plug at this stage ) DC-500 l2 wires from hands-free monitor lWall mount bracket lDoor camera uTerminals labeled as door camera ( no polarity of these 2 wires ) vTerminals labeled as monitor ( no polarity of these 2 wires) wThe 2 wires are not included in the package ø...
  • Page 5 EXTRA FUNCTION W/THIRD PARTY MATERIALS Magnetic switch Door status light indicator Door HC-500 Install Magnetic switch on the protecting door The door status terminals on HC-500 monitor have no polarity The magnetic switch and wires are not included in the package Door release Electric lock button...

  • Page 6: Test After Installation

    TEST AFTER INSTALLATION Plug the adaptor power Test the monitor by the following steps Brightness tuner Sharpness tuner Bell volume tuner a. Press the call button from door camera Speakerphone volume tuner Speak-out button (1 way speaking) b. Check and adjust bell volume Speakerphone button (hands-free 2 way conversation) Instruction...

  • Page 7: Operation

    OPERATION Visitor calls from door camera 1.One way audio & video monitoring the visitor (if no answer from indoor monitor, automatic cut off in 30 seconds) 2.Press-on the speak-out button can speak out to the visitor 3.Press lock release button can open the door (if electric lock is installed) 4.Door status light off when door opened (if magnetic switch is installed)

  • Page 8: Service And Warranty

    SERVICE AND WARRANTY Terminal lable Model and serial number sticker Model and serial number sticker HC-500 DC-500 To receive after sales service, please provide the following information when contact Name of the product Model and serial number of the product The store’s name where you purchased Date purchased Idea and area of possible problems...
