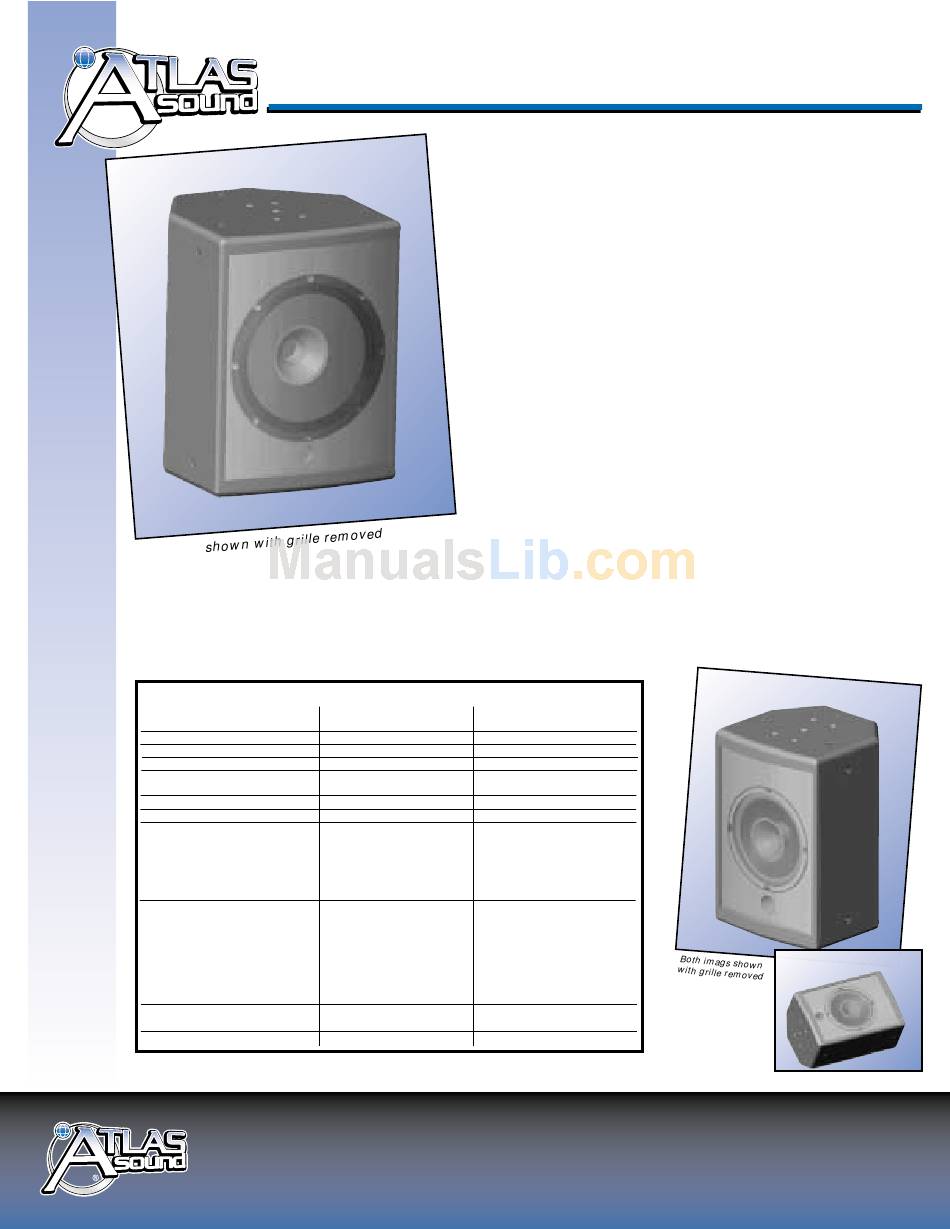

Atlas SM12CXT-B Specification Sheet

SM12CXT-B
SPECIFICATIONS
Model
FREQUENCY RESPONSE
(±3dB)
POWER HANDLING
TRANSFORMER TAPS
SENSITIVITY
(1W/1M)
MAX. SPL @ 1 METER
(FULL RATED POWER AT 8 OHMS)
NOMINAL DRIVER IMPEDANCE
DISPERSION
(2kHz OCTAVE BAND)
LF TRANSDUCER
BASKET MATERIAL
CONE MATERIAL
SURROUND MATERIAL & DAMPENING
VOICE COIL DIAMETER
MAGNET WEIGHT
HF COMP. DRIVER
DIAPHRAGM MATERIAL
VOICE COIL DIAMETER
VOICE COIL FORMER MATERIAL
VOICE COIL MATERIAL
THROAT DIAMETER
MAGNET WEIGHT
TOP PLATE THICKNESS
Dimensions
Weight
1601 Jack McKay Blvd.
Ennis, TX 75119
AtlasSound.com
Tech Support 800.876.3333
SM8CXT-B
SM12CXT-B
60Hz to 15kHz
55Hz to 15kHz
150 Watts RMS 250 Watts RMS
7.5, 15, 30, 60 7.5, 15, 30, 60
92dB 99dB
114dB 123dB
8 ohms 8 ohms
90 Degrees 90 Degrees
Cast Aluminum Cast Aluminum
Polypropylene Treated Paper
SBR Cloth Edge
2" (51mm) 2.5" (63.5mm)
34oz. 70oz.
Titanium Titanium
1" (25mm) 2" (51mm)
Kapton® Kapton®
Copper Copper
0.925"(23.5mm) 1"(25mm)
20oz. 40oz.
0.186 (4.7MM) 0.218" (5.56MM)
15 1 ⁄ " L x 10 5 ⁄ " W x 10 3 ⁄ " H 19" L x14
2 8 8
39.27cm L x 27cm W x 26.35cm H
48.26cm L x 36.83cm W x 35.56cm H
19 lbs. (8.62kg)
39 lbs. (7.17kg)
• Five Year Limited Warranty •
Printed in the USA
Specifications are subject to change without notice.
©2003 Atlas Sound LP. Atlas Sound is a trademark of Atlas Sound LP. All rights reserved.
484064
SM12CXT-B / SM8CXT-B
Strategy Series
High Performance In A Very
Compact Footprint

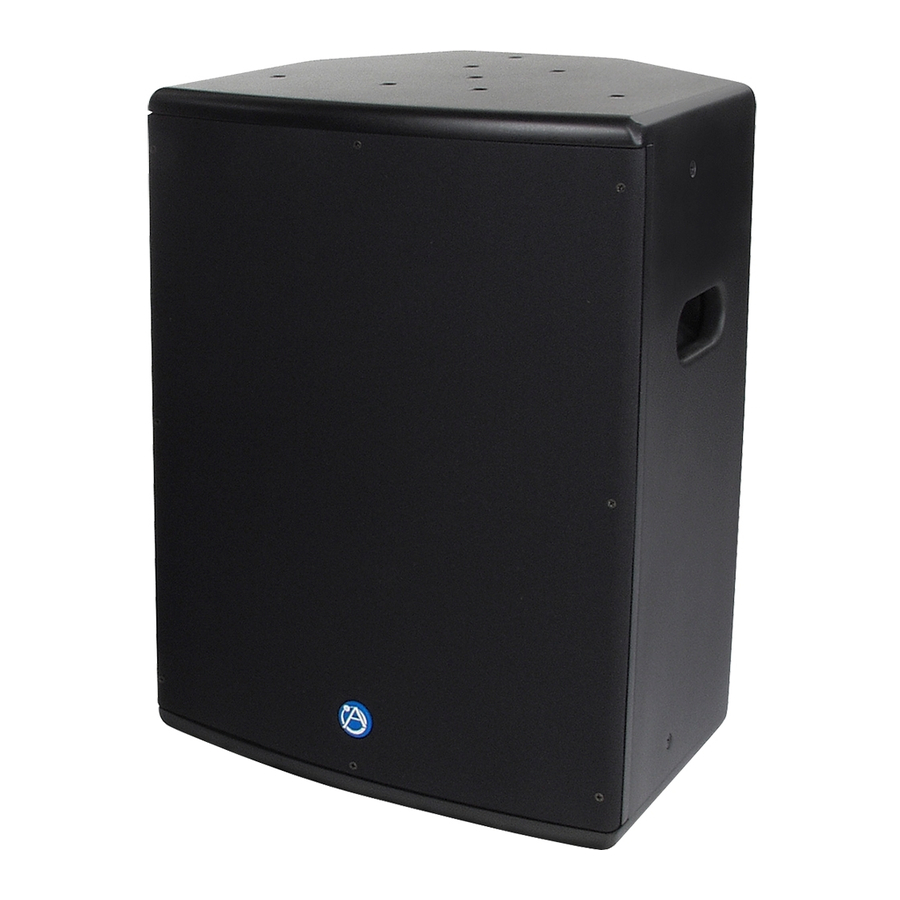

The SM12CXT-B and SM8CXT-B (12" & 8" compression
driver coaxial cabinets) feature the high efficiency and
pattern control of the Atlas Sound 8CXT60, and 12CXT60
compression driver coaxial loudspeakers in a new, highly
versatile enclosure system designed to fit a wide variety of
applications including:
• School auditoriums, gymnasiums & cafetoriums
• Church sanctuary systems (F.O.H and/or monitors)
• High level foreground music systems
• General live sound reinforcement (installed or portable)

Common Features

• Multiple 1 ⁄ "-20 inserts, providing fly points for a variety of
4
mounting configurations
• Includes internal, high efficiency 60 Watt 70.7/100V trans-
former (may be bypassed for 8 ohm operation)
• Barrier strip input for 70.7/100V/8 ohm or parallel 4 pole
Speak-On™ input for 8 ohm operation only
• Unique input panel allows use of standard 4" square box
cover for applications where flex conduit is
(Raco 753 or eq.)
required for termination
• Fuse protection for low and high frequency drivers
• Attractive, yet heavy-duty grille assembly
• Durable black, rough-coat finish
• Optional bracket for wall mounting
• Omnimount™ compatible
⁄ " W x 14" H
1
2
000503
®
SM8CXT-B
as floor monitor
ATS001572 RevA 5/03
