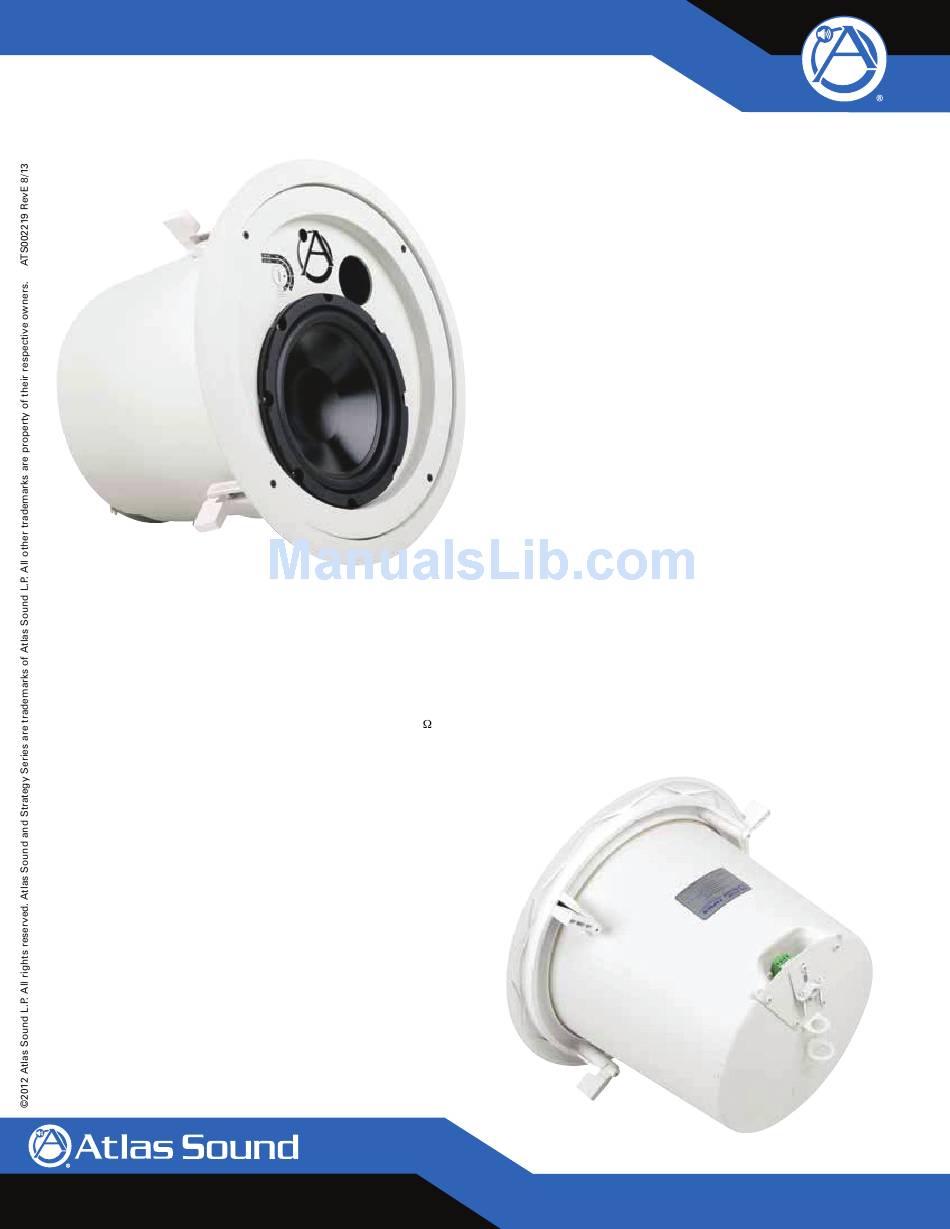

II In-Ceiling 70.7V / 100V / 8 Ω Subwoofer System
®
Specifications
Woofer Size:
Woofer Impedance:
Transformer Taps at 70.7V:
Power Handling:
Sensitivity (1 W / 1 M):
Frequency Response:
Dispersion:
Low Pass Filter:
Magnet Weight:
VC Diameter:
VC Material:
VC Former Material:
Cut-out Diameter:
Height:
Diameter:
1601 JACK MCKAY BLVD. ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333
FAX (800) 765-3435
FAPSUB-1
FAPSUB-1
8" (203mm)
8Ω Direct Coupled (Nominal)
1.9, 3.8, 7.5, 15, 30, & 60 Watts & 8
Bypass
100 Watts RMS
89dB Average
45Hz – 120Hz (±10dB),
55Hz – 100Hz (±6dB)
Omni
Three Pole Design 18dB / octave @ 120Hz
Nominal, 20oz (580g)
35.5mm
Copper
®
Kapton
14" (355mm)
12
3
⁄
" (324mm)
4
15
3
⁄
" (400mm)
4
Features
•
Tuned and Ported, Long Excursion 8" Subwoofer System Produces
Amazing Extended Low Frequency Response in Any Ceiling Speaker
System
•
High Efficiency, Passive Crossover Network Eliminates the Need for
Dedicated Amplifier and/or Active Crossover
•
Low Crossover Point Greatly Reduces Localization (Ability of Listener
to Identify the Subwoofer Location)
•
Front Mounted Tap Selector Switch for Easy System Tuning
Adjustment Includes Transformer Bypass Setting for 8Ω / Direct
Coupled Operation
•
Easy Installation in Drop Tile or Sheetrock Ceilings Via C-Ring / V-Rail
Tile Bridge and "Dog Leg" Mounting System (Included)
•
Uniquely Designed, Easy Access Input Panel Design Allows for Thru
Conduit Runs Using Flexible or Rigid Conduit
•
Detachable, Phoenix Style, Locking, Four-pole Euro Connectors for
Easy Daisy Chain Wiring
•
Attractive Stud Mount Grille Matches Aesthetics of Other Atlas
Sound FAP Series
•
UL Listed – 1480
Applications
In recent years, there has been a shift in market demand for commercial
sound systems to deliver higher fidelity sound. Retail, restaurant, and
hospitality owners and managers are finding that their customers are
expecting the quality of their shopping or dining experience to be enhanced
by music reproduced at nearly the same sound quality they expect in
their home theaters and car stereos. Business owners now realize that
the excitement caused by a quality audio system can turn into increased
customer satisfaction. The FAPSUB-1, when used in conjunction with
other Atlas Sound full-range speakers, provides great sounding background /
foreground music reproduction suitable to these applications.
AtlasSound.com
FAPSUB-1
(back)
1/4
