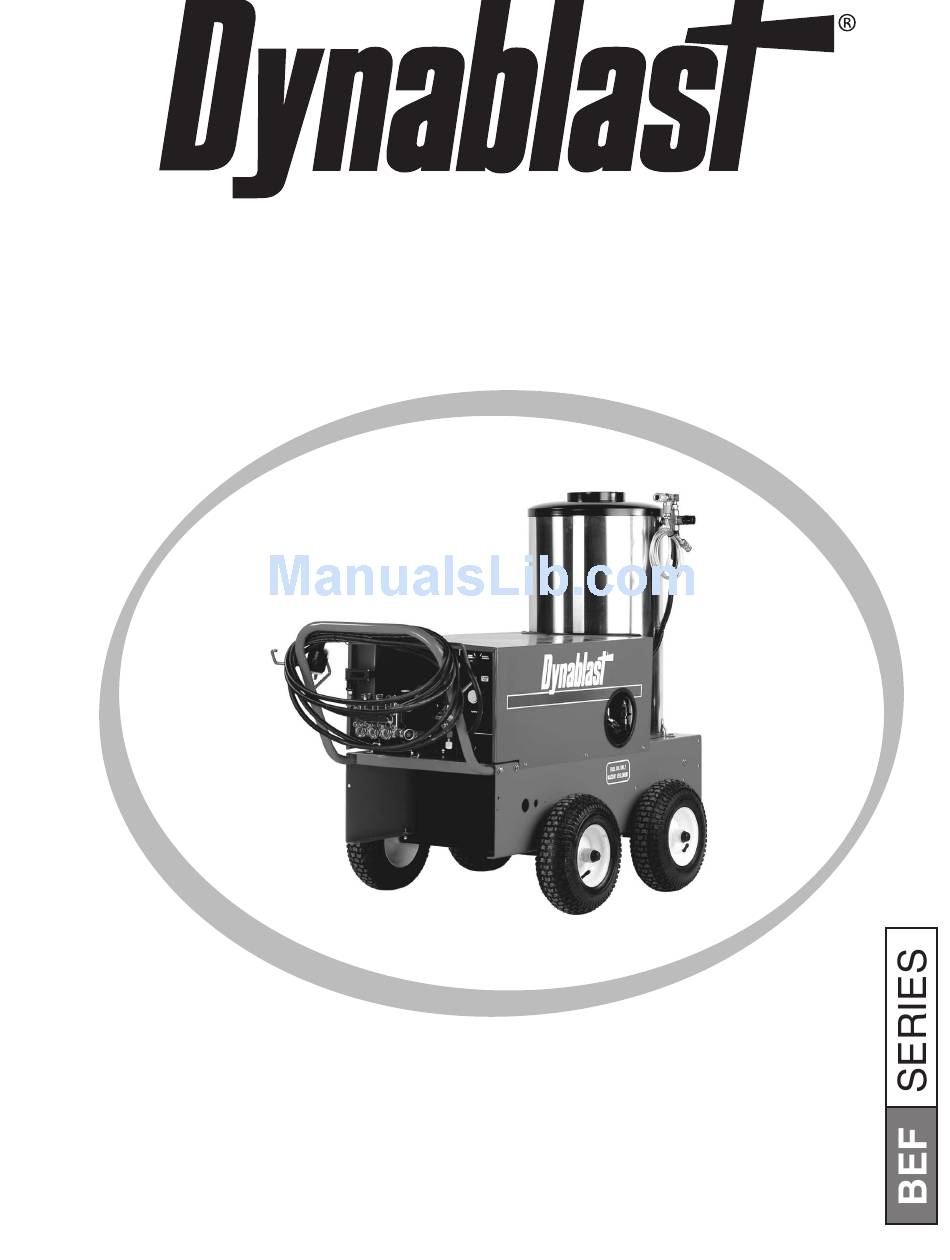

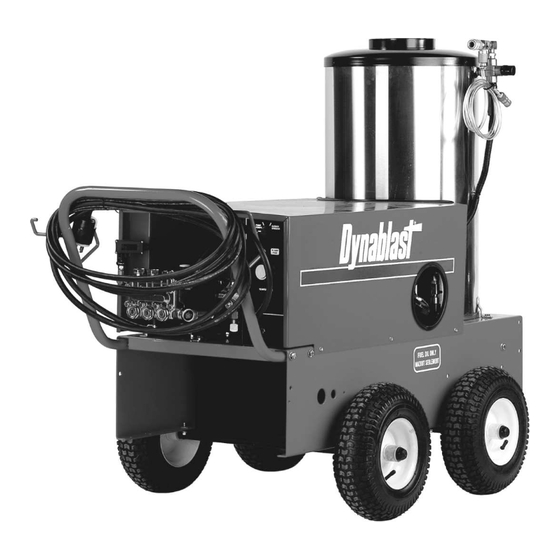

- Page 1 ı ˇ OP ER ATO R 'S M A N UAL ı ı ˇ ı HOT WATER PRESSURE WASHERS Dynablast Inc. 2625 Meadowpine Blvd. Mississauga, Ontario L5N 7K5, Canada 1-877-52BLAST (25278) www.dynablast.com MAN-BEF...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SERIES PAGE SAFETY INSTRUCTIONS SETTING UP 2 - 3 OPERATION 3 - 4 SAFETY COMPONENTS WASHING TECHNIQUES WITH FLOAT BOX AND SOAP INDUCTION UNIT THINGS TO CHECK REGULARLY WINTERIZING YOUR PRESSURE WASHER SERVICE AND MAINTENANCE ANNUAL BURNER SERVICE INDOOR INSTALLATION SPECIFICATIONS AND FEATURES TROUBLESHOOTING... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SERIES Read all safety and operating instructions before using the unit. Read all electrical hook up instructions. Read warnings on additive containers. DO NOT CHANGE NOZZLE size. The incorrect nozzle could cause excessive pressure resulting in pump damage and possible personal injury. Refer to parts list for correct nozzle size. -
Page 4: Setting Up
SETTING UP SERIES If you find any damage due to shipping when unpacking the machine, contact your dealer. ELECTRICAL SUPPLY Arrange with an electrician to install a properly grounded, three-wire receptacle. To protect the receptacle from splashes, the recommended height above the ground level is a minimum of four feet. For safest operation, a ground fault interrupter (GFI) outlet should be installed. -
Page 5: Operation
SETTING UP (CONTINUED) SERIES ADJUSTING THE BURNER Allow sufficient air to obtain a clean looking flame by loosening the lock screws and moving the air shutter, and if necessary, the bulk air band. Reduce the air supply until the flame tips appear slightly smoky, then increase the air just enough to cause the flame tips to appear absolutely clean. -
Page 6: Safety Components
OPERATION (CONTINUED) SERIES CHANGING PRESSURE: The variable unloader valve is already set to full pressure. Do not adjust the unloader past the maximum pressure, as this will not increase the performance and the excessive shut-off pressure will damage the machine. CLEANING CHEMICALS Consult with your dealer for detergent recommendation. -
Page 7: Washing Techniques With Float Box And Soap Induction Unit
WASHING TECHNIQUES W/ FLOAT BOX SERIES AND SOAP INDUCTION UNIT Check that the Soap metering valve is adjusted to the ratio you want. Turn the Soap Induction metering valve to "on". Start the Pressure Cleaner. When the work area is covered, allow enough "dwell" time to maximize the effectiveness of the additive. Turn the Soap metering valve to "off". -
Page 8: Winterizing Your Pressure Washer
WINTERIZING YOUR PRESSURE WASHER SERIES (This is also good practice if the cleaner is to remain unused for more than 3-4 weeks.) WITH A FLOAT BOX Shut off the water supply, and disconnect hose. You need a short (2’) length of hose with a male garden hose fitting on one end. Connect the short hose to the inlet of the machine. -
Page 9: Annual Burner Service
ANNUAL BURNER SERVICE SERIES Clean Heating Coil - Remove burner from coil by removing the four flange mount nuts. Inspect inside of combustion chamber and if it is heavily sooted so that air passage could be a serious problem, clean the air passage with a heavy duty vacuum. -
Page 10: Indoor Installation
INDOOR INSTALLATION SERIES NOTE: Machines to be used indoors MUST be in accordance with local regulations and CSA Standards B139. • Make sure chimney is of suitable size. (7" minimum). • Make sure that there is enough air for combustion. •... -
Page 11: Specifications And Features
SPECIFICATIONS SERIES H4030BEF3A H3525BEF1 H4030BEF1 3B, 3C, 3D HOT WATER Pressure PSI 2500 3000 3000 MODELS Volume GPM (US) Nozzle Size *Water Temperature Engine Motor – HP ELECTRICS Amps 230V – 1 Phase Amps 208V – 3 Phase (3A) Amps 230V – 3 Phase (3B) Amps 460V –... -
Page 12: Troubleshooting
TROUBLESHOOTING SERIES TROUBLE POSSIBLE CAUSE REMEDY Low Pressure Leaks in water system Tighten all fittings Insufficient water supply Fill tank or increase line size to machine Outlet orifice worn or wrong size Replace with correct orifice. CAUTION: Do not use smaller than recommended.Excessive pressure will damage pump. - Page 13 TROUBLESHOOTING (CONTINUED) SERIES TROUBLE POSSIBLE CAUSE REMEDY Pump motor heating Coil scaling up Descale coil or overloading Water pump out of oil Fill to correct level. Check for leaks Overload switch operated Allow motor to cool. CAUTION – Switch may automatically reset Faulty motor Repair or replace...
-
Page 14: Electrical Schematics
60.1280.00 VB8 unload. 3/8F Bsp, 60.1290.00 VB8 unload. 3/8F Bsp, Latest update 22/03/2005... - Page 15 Pos. Description Q.ty K1 K2 K3 K4 Pos. Description Q.ty K1 K2 K3 K4 1 60.0058.31 3/8 Bsp F outlet fitting 21 60.1208.61 3,2 x 33 mm spring 2 10.3070.02 O ring 1,78 x 18,77 mm • 22 60.1210.31 Upper frame 3 60.0053.51 Spring 23 14.7421.00 1/4"...
- Page 16 ELECTRICAL WIRING DIAGRAM - 1 PHASE SERIES...
- Page 17 ELECTRICAL WIRING DIAGRAM - 3 PHASE SERIES...
-
Page 18: Warranty Policy
(but keep a copy for your files). DYNABLAST INC. liability under warranty is limited to repair of the product and/or replacement of parts and is given to the purchaser in lieu of all other remedies including incidental and consequential charges. There are no expressed warranties other than those specified herein. -
Page 19: Pump Warranty Policy
Dynablast Inc. warrants each pump manufactured by Interpump and General Pump to be free of defects in material and workmanship for a period of (5) five years from the date of shipment. In addition, Dynablast Inc. warrants all forged brass manifolds to be free of defects in material and workmanship and from damage resulting from freezing for the life of the pump.
