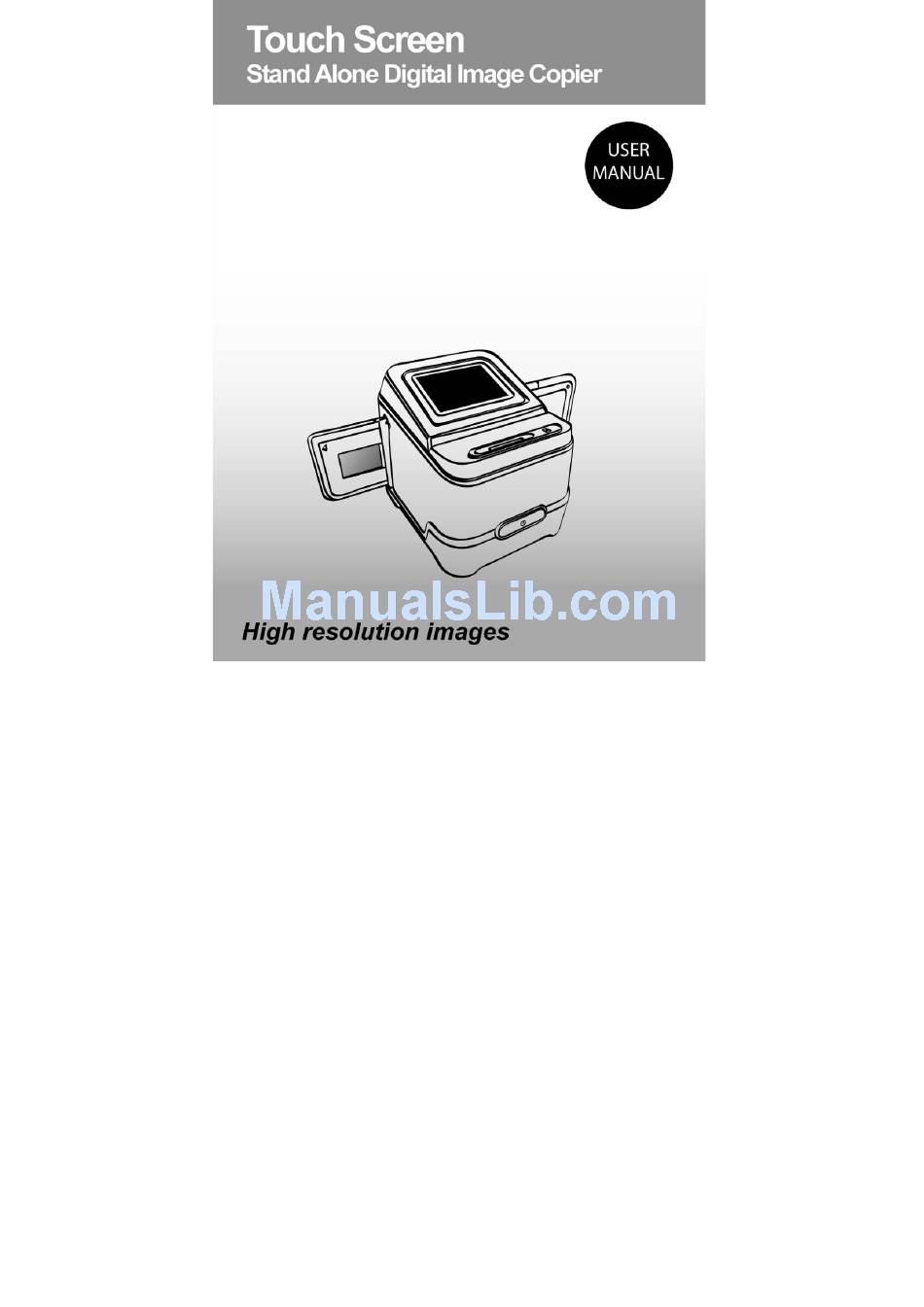

Reflecta x6 User Manual

Touch screen stand alone digital image copier
Hide thumbs Also See for x6:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
-0-

Advertisement

Table of Contents
loading

Related Manuals for Reflecta x6

Summary of Contents for Reflecta x6

  • Page 2: Table Of Contents

    Table of Contents 1. Precaution ..............2 2. Preparation ..............5  Standard Accessories ........5  Part Names ............. 6  Installing the Battery Pack ......8  Charging the Battery Pack……………… ..9 3. Place Film / Slide Into The Holder ......11 4.

  • Page 3: Precaution

    Welcome Thank you for purchasing a Digital Image Copier. Please take a moment to read through this manual. Its contents will send you on an educational journey into your recorder multiple capabilities. 1. Precaution Before using Digital Image Copier, please ensure that you read and understand the safety precautions described below.
  • Page 4 If you notice smoke or a strange odor coming from Digital Image Copier, turn the power off immediately. Take Digital Image Copier to the nearest authorized service center for repairing. Never attempt to repair Digital Image Copier on your own. ...
  • Page 5 FCC Notice This equipment has been tested and found to comply with the limits for a Class B Digitize device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 6: Preparation

    2. Preparation Standard Accessories Digital Image Copier Quick Guide 135 Slide Holder 135 Negative Holder 110 Negative Holder Clean brush (Optional) Adaptor USB cable TV cable Lithium Battery (Optional)

  • Page 7: Part Names

    Part Names...
  • Page 8 Note: We suggest using bundled brush to insert into the Digital Image Copier Film Holder Slot and clean the glass surface periodically to produce a clear image. Please make sure your film negatives / mounted slides and cover trays are clean before inserting into the Digital Image Copier as well.

  • Page 9: Installing The Battery Pack

    Installing the Battery Pack 1. Open the Battery Cover by lightly pressing and sliding it back as shown. You may open it with coin too. 2. Insert the supplied battery. Make sure the battery polarities match the (+ and -) sign indicated in the battery compartment.

  • Page 10: Charging The Battery Pack

    Charging the Battery Pack The battery pack is not fully charged at the time of purchase and therefore needs to be charged before use. If the battery charge becomes low while you are using the copier, it is recommended to recharge it as soon as possible.
  • Page 11 (b) Plug the USB mini B of the supplied AC adaptor to the USB port of the copier, and plug the adaptor to the power outlet. Please charge the battery at least 2.5~3 hours 3. Red LED will light on during charging. When the battery pack is fully charged, the red LED light will be off and you may disconnect the charging connections.

  • Page 12: Place Film / Slide Into The Holder

    3. Place Film/ Slide Into The Holder 1. Keep the glossy surface of the film in the upward direction. Open the negative/ positive slide holder as Illustrated. 2. Put a 135 positive slide/ negative film/ 110 negative film into holder as shown. 3.

  • Page 13: Using The Digital Image Copier

    4. Using the Digital Image Copier 1. Insert SD card into the SD Card Slot first. 2. Press Power on / off button to power on. Press Power on / off button to power off if you do not want to use the Image Copier. -12-...
  • Page 14 3. Insert the loaded film/ slide holder properly into the Film/Slide Holder Slot according to the ▲or ● sign shown on the Image Copier and film holder. (Insert from the right) (Insert from the left) -13-...
  • Page 15 You can adjust the location of the film by moving the Film Holder; the Film Holder can be moved in both directions. Keep your picture in the rectangular white frame, improper adjustment of picture may copy the black edges of the Film Holder. If the black edge of a slide film is on top or bottom of the LCD display, you may crop away the black edges later by the software.
  • Page 16 4. To select film type on the screen. Touch the preview area anywhere to enter the Main Function Mode. Touch the Film Type Icon for selection. The type of film selected is shown at the bottom of the LCD. -15-...
  • Page 17 135 positive negative (slide) 135 black & negative white Note: Improper selection of Film type may not get good result. 5. Touch the Copy Icon to convert picture to image. Digital -16-...
  • Page 18 To get the best Digitize image wait for the image display on the LCD screen to adjust the brightness until it becomes stable. It normally takes 3~4 seconds, depending on the brightness of your film. Wait for the “Wait” cursor to disappear, then you may take your next picture.
  • Page 19 7. Moving the Film Holder for next. 8. The exposure of the copier is set automatically, in some occasion you need to adjust the brightness (exposure) at your subject. Touch the EV Icon to adjust expose value. -18-...
  • Page 20 Touch the Icon to adjust the exposure compensation from +2EV to -2EV in 0.5 increments. The amount of compensation is shown at the bottom of the LCD. -19-...
  • Page 21 9. The white balance of the copier is set automatically, in some occasion you need to adjust the color (RGB) at your subject. Touch the RGB Icon to adjust color value. Touch the Icon to adjust the color, the degree of adjustment is shown directly on the screen. -20-...
  • Page 22 Touch the RGB Icon to change to other color G and B. Touch the Home Icon to quit the menu. -21-...

  • Page 23: Playback Mode

    5. Playback Mode Touch the preview area anywhere to enter the Main Function Mode. 2. Touch the Playback Icon once for playback Digital image. Touch the Slide Show Icon for slide show reviewing. -22-...
  • Page 24 3. Touch the preview area anywhere to enter Playback Function Mode. 4. Touch the Right Icon to forward reviewing. touch Left Icon for backward reviewing. -23-...

  • Page 25: Delete Mode

    6. Delete Mode 1. Under Playback Mode Touch the preview area anywhere to enter Delete Function Mode. 2. Touch the Delete One Icon to delete the preview image. -24-...
  • Page 26 3. Touch the Delete All Icon to delete all images. 4. Touch the Format Icon to format the SD card.. Note: Formatting SD card will delete all the files in the card. Download your files in the SD card into your computer before the SD card is formatted.

  • Page 27: Calibrate The Touch Screen

    7. Calibrate the Touch Screen Press Power on / off button to power on. Press Power on / off button and hold it about 4 seconds. The calibration point show on the screen. Touch the center of the calibration point one by one to calibrate the screen touch position.

  • Page 28: To Link The Card To Computer

    8. To Link the Card to Computer 1. Plug the USB cable to copier and computer properly. 2. Turn on the power. 3. Touch the YES Icon to select “SD to PC”. -27-...
  • Page 29 4. To active bundled software-MediaImpression, the images saved in SD card will be imported to your computer automatically for reviewing. Please copy the images from SD card to the designated folder or album of your computer. -28-...
  • Page 30 Note: Bundled MediaImpression is only for images editing purpose. The Acquire function is for Film Scanner / Photo Scanner without LCD display. -29-...

  • Page 31: Viewing Images From Tv

    9. Viewing Images from TV 1. Set TV to video mode, and plug the TV cable to copier and TV set properly. Turn power on. 2. Touch the NTSC or PAL Icon for viewing image on TV. You have to know the TV system, NTSC or PAL of your country.
  • Page 32 3. When the image is shown on the TV screen. Touch the Right Icon to forward reviewing. Touch the Left Icon to backward reviewing. -31-...
  • Page 33 4. Touch the Slide Show Icon for slide show on the TV screen. The slide show can be stopped by touching the Slide Show Icon. The slide show can be continued by touching the Slide Show Icon again. -32-...
  • Page 34 5. Touch the Home Icon during the slide show will terminate the TV mode and the film scanner will return to the original stage. 6. Press Power on/off button to turn off when no further TV viewing. -33-...

  • Page 35: Edit The Pictures

    10. Edit The Pictures First, click on the picture to select, and then use the ArcSoft MediaImpression tools to edit the pictures as you like. Edit Photo Editing Tools The Photo Editing Tools module includes a complete set of photo enhancement, editing and retouching controls. The windows can be stretched to provide a large size view of the active photo.
  • Page 36 1.2 Color This feature is designed to fix Digitize photos that have unnatural color or appear too dark. It’s also great for fixing scanned versions of old prints that have faded or whose colors have changed after many years. How to fix the color of a photo: 1.
  • Page 37 2. Drag the small white box inside the zoom navigator to move over a red eye. 3. Place your cursor directly over the red eye and click. 4. Repeat the process until all the red eyes are fixed. 5. Click “Undo” if you make a mistake or don’t like the result.
  • Page 38 How to use Straighten: 1. Move the slider (or click the rotate buttons) until the photo appears straight. 2. Use the superimposed grid lines for vertical and horizontal reference. 3. Click “Apply” if you like the result. Click “Cancel” if you do not.
  • Page 39 2. Retouch 2.1 Healing Brush The Healing Brush is good for fixing dust, scratches and removing skin blemishes. How to use the Healing Brush to fix a skin blemish: 1. Establish a source point for the Healing Brush by holding the Shift key and clicking on an area of the skin that is close in color and texture to the area you want to heal.
  • Page 40 2.2 Clone The Clone tool is good for the removing unwanted elements from a photo. It can also be used for a fun effect, like moving a nose from one person t another. How to use the Clone tool to remove a telephone pole from the background of a photo: 1.
  • Page 41 2.5 Sharpen Sharpen blurry areas. Click and drag the sliders below to change the brush size and transparency. 2.6 Blur Smooth out rough areas. Click and drag the sliders below to change the brush size and intensity. 2.7 Paint Brush Allows you to “paint”...
  • Page 42 3. Clipboard Clip the pictures by selecting Rectangular, Elliptical, Freehand, Magic want and Magnetic. Note: For more detailed information, please refer to the [Help section] of program. -41-...

  • Page 43: Appendix

    11. Appendix Specifications Image Sensor 1/2.3” inch 9 mega CMOS sensor Preview and review 2.8” color Touch Screen LCD Display Lens Specification F=6.25, f=13.0mm 2G2P Color Balance Automatic Exposure Control Automatic Support film size 135 Negative (36mm x 24mm) auto cropping 110 Negative (17mm x 13mm) Support film type Slide...

  • Page 44: Icon & Indicators

    Icons & Indicators Battery Full Delete One Battery 2/3 Delete All Format SD Battery 1/3 Card Battery Empty Quit the Menu Slide Image Quality 135 Negative Copy Film B/W 135 Yes / No Negative Film 110 Negative Card Error Film RGB Color Card Full Level...

  • Page 45: System Requirements

    PC System Requirements ®  Pentium P4 1.6GHz or equivalent AMD Athlon  Free USB2.0 port  512MB RAM  500MB free hard disk space  1024 x 768 pixel color monitor  CD-ROM drive ®  Windows XP Service Pack II / Vista™, 32/64 bits Windows 7 Mac System Requirements ...
