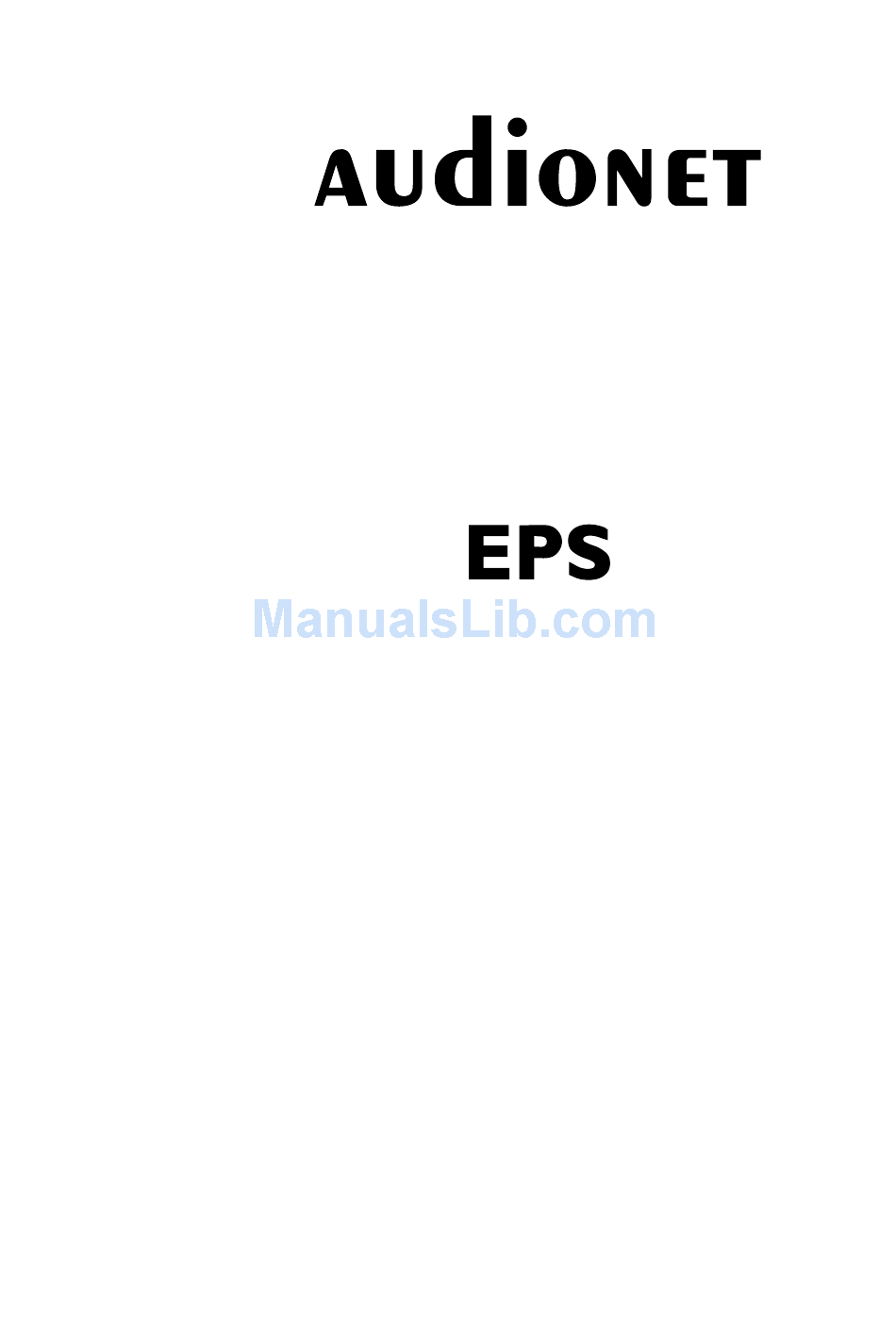

- Page 1 Enhanced Power Supply User's Manual...
-
Page 3: Table Of Contents
Contents Preface..................4 Included..................5 Transport ..................5 Overview front panel ..............6 Overview back panel..............7 Installation and connection ............8 Placement ..................8 Mains connection ................8 Connecting the mother unit............9 Usage ..................10 Powering up ................10 Switching on/off................10 Technical Information ..............11 Security advice................12 Technical data ................13... -
Page 4: Preface
The Audionet-Team would like to congratulate you for purchasing the Audionet EPS! Surely you are a satisfied owner of an Audionet device. With the external power supply EPS you have the possibility to give all connected units a more sophisticated fundament. -
Page 5: Included
· Always use the plastic bag to prevent scratches on the casing. · Please allow the EPS to adapt to the climatic conditions in your lis- tening room before you switch on the unit for the first time after transport. -
Page 6: Overview Front Panel
Overview front panel... -
Page 7: Overview Back Panel
Overview back panel... -
Page 8: Installation And Connection
Place the EPS right beside or at least 20 cm above/below of the mother unit. · It is recommended to place the EPS into a high quality rack or onto a stable table. · Do not expose the unit to direct sunlight. -
Page 9: Connecting The Mother Unit
· The EPS is a Class I unit and must be earthed. Please ensure a stable earth connection. The Phase ('hot' pin) is marked 'PHASE' 6 on the back panel for the mains input. -
Page 10: Usage
(see section 'Mains connection' on page 8 and 'Connecting the mother unit' on page 9). The EPS is a stand by unit. Please operate the mains switch 1 on the back panel to put the EPS in stand by mode. -
Page 11: Technical Information
The output voltage is not short term stable: The inner resistance is 10 times as bad as the one of your EPS causing a 10 times higher output voltage ripple at the same load fluctuations. The output voltage is not long term stable: The output voltage of an accu- mulator is highly dependent from its state of charge and usage his-tory, typically ranging from 23 to 28 Volts (The EPS always provides 24.00V) -
Page 12: Security Advice
Security advice Important · Avoid packaging material, especially plastic bags, coming into chil- dren's hands! · Store and operate the unit in a dry room at a reasonable room tem- perature only! · Avoid moisture, any liquids, dirt or small objects getting into the unit! ·... -
Page 13: Technical Data
100VA toroidal transformers and Power supply 260.000 mF capacity reference voltage sources for pos. and neg. analog Circuitry voltages using discrete Audionet voltage regulators (MOS) Connections 7-pin socket for connecting the mother unit ±24.00 V for analog sections, Output voltage approx.
