Summary of Contents for SmartAVI SuperMatrix

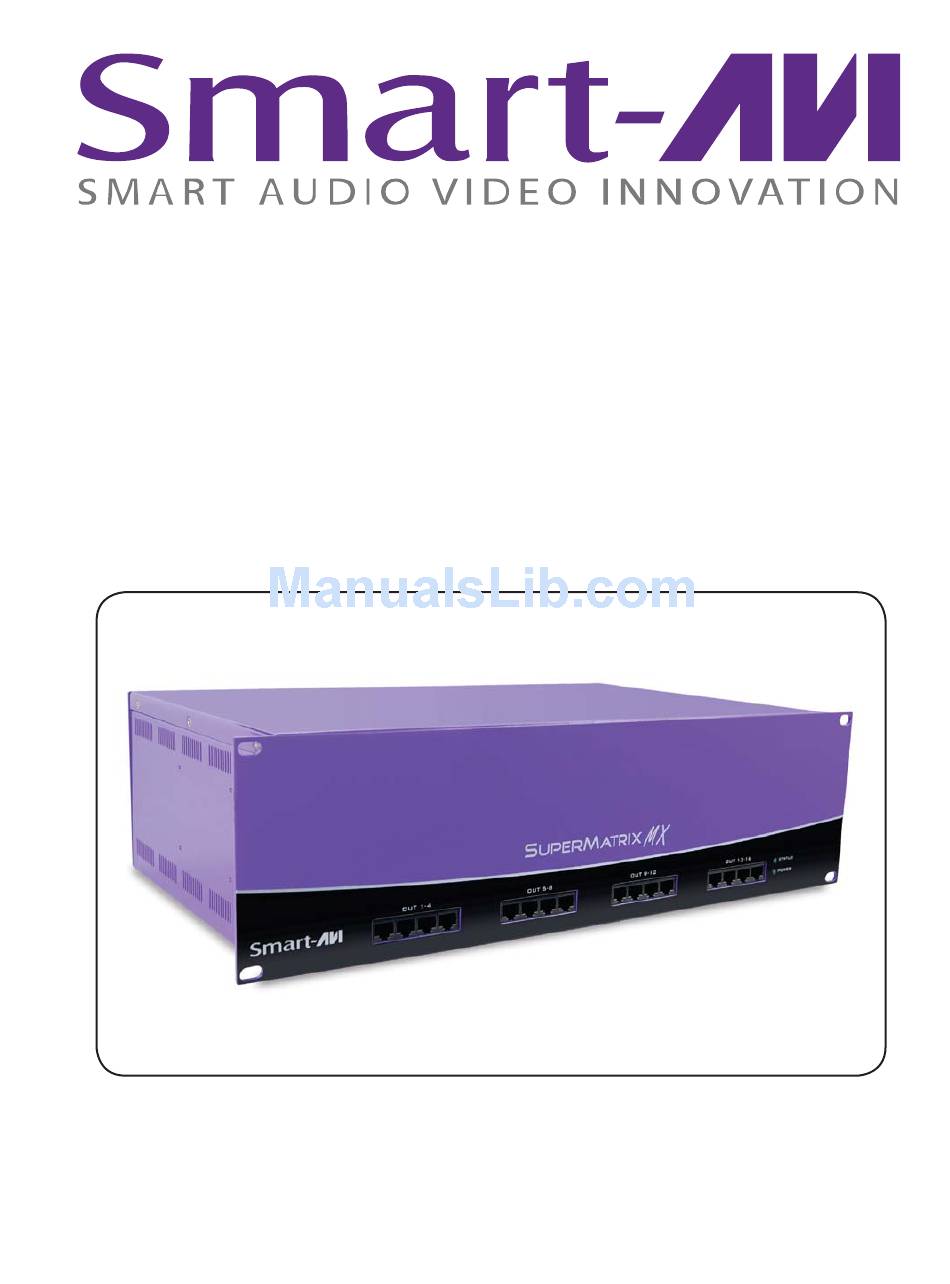

- Page 1 User Manual SuperMatrix Multi-format non-blocking audio, video, RS-232 and infrared distribution matrix. Controlled via software, remote control or over the Internet.
- Page 2 SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
-
Page 3: Table Of Contents
What’s in the Box ........................4 Overview ............................ 5 Applications ..........................5 Chapter 2: Installation........................6 Connecting the SuperMatrix (Quick Start) ............... 6 Connecting the SuperMatrix (Detailed Instructions) ............ 7 Video and Audio Inputs ....................7 Connecting the Receivers (XTPro/XTAV)..............8 Connecting the Communication Cable.............. -
Page 4: Chapter 1: Introduction
SM-EYE IR emitter 6ft single LED SM-LED TCP/IP Control. Includes: [SMTCP, (CCRS232MM ) and (PS5VD1A)] SM-TCPS Handheld IR Remote Controller SM-RMT Smart control application software providing source/destination selection, name editing, and mes- SMP-SW saging. Included in all SmartAVI Matrix investments. -
Page 5: Overview
Chapter 1: Introduction Overview At times multiple AV signals need to be transferred to multiple nearby output monitors. The Super Matrix allows multiple VGA/audio inputs to be routed to multiple outputs simultaneously, by way of a direct connection into the router. The Super Matrix is a high-quality switching matrix for VGA type signals. -
Page 6: Chapter 2: Installation
1. Connecting the video connect all the video input at the SuperMatrix to all the sources. The SuperMatrix used HD15 Male cable to support XVGA, Svideo, Components video and Composite Video ( SmartAVI offers special Adaptors for most of the video type of signals) 1. -
Page 7: Connecting The Supermatrix (Detailed Instructions)
The audio inputs for the SuperMatrix are standard 3.5 mm Stereo Mini plug connectors. Connect all of the audio inputs to the back of the SuperMatrix unit. Many computer audio sources use this standard connection but there is other equipment such as receivers, and VCRs where a special adapter cable will be needed. -
Page 8: Connecting The Receivers (Xtpro/Xtav)
Connecting the Receiver: XTPro-RX Connecting The Receiver Connect CAT5 cable coming from the SuperMatrix to the back of the receiver. Connect 1-2 display monitors to the VGA out connectors on the front of the receiver. Connect 1-2 sets of external speakers to the audio output connections on the front of the unit. -
Page 9: Connecting The Communication Cable
Chapter 2: Installation Connecting the Control Communication Cable: RS-232 Each unit can be controlled by a RS-232 port connected from the back of the chassis. The SmartControlPro software will be used to control the units. Connect the RS-232 cable the control computer by connecting the female RS-232 connector into the male RS-232 connector of the PC. -
Page 10: System Power On
Turn computer on and make sure that the boot up process has completed. Observe to see if LEDs are lit. The SuperMatrix unit has two. One of those LEDs is for the power and the other is to indicate that the unit is functioning properly. -
Page 11: Using Ir Devices
The SuperMatrix enable to connect any remote device to any source with IR For example a user can control any DVD,VCR or any cable box remotely. The SuperMatrix Has 16 port IR, each port is completely transparent and can send any IR from 20 to 100Khz 1.Connecting the IR emitter... -
Page 12: Connecting The Rs232 Devices
For example a computer sending video to remote TV can also send command to the TV to change channel, volume or input at the TV The SuperMatrix Have 16 port RS232, each port is completely transparent and can send any baud rate up to 115,00kbs DB9 serial (RS232) port. -
Page 13: Connecting The Super Matrix To The Hd Source
DVD, VCR, cable to the video input using VGA to RCA cable Connecting HDTV to the XT Receiver The SuperMatrix keeps the signals as they are transmitted from the source. If the source are VGA signals the end signal received will be also VGA. If the source signals transmitted are component signals they will be the same at the TV side. -
Page 14: Rj45 Preparation
The 16 RJ45 ports on the front of the SuperMatrix are output ports, providing connectivity to the XTPro or XT-AV receiver. This is a standard RJ45 connector, the SuperMatrix can be connect- ed via either Cat5, Cat5e or Cat6 cabling. -
Page 16: Chapter 3: Software Installation And Operation
Chapter 3: Software Installation & Operation Find the Installation CD that came with your SuperMatrix unit. This CD has the SmartControlPro software that you will need in order to control the unit using a computer. Insert the CD into your CD-ROM. On the CD you should see: SmartControl Pro Installer.exe... -
Page 17: The Matrix Panel
Chapter 3: Software Installation & Operation Inputs/Outputs: Enter the number of Inputs/Outputs your SuperMatrix has. For now we will assume that there are 16 inputs and 16 outputs. Com Port: Select the appropriate com port that your computer is using to access the router. -
Page 18: The Button Panel
Chapter 3: Software Installation & Operation The Main Routing Window enables you to control the router(s) connections by means of the matrix panel, the button panel, or with pre-recorded routes called macros. Matrix Panel: This is probably the simplest way to route the connections. Simply click on the cross point itself. -
Page 19: Macros
Chapter 3: Software Installation & Operation Macros: This section of the window is used to save and play back macros. Macros store a set sequence of routes. To record a macro: Click on the Record button (last button shown above). A blinking “recording” message below this button will be displayed to indicate that all routes are being recorded. -
Page 20: Controlling With Ir
You have the option of controlling the matrix via Remote Control. The PLAZOOM remote is used to control the matrix. The SM-EYE must be connected to the SuperMatrix ( this is an optional connector not always available in all boxes) in order to interface the remote control with the matrix. The way the remote control the matrix is as follows: Xx<enter>yy<enter>... -
Page 21: Controlling The Smtcp
Frame. Since PC’s only come with RS232 ports, a small converter is required to convert the RS232 signals to RS422. If you purchased any of the SmartAVI software options you will have received a suitable con- verter and cable. Operation Connect to SMTCP by typing http://192.168.2.1 in the address field of your browser, then click... - Page 22 RS232, using a db9 cable male to male. Using Smartavi software Connect the SMTCP to the RS232, run smartavi Ip changer utility Connect the SMTCP box to your PC’s COM port with the Serial RS-232 cable.
-
Page 23: Chapter 4: Technical Information
Chapter 4: Technical Information MATRIX SPECIFICATIONS Video Bandwidth 400 MHz Input Signal Level 1 Volt pk-pk into 75R Output Impedance 100 Ohms Input Impedance 75 Ohms Connector 16 x HD15 socket female Format VGA/SVGA/XGA/RGBHV/RGsB/ CVBS/YC/YUV/RGBS Syncs TTL5VDC Bandwidth Horizontal Sync up to 85KHz RS-232 16 x RS232 DB9 Female, TX, RX, GND Infrared... - Page 24 Chapter 4: Technical Information XTPRO SPECIFICATIONS XTAV SPECIFICATIONS Receiver with dual monitors, Audio and IR/ Receiver with Video and Audio support RS-232 support VGA Data VGA Data Format RGBHV, RGsB, YUV, Y/C, CVBS Format RGBHV, RGsB, YUV, Y/C, CVBS Up to 1900 x 1200 Resolution VGA, SVGA, XGA, SXGA Up to 1900 x 1200...
-
Page 25: Chapter 5: Communications Protocol
Smartcontrol Pro is based on RS232 queries with CRC protocol, any software that can send hex or ascii code can control the SuperMatrix. Each box is called a frame and have a special number sending Audio/Video from any source to any remote. -
Page 26: Chapter 5: Appendices
Customer is responsible for maintaining proof of date of purchase. 2. SmartAVI limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. - Page 27 SmartAVI, Inc. 2840 N. Naomi Ave. Burbank, CA 91504 Tel (818) 565-0011 Fax (818) 565-0020 Email: info@smartavi.com m_supermatrix-121808...
