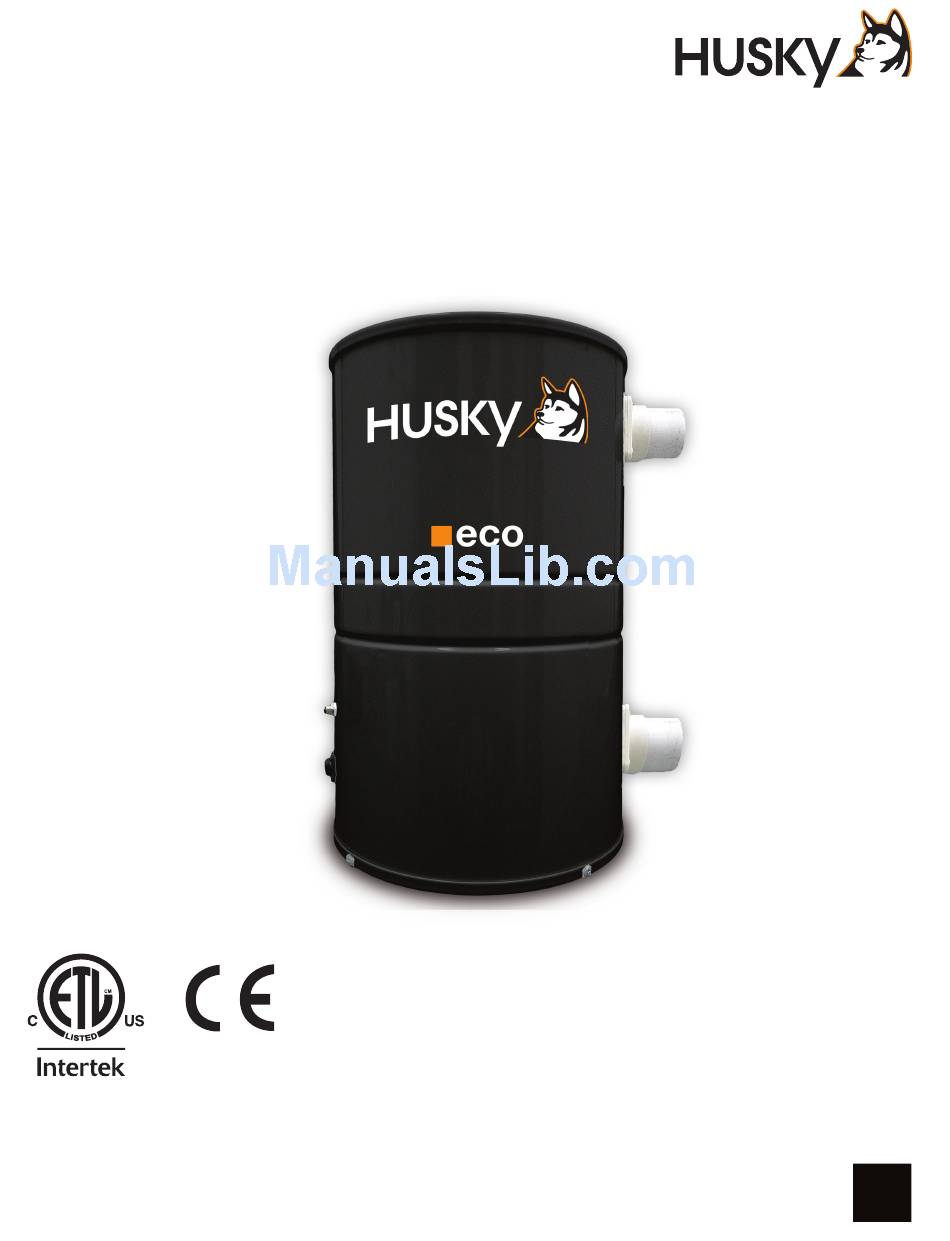

USER MANUAL Central Vacuum System THIS MANUAL APPLIES TO HUSKY ECO & COMPACT 2000868 Conforms to: UL Std. 1017 Certifi ed to: CAN/CSA Std. C22.2 No. 243-10 Made in Canada DOC-531_EN REV02...
TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 2. GENERAL GUIDELINES & REFERENCE ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� GROUNDING REQUIREMENTS ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� ELECTRICAL REQUIREMENTS ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ GENERAL GUIDELINES TO BE OBSERVED AT ALL TIMES 3. MODEL ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4. INSTALLATION ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� POWER UNIT �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5. LOW VOLTAGE WIRE CONNECTION ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������...
1. IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING YOUR CENTRAL VACUUM SYSTEM When using an electrical appliance, basic precautions should always be followed. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: • Unplug and disconnect the power unit from the electrical outlet before servicing or maintenance. •...
ELECTRICAL REQUIREMENTS In order for the warranty to be valid, only a Husky authorized service 8� The following model is to be used on a nominal circuit of 15 A at 110-120 Volts A.C. and 60 Hz: personnel may carry out the necessary repairs or maintenance on ECO-150I-NA-H.
3. MODEL NOTE APPLICABLE TO ALL POWER UNITS: in order to avoid overheating, we » recommend 12 in / 30 cm clearance all around the power unit� Air intake Mandatory disposable ltration bag Filtration bag support pad Internal control module Air outlet Fig.
FILTRE-189 suction loss� MOTOR All Husky systems have a mini breaker (power cut-o ) directly connected to the module which IMPORTANT protects the motor against an overload and prevents overheating. This appliance MUST always be used with a disposable fi ltration bag; the bag is the HOSE HANDLE only fi ltration system of the unit.
8. TROUBLESHOOTING Failure of the power unit could be caused by: • Inadequate power level (voltage / amperage) (ensure that power level complies with the power unit’s electrical requirements); • Malfunction of the motor or control module. Simple checks can often help you nd out why your power unit is inoperative. We invite you to verify the following before calling a service technician. ITUATION ERIFICATION NO POWER...
