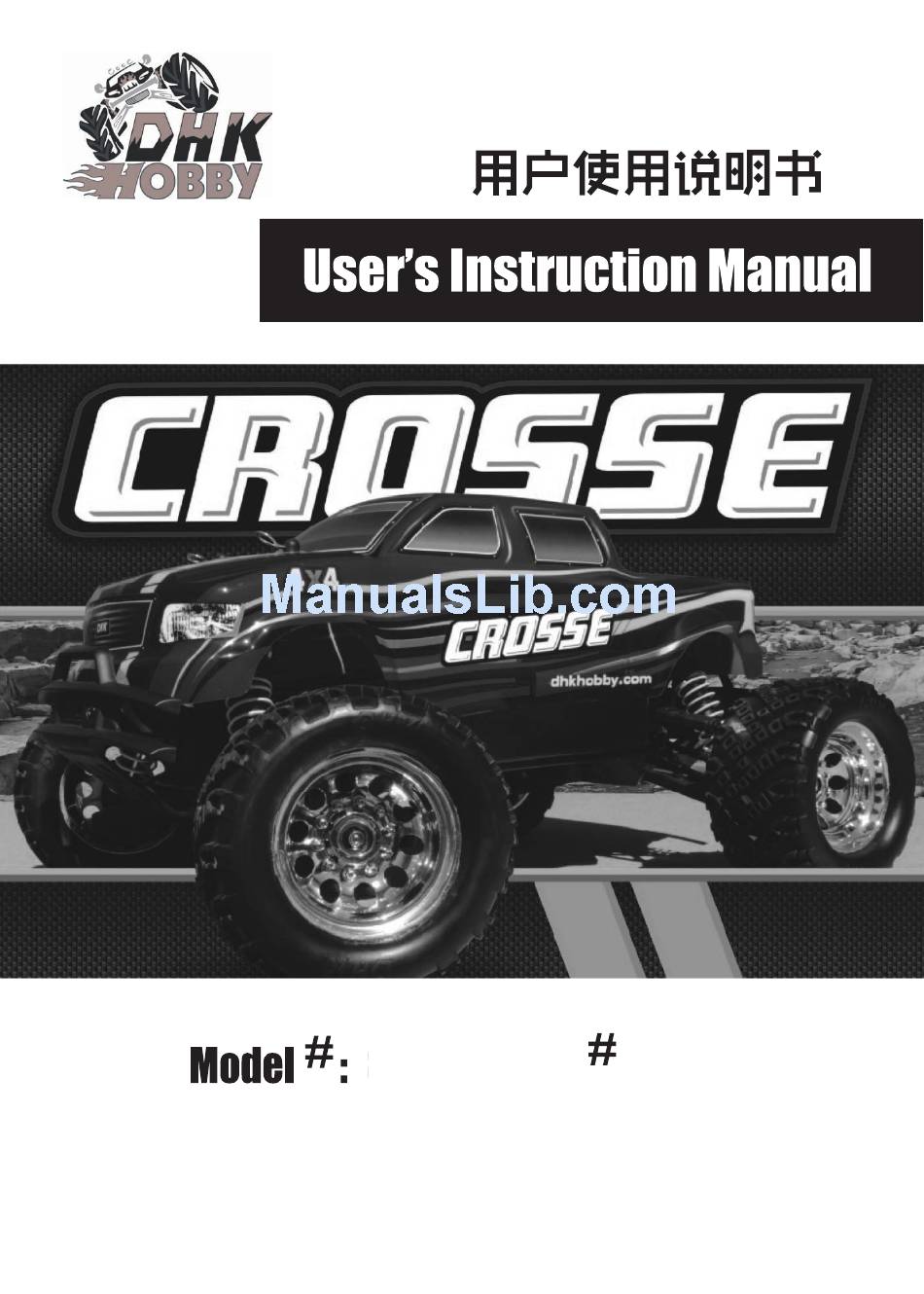

- Page 1 8136 Model :8137 1:10 Scale 4WD Monster Truck (Brushed & Brushless Versions)
- Page 2 Thank you for choosing DHK’s R/C model! This model is designed in thorough research and assembled with utmost craftsmanship. This high performance 1:10 scale 4WD monster truck can run very fast. It is easy to drive and it uses quality parts to achieve its best performance. With proper and regular maintenance, you will enjoy a lot of fun and joy when you drive this R/C kit.
- Page 3 Brushed Truck Model Specifications Length: 455mm(17.9”) (incl. F/R bumpers) Width: 366mm(14.4”) Height: 225mm(8.8”) (incl. body shell) Wheelbase: 290mm(11.4”) Front track/rear track: 293mm/298mm(11.5”/11.7”) Tire size: Ф122*68mm(Ф4.8”/2.7”) Wheel size: Ф72*48mm(Ф2.8”/1.9”) Ground clearance: 74mm(2.9”) Gear ratio: 10.97:1 Steering servo: 6kg Brushless Truck Model Specifications Length: 455mm(17.9”) (incl.
- Page 4 following Skipping Needles Matrix for detail. This matrix provides clear information for operation. Skipping Needles Matrix ① ② ③ ④ ⑤ ⑥ Needles placement and corresponding functions Needles Functions 1, 2 Forward, brake, reverse Forward, brake, no reverse 2, 3 Lipo battery 4, 5 NiMh battery...
- Page 5 Description Part No. Part No. 8381-608 Shaft (2 pcs) 8381-102 Diff outdrive/pins (Ф2*10mm) 8136-6Z0 Assembly of steering linkage (2 pcs) 8381-103 Pins(Ф2*10mm) (16 pcs) 8381-104 Flathead screw-coarse 8136-6Z1 Steering linkage (2 pcs) thread(KB2.6*10mm) (16 pcs) 8381-6Z2 Plastic rod end (8 pcs)
-
Page 6: Optional Parts
The following parts are suitable for cars Description Part No. only where there are √ 8136-002 Upper deck mount 8136 8137 8136-003 Central drive shaft-F √ 8133-100 Assembly of diff gear box 8136-004 Tire complete (chrome wheels) (2 pcs) √... - Page 13 8381-117 Ball bearing(Ф5*Ф11* 8381-119B head screw-coarse 8381-116 Pinion gear outdrive/ 8381-118 Diff gear case cover-F/R 4mm) (2 pcs) thread(BB3*16mm) (16 pcs) pins(Ф2*8mm) 8136-200 Assembly of reduction 8136-201 Reduction connecting 8136-202 E-type clamping spring 8136-203 Reduction mounting gearbox axle/pins (Ф2*10mm) (4 pcs)
- Page 14 8136-302 Shock spring (4 pcs) 8381-305 Shock ball (8 pcs) 8381-309 Shock shaft (4 pcs) 8381-306 M3 nylon nut (8 pcs) 8381-50L Assembly of upper 8381-50R Assembly of upper 8381-501 Upper sus.arm ball 8381-502 Upper sus.arm/rod (4 pcs) sus.arm-Left sus.arm-Right end (2 sets) 8381-503 Upper sus.arm linkage...
- Page 15 8381-703 B head screw-coarse 8381-706 Lower sus.arm-front 8381-707 Drive shaft set/revolving 8381-710 Ball bearing(Ф6*Ф12* thread(BB3*10mm) (16 pcs) (2 pcs) shaft (2 sets) 4mm) (2 pcs) 8381-719 Upper sus.arm shaft 8381-714 C-hub (2 pcs) 8381-717 Shock tower (2 pcs) 8381-718 Pivot ball mount (4 pcs) (4 pcs) 8381-721 Lower sus.arm plate- 8381-723 C-hub screw bushing...
- Page 16 8381-9Z1 Steering tie rod (2 pcs) 8136-002 Upper deck mount 8136-001 Chassis 8136-003 Central drive shaft-F 8136-004 Tire complete (chrome 8136-005 Tire with foam 8136-006 Chrome wheels (2 pcs) 8136-010 Chassis cover wheels) (2 pcs) (unglued) (2 pcs) 8331-003 Body spacer (Ф18* 8381-009 Pin-B(dia 1.2mm)
- Page 17 8131-9M2 Motor gear-18T/ 8133-101 Diff set (large)/pinion gear-11T (small) pinion gear Lock nut(M3*3) 8136-008 Clear truck body (PVC) 8136-007 Printed truck body (PVC) H126 55A Brushed ESC H112 550 Brushed motor with body decals and window cutout H125 7-cell(8.4V) SC 1800mAh...
- Page 18 Optional parts 8381-40L Assembly of anti-roll 8381-40R Assembly of anti-roll 8136-011 Wheelie bar assembly 8381-400 Anti-roll bar assembly bar linkage-Left bar linkage-Right 8381-401 Anti-roll bar rod end 8381-402 Anti-roll bar linkage 8381-403 Anti-roll bar pivot ball- 8381-404 Set screws (M3*3mm)
- Page 20 Parts Diagrams Receiver Functions Frequency range : 2.4GHz 2.4GHz modulation : AFHDS Sensitivity : -100dbm Working voltage : DC4.8-6.0V Working current Size : 5.7*26*15.2mm Weight : 11.2g...
-
Page 21: Parts Diagrams
Parts Diagrams... - Page 22 LCD Functions and Operations Key Operations Display Interface BATT: battery status, function reset settings MOD: Setting up mode and naming...
- Page 25 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
