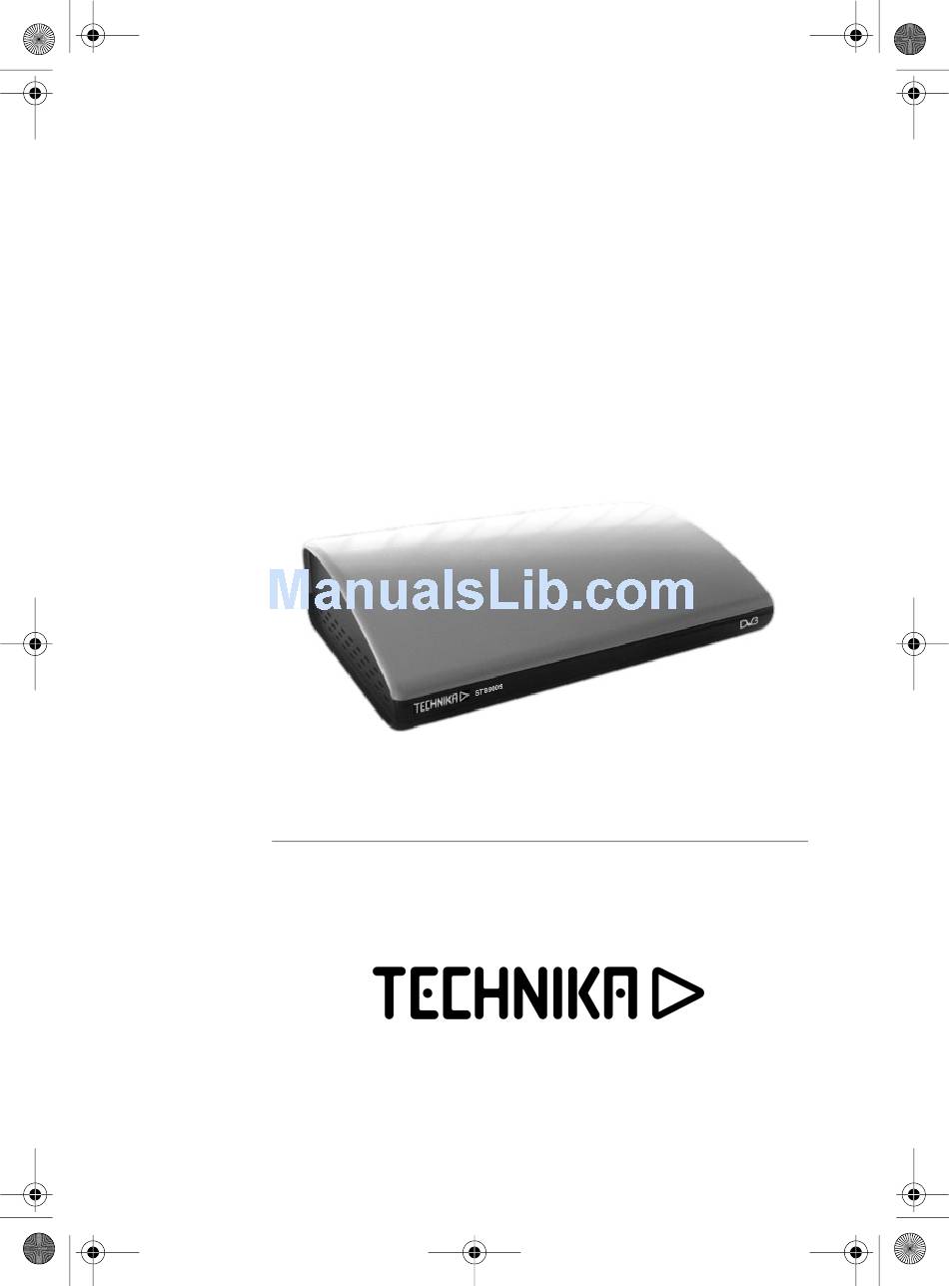

Page 1: Digital Terrestrial Receiver
Technika STB 905.book Seite 1 Mittwoch, 27. September 2006 8:21 08 Digital Terrestrial Receiver STB 9005 Operating Instructions... -
Page 2: Table Of Contents
Technika STB 905.book Seite 2 Mittwoch, 27. September 2006 8:21 08 Tabel of Contents 1. Control elements and functional components ..3 2. Your DVB-T receiver introduces itself ....6 3. -
Page 3: Control Elements And Functional Components
Technika STB 905.book Seite 3 Mittwoch, 27. September 2006 8:21 08 Operation 1. Control elements and functional components Front view of the receiver IR sensor with LED display Green: device is switched on Red: device in standby mode No colour: device is not connected to the mains supply... - Page 4 Technika STB 905.book Seite 4 Mittwoch, 27. September 2006 8:21 08 STB 9005 Remote control 4-13 17-20 30-33 On / Off Mute mute the sound, pressing again switches the sound back TV/radio button open the channel list...
- Page 5 Technika STB 905.book Seite 5 Mittwoch, 27. September 2006 8:21 08 Operation 4-13 Numerical keys - direct channel selection via the individual buttons - edit timer settings 14, 21 Channel buttons Ch+ / Ch- select next / previous channel 15, 22 Volume buttons Vol+ / Vol-...
-
Page 6: Your Dvb-T Receiver Introduces Itself
Technika STB 905.book Seite 6 Mittwoch, 27. September 2006 8:21 08 STB 9005 2. Your DVB-T receiver introduces itself Welcome! With your new digital receiver the whole world of digital television is open to you - and in top quality! These Operating Instructions help you to optimally use the extensive functions and options of your new digital receiver. -
Page 7: Safety Warnings
Technika STB 905.book Seite 7 Mittwoch, 27. September 2006 8:21 08 Operation 4. Safety warnings Basic notes Intended use This device serves to receive digital channels via an antenna. The replay is effected via a TV connected to the receiver. - Page 8 Technika STB 905.book Seite 8 Mittwoch, 27. September 2006 8:21 08 STB 9005 Danger caused by electricity In the interior of the device there are hazardous voltages. Never open the housing or insert objects through the ventilation openings. The device must not be exposed to dripping or splashing water.
- Page 9 Technika STB 905.book Seite 9 Mittwoch, 27. September 2006 8:21 08 Operation Have repairs to on your receiver carried out by qualified skilled personnel only. The manufacturer accepts no liability for accidents to the user if the device is opened. Incorrect wiring of the connections can result in failures or malfunctions on the device.
- Page 10 Technika STB 905.book Seite 10 Mittwoch, 27. September 2006 8:21 08 STB 9005 Never try to reactivate a used battery by heat, charging, or by other means. Miscellaneous notes Only switch the receiver on after the connections with the antenna and the TV set have been established.
-
Page 11: Connecting The Receiver
Technika STB 905.book Seite 11 Mittwoch, 27. September 2006 8:21 08 Operation 5. Connecting the receiver Inserting the battery into the remote control The battery (type CR2025 / 3 V) is already inserted in the remote control. It is covered by an insulating plastic separator to avoid premature discharge of the battery. - Page 12 Technika STB 905.book Seite 12 Mittwoch, 27. September 2006 8:21 08 STB 9005 Connection to a Television Caution! Do not use the decoder input included on some TV sets. For this, read the Operating Instructions of your TV set. Connect the receiver and TV set by means of the SCART cable.
- Page 13 Technika STB 905.book Seite 13 Mittwoch, 27. September 2006 8:21 08 Operation Connection diagram Antenna Mains Adaptor Stereo Connection to a stereo Connect the AUDIO OUT L and R output sockets to the corresponding input sockets of your stereo using a cinch cable (not included).
-
Page 14: Commissioning
Technika STB 905.book Seite 14 Mittwoch, 27. September 2006 8:21 08 STB 9005 Connecting the power cable Caution! Only connect the device to a power outlet that is installed according to regulations. Only switch the device on after the connections with the antenna and the SCART cable have been established. - Page 15 Technika STB 905.book Seite 15 Mittwoch, 27. September 2006 8:21 08 Operation 1. Select the screen format of your TV using the Arrow buttons and press the OK button. 2. Press OK to start the automatic search. NOTE: If you do not press the OK button, the search is started automatically after a few seconds.
-
Page 16: Operation
Technika STB 905.book Seite 16 Mittwoch, 27. September 2006 8:21 08 STB 9005 7. Operation Changing channel You can change the channel in different ways: By pressing the Ch + or Ch buttons. By pressing the Swap button you skip between the two channels last viewed. -
Page 17: Showing The Help Text
Technika STB 905.book Seite 17 Mittwoch, 27. September 2006 8:21 08 Operation 1. Press the INFO button to call up the information banner without changing the channel. The info banner displays the following information: storage space number, channel, mode and time,... -
Page 18: Using The Channel List
Technika STB 905.book Seite 18 Mittwoch, 27. September 2006 8:21 08 STB 9005 Using the channel list Selecting a channel 1. Press the TV/Radio button or the OK button to call the channel list. 2. By means of the Arrow buttons you can navigate in the... -
Page 19: Blocking A Channel (Parental Lock)
Technika STB 905.book Seite 19 Mittwoch, 27. September 2006 8:21 08 Operation 2. Use the Arrow buttons and the OK button to select the desired function. 3. When you change a channel name, use the Numerical buttons of the remote control to change the channel name. -
Page 20: Adding A Channel To Your Favourites
Technika STB 905.book Seite 20 Mittwoch, 27. September 2006 8:21 08 STB 9005 4. Press Exit to close the channel list. Now the channel can only be selected after entering the four digit lock code. Adding a channel to your favourites Favourites are usually channels that you frequently wish to watch. - Page 21 Technika STB 905.book Seite 21 Mittwoch, 27. September 2006 8:21 08 Operation 3. Highlight the channel that you want to favour in the left window half. 4. Highlight the desired list using the Arrow button press OK. Behind the channel selected the number of the selected list is displayed.
-
Page 22: Extended Installation
Technika STB 905.book Seite 22 Mittwoch, 27. September 2006 8:21 08 STB 9005 4. Press OK. 5. Where required, repeat the procedure by selecting another favourites list and pressing OK again. 6. Press Exit to close the favourite list. Extended installation In the installation menu you can choose between Automatic Search, Manual Search and First Time Installation. - Page 23 Technika STB 905.book Seite 23 Mittwoch, 27. September 2006 8:21 08 Operation Automatic search For the Automatic Search the search is started and your current channel list is replaced when you confirm the channel request with Yes. Manual search In the case of the Manual Search you can define the channel on which the search is to be carried out.
-
Page 24: Epg
Technika STB 905.book Seite 24 Mittwoch, 27. September 2006 8:21 08 STB 9005 1. Press the EPG button to open the electronic programme guide. 2. Use the Arrow buttons to navigate in the EPG. The symbol of the currently selected channel is shown at the top right. -
Page 25: Timer
Technika STB 905.book Seite 25 Mittwoch, 27. September 2006 8:21 08 Operation Timer By using the timer you can switch your receiver on and off at certain times, for instance to enable recording with a videocassette recorder. The device then automatically switches on from standby. - Page 26 Technika STB 905.book Seite 26 Mittwoch, 27. September 2006 8:21 08 STB 9005 Timer editing 1. Press the MENU button. The main menu is opened. 2. Select the entry Timers and press the OK button. In the upper corner the symbol of the currently set channel is shown;...
-
Page 27: Selecting The Language
Technika STB 905.book Seite 27 Mittwoch, 27. September 2006 8:21 08 Operation Timer editing 1. Select the desired programme and press OK. A further window with detail information on the timer programme selected is opened. 2. Highlight the desired entry by using the Arrow button... -
Page 28: Use Text/Mheg
Technika STB 905.book Seite 28 Mittwoch, 27. September 2006 8:21 08 STB 9005 2. Select Audio menu and press the OK button. 3. Highlight the desired entry using the Arrow button press the OK button. NOTE: The change is only temporary. As soon as you change the channel, the unit reverts to the language set in the configuration menu. -
Page 29: Configuration
Technika STB 905.book Seite 29 Mittwoch, 27. September 2006 8:21 08 Operation 2. In order to be able to watch TV again, press the TV/radio button again. Configuration Via the configuration window you carry out settings with regard to the device and channels. -
Page 30: Software Upgrade
Technika STB 905.book Seite 30 Mittwoch, 27. September 2006 8:21 08 STB 9005 Subtitle Language Select a language for the captions. TV Type Select your TV type: 4:3 or 16:9. WideScreen Mode Set your preferred mode for movies or programmes broadcast in 16:9. -
Page 31: Parental Settings
Technika STB 905.book Seite 31 Mittwoch, 27. September 2006 8:21 08 Operation At the end of the search an appropriate message is displayed. Parental Settings 1. Open the configuration window (press OPT button) and highlight Parental Settings. 2. Press the OK button. -
Page 32: Diagnostics
Technika STB 905.book Seite 32 Mittwoch, 27. September 2006 8:21 08 STB 9005 8. Diagnostics Caution! Never try to repair the defective - or potentially defective - device yourself. All electronic devices may exhibit problems. Nevertheless this does not always have to be a sign of a malfunction. Often the causes are defective supply lines, plug connections, or connection faults. - Page 33 Technika STB 905.book Seite 33 Mittwoch, 27. September 2006 8:21 08 Operation Sound available, no or bad Antenna too small Use bigger antenna picture Antenna badly adjusted Readjust antenna Channel is broadcast on a Carry out automatic scan different frequency...
-
Page 34: Technical Data
Technika STB 905.book Seite 34 Mittwoch, 27. September 2006 8:21 08 STB 9005 9. Technical data Basics DVB terrestrial Free-To-Air receiver compliant to EN 300 744 MHEG5 and LCN support UHF frequency range support Video and Audio out via 2x SCART... - Page 35 Technika STB 905.book Seite 35 Mittwoch, 27. September 2006 8:21 08 Operation RF input - connector IEC60169 2 female - termination 75 Ohms - Return loss: 6 dB (75 Ohms) at a minimum Loop-Through of RF signals Power Supply Power supply 230VAC/50Hz to 12VDC (AC Adaptor)
