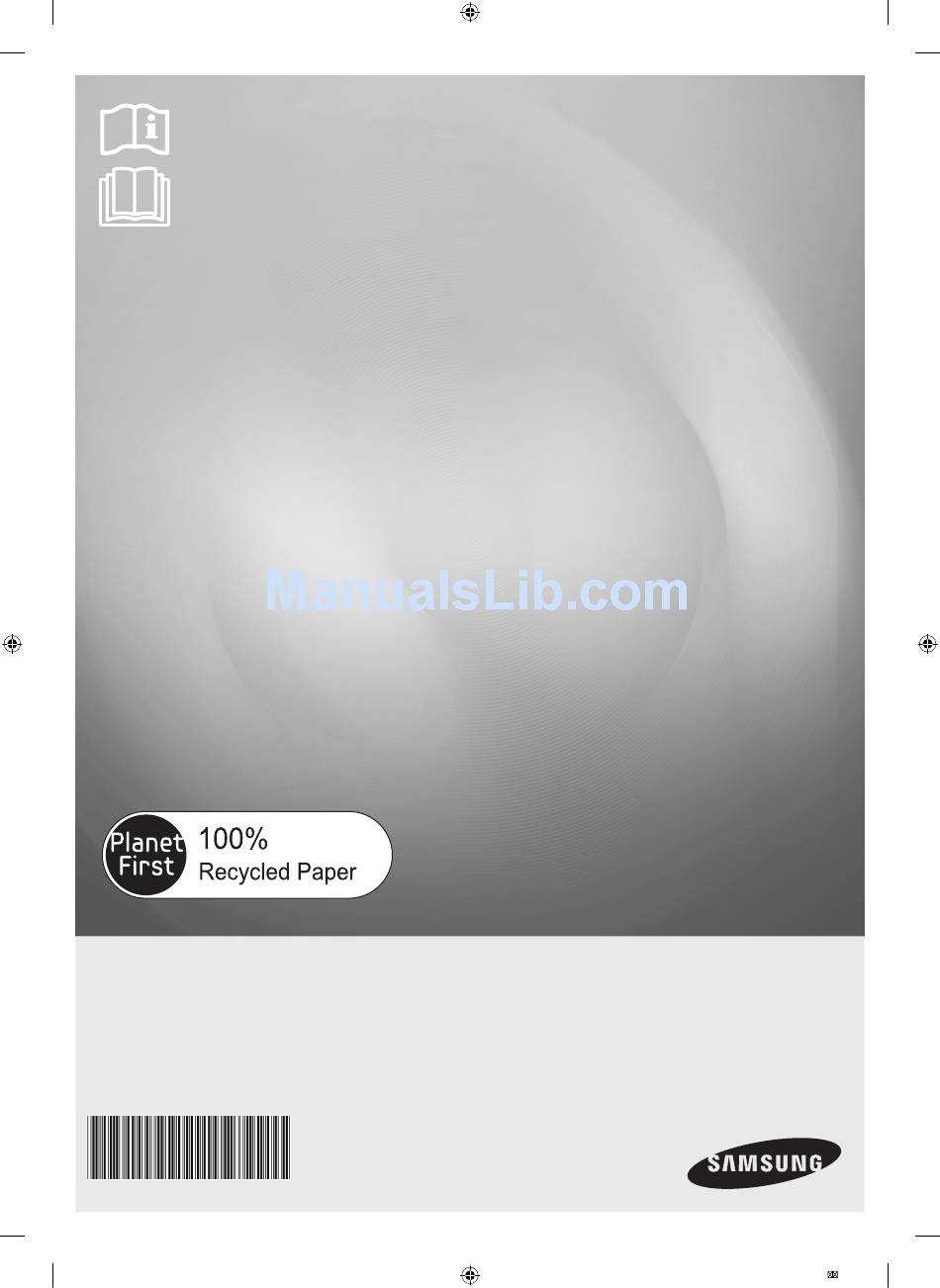

WA75G9T
Washing Machine
user manual
This manual is made with 100% recycled paper.
imagine
the possibilities
Thank you for purchasing a Samsung
product.
To receive a more complete service, please
register your product at
www.samsung.com/register
DC68-02961M-02
WA75G9TIP-02961M-01_EN.indd 1
2012-11-16
6:04:33
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Samsung WA75G9T
Summary of Contents for Samsung WA75G9T
-
Page 1: Washing Machine
WA75G9T Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/register DC68-02961M-02 WA75G9TIP-02961M-01_EN.indd 1 2012-11-16 6:04:33... - Page 2 features • Water Saving Program Designed to address concerns on water consumption. Less water is used per wash, while continuing to deliver a clean and effective washing performance. It is certified from WELS (Water Efficiency Labelling and Standards) scheme in Australia. • Last Settings Feature This option loads the previous course settings.
-
Page 3: Safety Information
It’s your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer. Samsung is not liable for damages resulting from improper use. ImporTAnT sAfeTy symbols And precAuTIons... - Page 4 safety information To reduce the risk of fire or explosion: CAUTION • Do not wash items that have been washed, soaked, or treated with gasoline, dry cleaning solvents, or other flammable or explosive substances. They give off vapors that could ignite or explode. Rinse by hand any material that has been exposed to cleaning solvent or other flammable liquids or solids before putting in your washer.
- Page 5 The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
-
Page 6: Table Of Contents
contents seTTING UP yOUR WAsheR Description of part How to wash automatically depends on the laundry Control Panel mANUAl fUNCTIONs Manual functions INsTAllATION & mAINTeNANCe Environment Levelling Connecting the water supply hose Assembling the rat protection panel How to connect the drain hose Adding detergent Adding fabric softener Water supply connector filter... - Page 7 setting up your washer descrIpTIon of pArT The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. Be sure to keep the lid closed Water supply during washing and spinning. hose (Cold) Drain hose Water supply hose (hot)
- Page 8 setting up your washer CHECKIng bEFOrE WaSHIng anD CarIng FOr garMEnTS Must follow the checkpoints in order to avoid machine problems or damages on garments. • If the below problems are caused by customer’s faults, separate service fee will be charged. Checkpoints before starting Washing Check if the clothes are bleaching or not. • Add liquid detergent to a white towel and the garment where you can’t notice well. Then, rub together strongly. Check if the color transferred to the towel. • Be careful for scarves and imported clothes since they are easily discoloring. • Check for stains or partial dirt. • If stains are found, use the towel wet with detergents to rub on in a single direction.
-
Page 9: Caring For Clothes Before Washing
cArInG for cloThes before WAshInG Take out personal belongings from pockets. • Caution, Check the pockets! Hairpins and coins cause damages to clothes and washing machine. They make noise and problems to the machine. Must check the pocket. If pants zippers are open while washing, the spin basket may be damaged. The zipper should be closed and fixed with a string before washing. • Metal on the clothing may cause damage to the clothes and the tub. -
Page 10: How To Wash Automatically Depends On The Laundry
setting up your washer hoW To WAsh AuTomATIcAlly depends on The lAundry before starting washing, check the following; • Connect the water supply hose to the water tap. Leave a tap open. Plug the power cord in. Make sure to lay down the drain hose. Washing for the first time Before washing clothes for the first time, you must run a complete cycle without clothes. To do this: 1. -
Page 11: Control Panel
conTrol pAnel For more details, see control panel of your washing machine. Press this button once to operate. POWeR bUTTON Press it again to turn the power off. Use to pause and restart the operation. sTART/PAUse To change the washing procedure during an operation, bUTTON press this button to stop, and again to restart after changing the procedure. - Page 12 setting up your washer Displays the remaining wash time. RemAINING TIme, DelAy sTART Displays the reserved delay start time. TIme, eRROR Displays the error state if a problem occurs in the washing machine so that DIsPlAy you can take action. Press this button to perform a soak wash.
-
Page 13: Fuzzy Program
fuZZy proGrAm Selects the best washing program automatically. 1. Press the Power button to “On”. 2. Press the start/Pause button. Water level is selected automatically. Washing rinsing, and spinning follow. If you want to pause, press the start/Pause button again. You can change the program when paused. -
Page 14: Super Clean Program
setting up your washer super cleAn proGrAm Use for cleaner washing. 1. Press the Power button to “On”. 2. Press the Program select button four times. 3. Press the start/Pause button and put the proper amount of detergent into tub. Water level is selected automatically. -
Page 15: Keeping The Tub Clean
KeepInG The Tub cleAn When using the machine under humid conditions for an extended time, various bacteria from the air may stick to the tub and form black dirt (fungi), causing damage to the human body. To keep the tub clean and hygienic at all times, it is recommended detergents to clean the tub regularly at least once every one to three months. -
Page 16: Manual Functions
manual functions Possible to select the function for each program. (Example) For a simple washing as the little dirt program : Power Select the little dirt program Wash Start/Pause Press the Power button. Press the Wash button. Press the start/Pause button. WAsh ONly Washing goes on for 1 time. When the Wash button is pressed during washing, the wash time can be changed to between 4 and 30 minutes in duration. -
Page 17: Installation & Maintenance
installation & maintenance The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model. envIronmenT leave some space Maintain at least 10cm between the washer and the wall. Place the washer on a sturdy flat surface. If the washer is placed on an uneven or weak surface, noise or vibration occurs. -
Page 18: Assembling The Rat Protection Panel
installation & maintenance ASSEMBLING THE RAT PROTECTION PANEL Tilt the washer a little and lift up the panel until it clicks as shown in the figure. 1. Insert the rat protection panel to the 2. If you have difficulty inserting the panel lift assembling hole on back side to the end. - Page 19 Adjusting the height of the washer (Optional) Make sure your washer is level by adjusting the leveling legs. Beware of catching your hands under the legs. 1. Pull the handles located at the right and left front of the washer and slide them off. 2.
-
Page 20: Adding Detergent
installation & maintenance AddInG deTerGenT 1. Open the detergent drawer and then add the powder detergent into the detergent compartment. 2. Add detergent evenly so that it doesn’t brim over the edge of the drawer. • Use a reasonable amount of detergent. If you use more detergent than the standard quantity or the water temperature is too low and the detergent does not dissolve in the water completely causing it... -
Page 21: Water Supply Connector Filter
WATer supply connecTor fIlTer 1. Pull out the filter and wash well. 2. Pull in the filter and connect the hose to the inlet water valve tightly. 3. Check if there is a leakage. Note to tighten up the connector. cleAnInG The fIlTer Clean the filter net often to keep the washer clean. -
Page 22: Cleaning The Pump Filter
installation & maintenance cleAnInG The pump fIlTer 1. Place a rag or towel under the wash filter to avoid wetting the floor, and rotate the filter counterclockwise and pull it out. 2. Remove any dirt from the filter. 3. Return the filter to its place by rotating the filter clockwise until it locks into position. cleAnInG The deTerGenT compArTmenT 1. -
Page 23: Troubleshooting
troubleshooting PrObLEM CHECK Washing machine won’t work • Is the water tap opened? • Is the washer plugged in? • Is the power cut off? • Is there enough water? • Water dose not drain Is the drain hose down?(No pump) •... - Page 24 washing machine won’t work? PROBLEM CHECK The power is cut off. Is the electric voltage normal? Is the washer plugged in? Plug in the electric cord. Water does not drain. Dose not Darin Is the drain hose down? Put the drain hose down. Is the drain hose folded? Unfold the drain hose.
-
Page 25: Specification
WA75G9T MAX. MASS OF WA75G9T 7.5 kg 74ℓ DRY CLOTH IN kg WASH 510 W 66ℓ POWER STANDARD CONSUMPTION WATER SPIN 300 W LEVEL 54ℓ DIMENSIONS(mm) W602XL670XH996(HIGH BASE) WEIGHT 44 kg 44ℓ 0.05~0.78 MPa WATER PRESSURE WATER USAGE 156ℓ... - Page 26 memo WA75G9TIP-02961M-01_EN.indd 26 2012-11-16 6:04:40...
- Page 27 memo WA75G9TIP-02961M-01_EN.indd 27 2012-11-16 6:04:40...
- Page 28 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT AUSTRALIA 1300 362 603 www.samsung.com Code No. : DC68-02961M-02_EN WA75G9TIP-02961M-01_EN.indd 28 2012-11-16 6:04:41...
