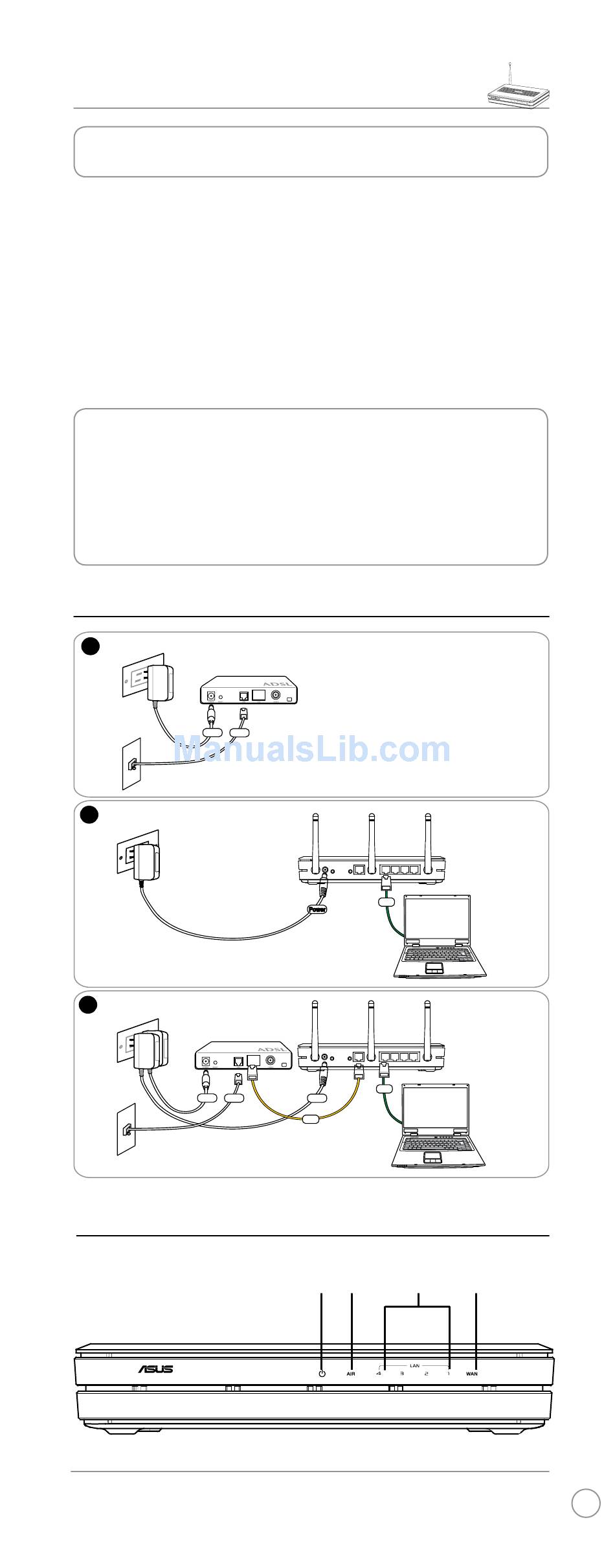

WL-500W Wireless Router Quick Start Guide

. Package contents

• WL-500W wireless router x 1
• Power adapter x 1
• Utility CD x 1
• RJ45 cable x 1
• Quick Start Guide x 1
2. Connecting ADSL modem
and wireless router

) Cable connection


Wall power outlet
Wall telephone outlet
2
Wall power outlet
3
Wall power outlet
Wall telephone outlet
2) Status indicators
WL-500W
Wireless multi-function router
Modem
Power
Phone
Power
Modem
Power
Phone
Power
WAN
PWR
ASUS Wireless Router
LAN
ASUS Wireless Router
LAN
AIR
LAN
WAN


Advertisement

Table of Contents
loading

Related Manuals for Asus wl-500w

Summary of Contents for Asus wl-500w

  • Page 1: Package Contents

    WL-500W Wireless Router Quick Start Guide . Package contents • WL-500W wireless router x 1 • Power adapter x 1 • Utility CD x 1 • RJ45 cable x 1 • Quick Start Guide x 1 2. Connecting ADSL modem...

  • Page 2: Wall Mount Option

    1. Look on the underside for the two mounting hooks. 2. Mark two upper holes in a flat surface. 3. Tighten two screws until only 1/4'' is showing. 4. Latch the hooks of the ASUS Wireless Router onto the screws. Note: Re-adjust the screws if you cannot latch the ASUS Wireless Router onto the screws or if it is too loose.

  • Page 3: Getting Started

    3) Setting IP address for wired or wireless client To access the WL-500W Wireless Router, you must have the correct TCP/IP settings on your wired or wireless clients. Set the IP addresses of the clients within the same subnet of WL- 500W.

  • Page 4: Configuring The Wireless Router

    • S u b n e t M a s k : 255.255.255.0 (same as WL-500W) • Gateway: 192.168.1.1 (IP address of WL-500W) • DNS: 192.168.1.1 (WL-500W), or assign a known DNS server in your network. 4) Configuring the wireless router F o l l o w t h e s t e p s b e l o w t o e n t e r t h e W e b configuration interface of WL-500W.

  • Page 5: Quick Setup

    WL-500W Wireless Router Quick Start Guide After logging in, you can see the ASUS Wireless Router home page. The homepage displays quick links to configure the main features of the wireless router. 5) Quick setup To start quick setup, click Next to enter the “Quick Setup”...
  • Page 6 WL-500W Wireless Router Quick Start Guide PPPoE user If you use PPPoE service, select ADSL connection that requires username and password. It is known as PPPoE. You need to input the username and password provided by your ISP. Click Next to continue.
  • Page 7 11111 as the Passphrase, the WEP Keys are generated automatically. 5. Click Save&Restart to restart the wireless router and activate the new settings. Note: We recommend using WL-100W wireless adapters to connect WL-500W so as to achieve high sped data transmission.
  • Page 8 One Touch Wizard utility supplied in WLAN Card support CD for wireless connection. Configuring WLAN card with Windows WZC service ® If you use non-ASUS wireless card, you can set up the wireless connection with Windows ® Wireless Zero Configuration (WZC) service.

  • Page 9: Fcc Warning Statement

    WL-500W Wireless Router Quick Start Guide FCC Warning Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 10: Safety Information

    WL-500W Wireless Router Quick Start Guide Safety Information To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Declaration of Conformity for R&TTE directive /5/EC Essential requirements –...
