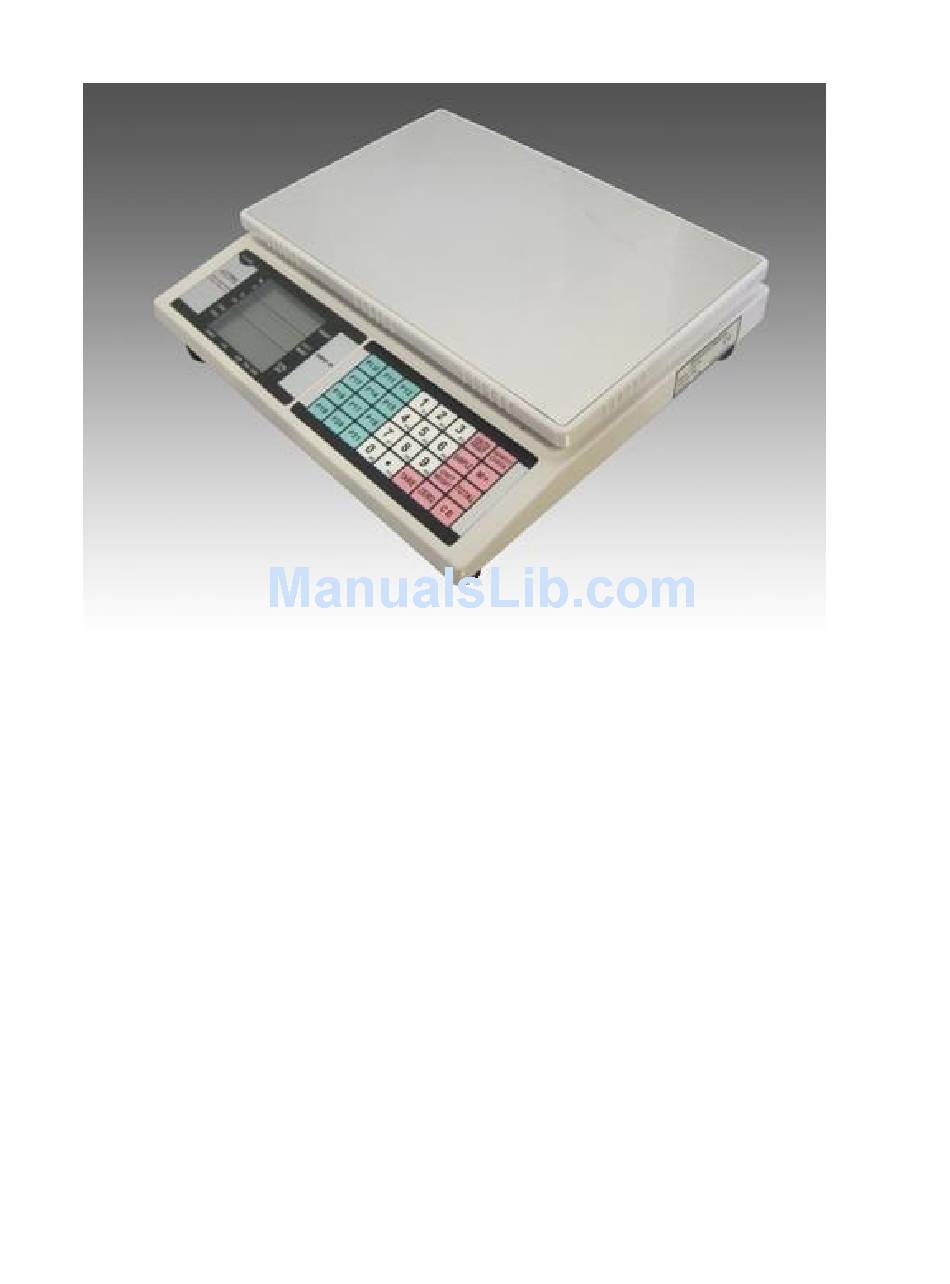

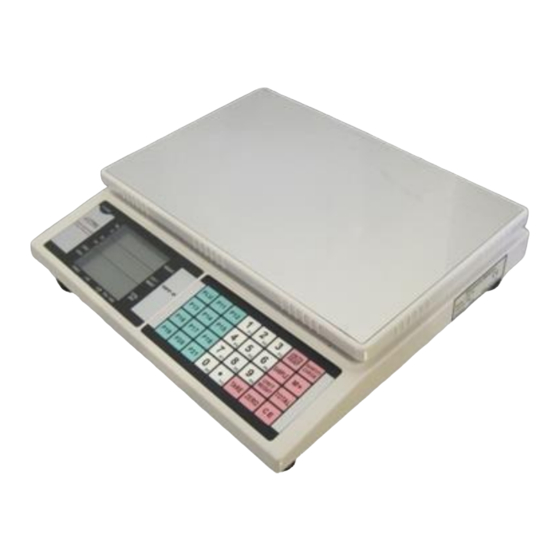

- Page 1 OPF-P Series User Manual...
- Page 2 Warnings • Avoid using the balance in any harsh environment. • Only trained professionals are allowed to do repair work. • Turn power off before connecting/disconnecting the power source. • Avoid overloading or dropping material onto the platform as that could damage the balance.
-
Page 3: Table Of Contents
OPF-P Series User Manual / Table of Contents Getting Started ..................4 Overview ....................... 4 Contents ......................5 Alarms ......................5 Display/Keys ....................5 Preparation ....................6 Calibration ....................7 Using Scale ................8 Basic Weighing ..................... 8 Zero ....................... 8 Units ...................... -
Page 4: Getting Started
OPF-P Series User Manual / Getting Started Getting Started Overview Thank you for using Optima scales for your important application. Here is the list of models this manual covers: Model # Max Weight (kilograms) Accuracy (grams) OPF-P3 OPF-P6 OPF-P15 15.0 OPF-P30 30.0... -
Page 5: Contents
OPF-P Series User Manual / Getting Started Contents • Scale main unit • Scale pan • User Manual • AC adapter Alarms • Overload • When the load on the platform is over the maximum capacity • Take the load off immediately! •... -
Page 6: Preparation
OPF-P Series User Manual / Getting Started • ZERO : Zero (in weighing mode); Used to decrease value (in setting mode) • CE : Cancel the set data (in weighing mode); Delete PLU value (in setting mode) • PLU : Used to enter PLU mode or setting PLU unit (in weighing mode); Exit key in PLU mode •... -
Page 7: Calibration
OPF-P Series User Manual / Getting Started Calibration After all the preparation procedure has been performed (remember the scale needs to warm up for 1 minute), follow the steps below for calibration. Auto-Calibration When the auto-calibration is ON, then the unit will automatically calibrate itself. -
Page 8: Using Scale
OPF-P Series User Manual / Using Scale Using Scale Basic Weighing After the scale has been properly calibrated, the scale is now ready for use: 1. If scale is not on, turn the scale on. 2. Make sure the display is showing 0 after initialization. If not, press the ZERO key to zero out the display. -
Page 9: Quantity Check Alarm
OPF-P Series User Manual / Using Scale Quantity Check Alarm 1. Press QUANTITY CHECK key to enter quantity check setting 2. Select ON or OFF by pressing ZERO key and press M+ to go to next function 3. If OFF is selected, press M+ and the system exits back to weighing mode else 4. -
Page 10: Accumulation Check
OPF-P Series User Manual / Using Scale Accumulation Check 1. In weighing mode, press TOTAL key to enter accumulation checking mode 2. Press the UNIT WEIGHT key to save and go back to normal weighing mode 3. Press CE key to clear the number of counts PLU Count 1. - Page 11 OPF-P Series User Manual / Using Scale • Zero Tracking Range • Values from 0 to 6 • Factory default is 5 • Enter the user setting mode, and press M+ until you see “ZTRC?”. • Press ZERO or TARE key to select the zero tracking value.
-
Page 12: Rs232 Communication Protocols
OPF-P Series User Manual / Using Scale • Communication Address • Selectable from 1 to 25 • Enter the user setting mode, and press M+ until you see “SCALE?”. • Press ZERO or TARE key to select the value • Press M+ key to confirm the revised value or press the UNIT WEIGHT key to cancel the changes. -
Page 13: More Info
OPF-P Series User Manual / More Info More Info Troubleshooting Q: The scale is not showing an accurate reading. A: Make sure the scale is placed on a firm and flat surface and that there are no external interference. Please revisit the “Preparation” section of this manual.
