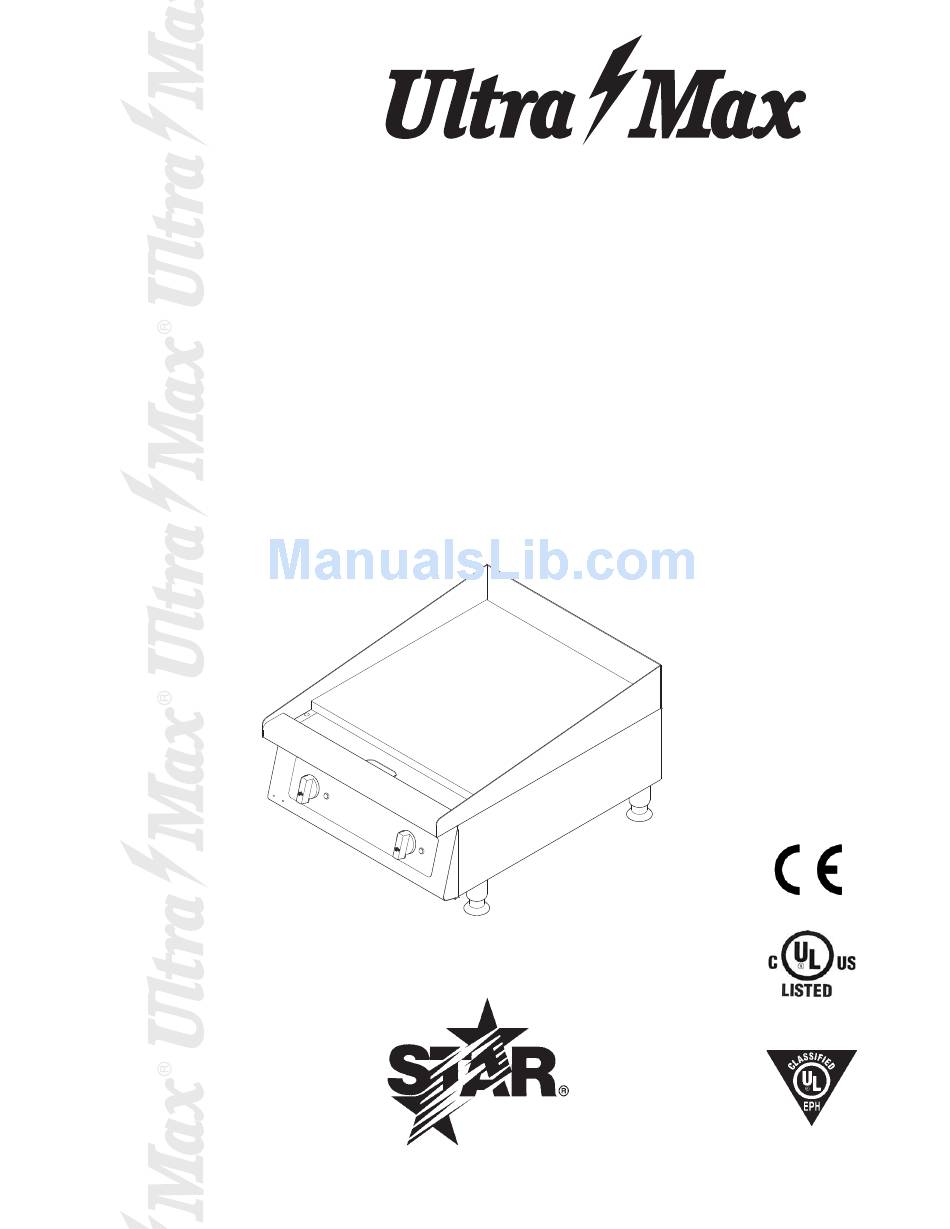

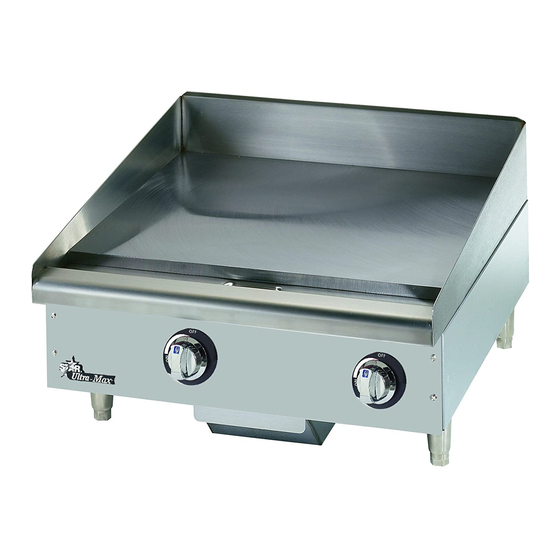

- Page 1 ® ELECTRIC GRIDDLES MODELS 724T, 736T, 748T, 760T, 772T CHROME MODELS 724TCHS, 736TCHS, 748TCHS, 760TCHS, 772TCHS Installation and Operation Instructions 2M-Z8514 Rev. E 7/17/08 724T MODELS 760T- & 772T- Not approved for Canada ANSI/NSF 4...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Installation
-phase power supplies by making line connections at the junction box(es) located at the rear of the unit. Models 724T-20/400V, 76T-20/400V & 748T-20/400V, should be wired for -phase power supply only. Two junction boxes are provided on the 760T & 772T for making line connections. - Page 4 SEASONING THE GRIDDLE HEATING SURFACE Before initial use, clean the griddle surface thoroughly with hot soap and water. See Griddle care on page 4 for further information. After the griddle has been thoroughly cleaned, it should be seasoned to prevent food from sticking. Before using and after each thorough scouring, season the griddle heating surface in the following manner.
- Page 5 GRIDDLE CARE (CHROME SURFACES) (Chrome surface griddles are marked with “CHS” at the end of the model number designation on the nameplate.) It takes very little time and effort to keep this Industrial Chrome griddle surface sparkling clean and performing at top efficiency. DO NOT allow grease to accumulate as it will carbonize and become difficult to remove.
- Page 6 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
- Page 7 TO CONVERT TO 3 PHASE MOVE WIRE #3 TO 3 PHASE THE 3RD OPEN TERMINAL FIELD WIRING CONNECTOR Z SHOWN. TERMINAL BLOCK 2M-Z8445 MODEL 724T AND 760T (1SIDE) SINGLE PHASE SUPPLY NOMINAL AMPS PER LINE 3 PH. GROUND WIRE 208V 240V 208V-3 PHASE 240V-3PHASE 1,3,5 13.05 KW...
- Page 8 CONTACTOR THERMOSTAT TERMINAL BLOCK 2M-Z8449 REV B 7-15-08 MODEL 724T 230V 3 PHASE 230/400 VOLT Y - 13.05 KW FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR AT LEAST 90°C (194°F). NOM. AMPS USE #10 AWG OR LARGER. DO NOT CONNECT TO A SYSTEM OPERATING AT MORE THAN 250 PER LINE 18.9...
- Page 9 FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR 760T 230/400 VOLT Y - 21.75 KW NOM. AMPS AT LEAST 90°C (194°F). USE #8 AWG OR LARGER. DO NOT CONNECT PER LINE TO A SYSTEM OPERATING AT MORE THAN 250 VOLTS TO GROUND 31.5 31.5 31.5...
- Page 10 15 13 NAMEPLATE SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. SK2122 REV. -- 02/21/2005 MODEL 724T, 736T, 748T, 760T, 772T...
-
Page 11: Parts List
PARTS LIST July 7, 2008, Rev. E 724T Ultra-Max Electric Griddles MODEL Number Part Number Number Description and Model Designation Unit G5-Z84 REAR PANEL 724T G5-82402 JUNCTION BOX ASSY. 724T G5-Z048 ELECTRICAL BOX 724T-20V G5-Z848 JUNCTION BOX COVER 724T G5-Z04... - Page 12 PARTS LIST July 7, 2008, Rev. E 736T Ultra-Max Electric Griddles MODEL Number Part Description and Model Designation Number Number Unit G5-Z842 REAR PANEL 76T G5-82402 JUNCTION BOX ASSY. 76T G5-Z048 ELECTRICAL BOX 76T-20V G5-Z848 JUNCTION BOX COVER 76T G5-Z04 ELECTRICAL BOX COVER 76T-20V 2E-Z8482...
- Page 13 PARTS LIST July 7, 2008, Rev. E 748T Ultra-Max Electric Griddles MODEL Number Part Description and Model Designation Number Number Unit G5-Z84 REAR PANEL 748T G5-82402 JUNCTION BOX ASSY. 748T G5-Z048 ELECTRICAL BOX 748T-20V G5-Z848 JUNCTION BOX COVER 748T G5-Z04 ELECTRICAL BOX COVER 748T-20V 2E-Z8482...
- Page 14 PARTS LIST July 7, 2008, Rev. E 760T Ultra-Max Electric Griddles MODEL Number Part Description and Model Designation Number Number Unit G5-Z844 REAR PANEL 760T G5-82402 JUNCTION BOX ASSY. 760T G5-Z848 JUNCTION BOX COVER 760T 2E-Z8482 TERMINAL BLOCK 760T-208/240V 2E-Z565 TERMINAL BLOCK 5 POS #4 760T-20V 2E-Z842...
- Page 15 PARTS LIST July 7, 2008, Rev. E 772T Ultra-Max Electric Griddles MODEL Number Part Description and Model Designation Number Number Unit G5-Z845 REAR PANEL 772T G5-82402 JUNCTION BOX ASSY. 772T G5-Z848 JUNCTION BOX COVER 772T 2E-Z8482 TERMINAL BLOCK 772T 2E-Z842 GROUND LUG 772T G5-87208...
- Page 16 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
