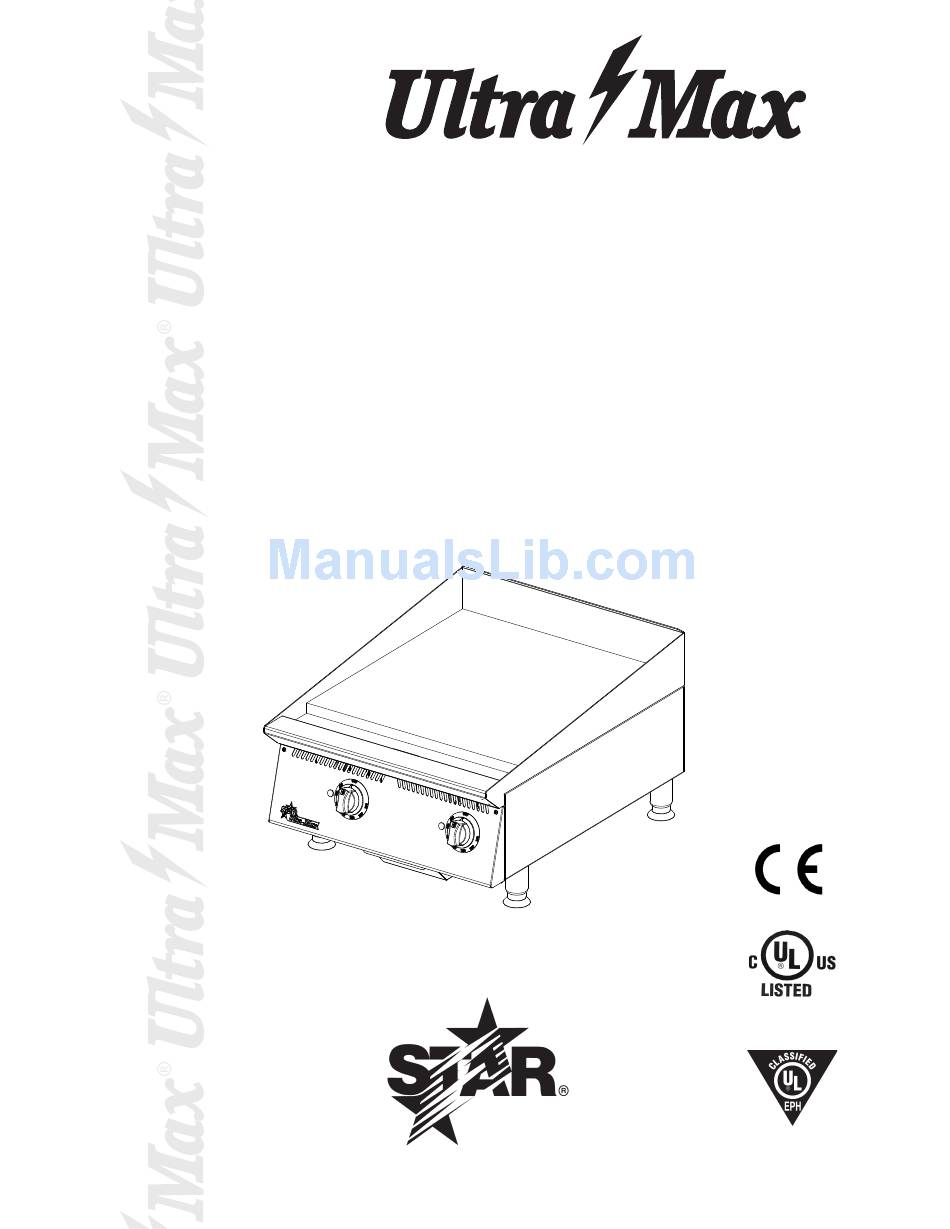

- Page 1 ® ELECTRIC GRIDDLES MODELS 724TA, 736TA, 748TA, 760TA, 772TA CHROME MODELS 724TCHSA, 736TCHSA, 748TCHSA, 760TCHSA, 772TCHSA Installation and Operation Instructions 2M-Z16214 Rev. A 11/14/14 IL2924 724TA MODELS 760TA- & 772TA- Not approved for Canada ANSI/NSF 4...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: General Information
GENERAL INFORMATION This equipment is designed and sold for commercial use only by personnel trained and experienced CAUTION in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. For equipment to be used by the general public, please contact the factory. -
Page 4: Temperature Control
GENERAL OPERATING PROCEDURES continued SEASONING THE GRIDDLE HEATING SURFACE Before initial use, clean the griddle surface thoroughly with hot soap and water. See Griddle care on page 4 for further information. After the griddle has been thoroughly cleaned, it should be seasoned to prevent food from sticking. -
Page 5: Grease Drawer
CLEANING GRIDDLE CARE (NON-CHOME SURFACES) It takes very little time and effort to keep the griddle attractive and performing at top efficiency. If grease is permitted to accumulate, it will form a gummy cake and then carbonize into a hard substance which is extremely difficult to remove. - Page 6 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
- Page 7 NOTE: Wattage is 4.35 kw SINGLE PHASE NOMINAL AMPS PER LINE 3 PH. FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR per heated zone. See unit 208V 240V 208V-3 PHASE 240V-3PHASE AT LEAST 90°C (194°F). USE GAUGE SHOWN OR LARGER. 8.7 KW 8.7 KW 8.7 KW...
- Page 8 230/400 VOLT Y - 8.7 KW NOTE: Wattage is 4.35 FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR AT LEAST 90°C (194°F). NOM. AMPS USE #10 AWG OR LARGER. DO NOT CONNECT TO A SYSTEM OPERATING AT MORE THAN 250 kw per heated zone.
- Page 9 FOR SUPPLY CONNECTIONS USE COPPER WIRE ONLY, SUITABLE FOR 760T 230/400 VOLT Y - 21.75 KW NOM. AMPS AT LEAST 90°C (194°F). USE #8 AWG OR LARGER. DO NOT CONNECT PER LINE TO A SYSTEM OPERATING AT MORE THAN 250 VOLTS TO GROUND 31.5 31.5 31.5...
- Page 10 NAMEPLATE SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE STAR MANUFACTURING INTERNATIONAL, INC. MODEL 724TA, 736TA, 748TA, 760TA, 772TA SK2122 REV A. 8/02/2012...
-
Page 11: Parts List
PARTS LIST November 14, 2014, Rev. A Model: 724TA ULTRA-MAX ELECTRIC GRIDDLE Fig No. Part No. Description Application G5-824034 GRIDDLE PLATE ASSY 724 724TA G5-824035 GRIDDLE PLATE ASSY 724CHS 724TCHSA 2E-Z8356 3/4” PLASTIC END BUSHING 2E-Z8361 3/4”x 22 3/4 EMT TUBE 2E-Z8358 3/4”... - Page 12 PARTS LIST November 14, 2014, Rev. A Model: 736TA ULTRA-MAX ELECTRIC GRIDDLE Fig No. Part No. Description Application G5-836034 GRIDDLE PLATE ASSY 736 736TA G5-836035 GRIDDLE PLATE ASSY 736CHS 736TCHSA 2E-Z8356 3/4” PLASTIC END BUSHING 2E-Z8361 3/4”x 22 3/4 EMT TUBE 2E-Z8358 3/4”...
- Page 13 PARTS LIST November 14, 2014, Rev. A Model: 748TA ULTRA-MAX ELECTRIC GRIDDLE Fig No. Part No. Description Application G5-848034 GRIDDLE PLATE ASSY 748 748TA G5-848035 GRIDDLE PLATE ASSY 748CHS 748TCHSA 2E-Z8356 3/4” PLASTIC END BUSHING 2E-Z8361 3/4”x 22 3/4 EMT TUBE 2E-Z8358 3/4”...
- Page 14 PARTS LIST November 14, 2014, Rev. A Model: 760TA ULTRA-MAX ELECTRIC GRIDDLE Fig No. Part No. Description Application G5-860034 GRIDDLE PLATE ASSY 760 760TA G5-860035 GRIDDLE PLATE ASSY 760CHS 760TCHSA 208/240V 2E-Z8358 3/4” EMT CONNECTOR 230V 208/240V 2E-Z8361 3/4”x 22 3/4 EMT TUBE 230V 208/240V 2E-Z8356...
- Page 15 PARTS LIST November 14, 2014, Rev. A Model: 772TA ULTRA-MAX ELECTRIC GRIDDLE Fig No. Part No. Description Application G5-872034 GRIDDLE PLATE ASSY 772 772T G5-872035 GRIDDLE PLATE ASSY 772CHS 772TCHSA 2E-Z8356 3/4” PLASTIC END BUSHING 2E-Z8361 3/4”x 22 3/4 EMT TUBE 2E-Z8358 3/4”...
- Page 16 STAR INTERNATIONAL HOLDINGS INC. COMPANY Star - Holman - Lang - Wells - Bloomfield - Toastmaster 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (314) 678-6303 www.star-mfg.com...
