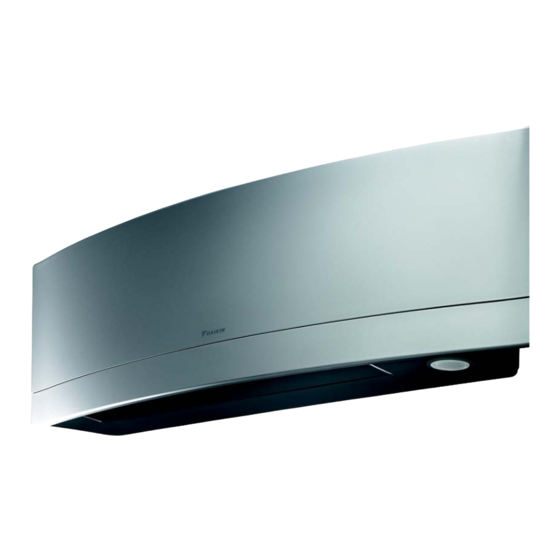

Summary of Contents for Daikin FTXG20LS
-
Page 1: Technical Data
Air Conditioning Technical Data Wall mounted unit EEDEN15-100 FTXG-LS, FTXG-LW... -
Page 3: Table Of Contents
• Indoor Unit • FTXG-LS, FTXG-LW TABLE OF CONTENTS FTXG-LS, FTXG-LW Features ............. 2 FTXG-LS . -
Page 4: Features
• Online controller (optional): control your indoor from any location with • Daikin Emura has been awarded with Reddot design award 2014 by an app, via your local network or internet an international jury, thanks to its excellent design •... -
Page 5: Ftxg-Lw
• Online controller (optional): control your indoor from any location with • Daikin Emura has been awarded with Reddot design award 2014 by an app, via your local network or internet an international jury, thanks to its excellent design •... -
Page 6: Specifications
• Indoor Unit • FTXG-LS, FTXG-LW Specifications 2-1 Technical Specifications FTXG20LS FTXG25LS FTXG35LS FTXG50LS FTXG20LW FTXG25LW FTXG35LW FTXG50LW Power input Cooling Nom. 0.023 (1) / 0.023 (2) / 0.033 (1) / 0.033 (2) / 0.023 (1) / 0.023 (2) / 0.033 (1) / 0.033 (2) /... -
Page 7: Electrical Specifications
• Indoor Unit • FTXG-LS, FTXG-LW Specifications 2-1 Technical Specifications FTXG20LS FTXG25LS FTXG35LS FTXG50LS FTXG20LW FTXG25LW FTXG35LW FTXG50LW Refrigerant Type R-410A Piping connections Liquid 6.35 12.7 12.7 Drain Heat insulation Both liquid and gas pipes Temperature control Microcomputer control Air direction control Right, Left, Horizontal, Downward Standard Accessories : Installation manual;... -
Page 8: Options
• Indoor Unit • FTXG-LS, FTXG-LW Options 3 - 1 Options • Split - Sky Air • FTXG-LS, FTXG-LW... -
Page 9: Dimensional Drawings
• Indoor Unit • FTXG-LS, FTXG-LW Dimensional drawings 4 - 1 Dimensional Drawings • Split - Sky Air • FTXG-LS, FTXG-LW... -
Page 10: Centre Of Gravity
• Indoor Unit • FTXG-LS, FTXG-LW Centre of gravity 5 - 1 Centre of Gravity • Split - Sky Air • FTXG-LS, FTXG-LW... -
Page 11: Piping Diagrams
• Indoor Unit • FTXG-LS, FTXG-LW Piping diagrams 6 - 1 Piping Diagrams 6.4CuT 6.4CuT 9.5CuT 9.5CuT • Split - Sky Air • FTXG-LS, FTXG-LW... - Page 12 • Indoor Unit • FTXG-LS, FTXG-LW Piping diagrams 6 - 1 Piping Diagrams • Split - Sky Air • FTXG-LS, FTXG-LW...
-
Page 13: Wiring Diagrams
• Indoor Unit • FTXG-LS, FTXG-LW Wiring diagrams 7 - 1 Wiring Diagrams - Single Phase • Split - Sky Air • FTXG-LS, FTXG-LW... -
Page 14: Sound Data
• Indoor Unit • FTXG-LS, FTXG-LW Sound data 8 - 1 Sound Pressure Spectrum &dy' >t ^ > > :/^ , :/^ , :/^ &dy' >t ^ > &dy' >s t &dy' >s ^ > :/^ , :/^ , :/^ •... - Page 15 • Indoor Unit • FTXG-LS, FTXG-LW Sound data 8 - 1 Sound Pressure Spectrum &dy' >t ^ > > :/^ , :/^ , :/^ &dy' >t ^ > > :/^ , :/^ , :/^ • Split - Sky Air • FTXG-LS, FTXG-LW...
- Page 17 All content is copy- righted by Daikin Europe N.V. Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende...
